Hisun HS700UTV-4 - Brake Master Cylinder

To Next Page

To Previous Page

CHASSIS

- 235-

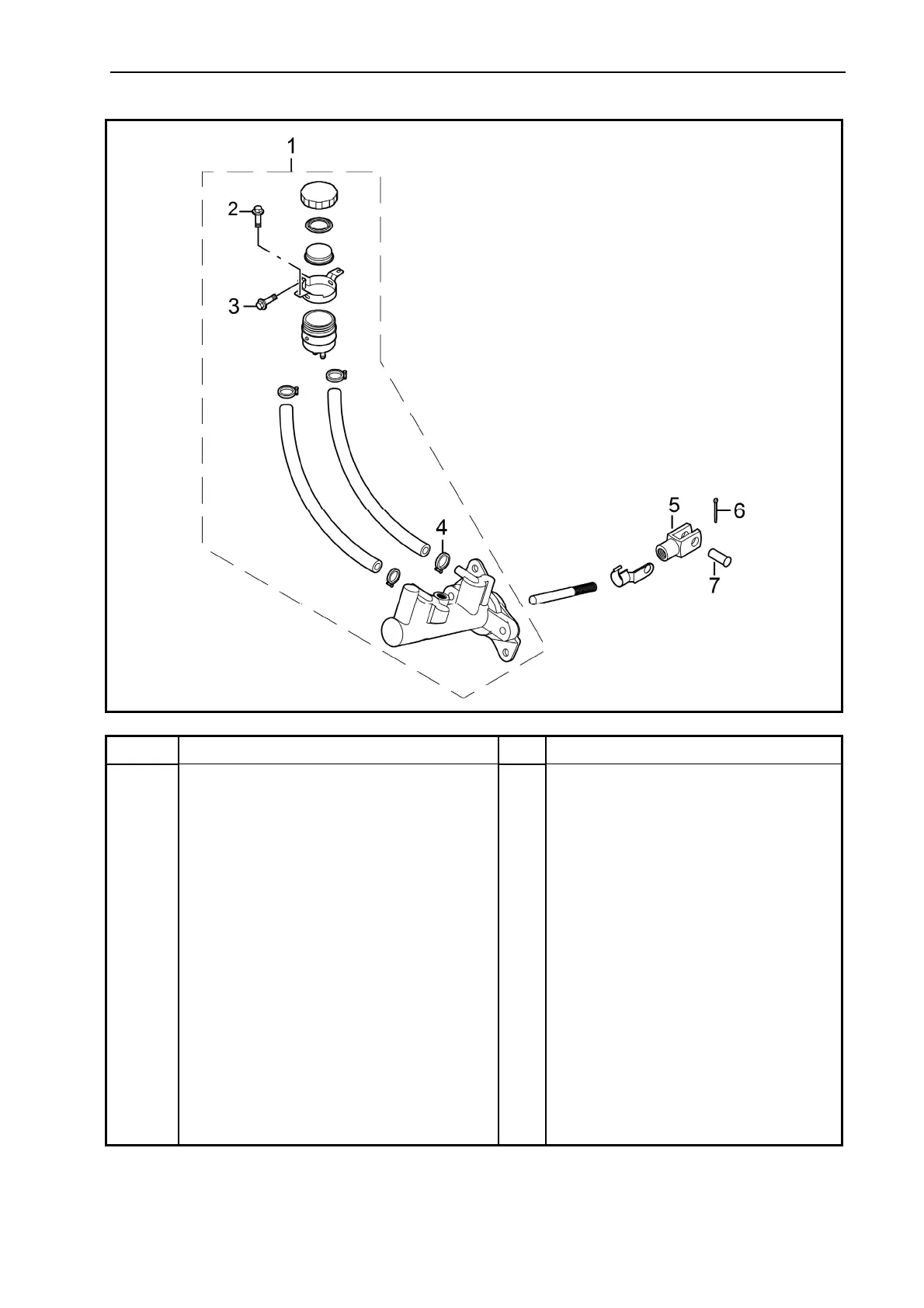

BRAKE MASTER CYLINDER

No. Part Name Qty Remarks

Removing the brake master cylinder

Brake fluid

1 Brake master cylinder

2 Hexagon flange bolt M6×16 3

3 Hexagon flange bolt M6×20 1

4 Oil pipe hoop 4

5 Connecting fork 1

6 Split pin 1

7 Pin, connecting fork 1
