CHASSIS
- 236-

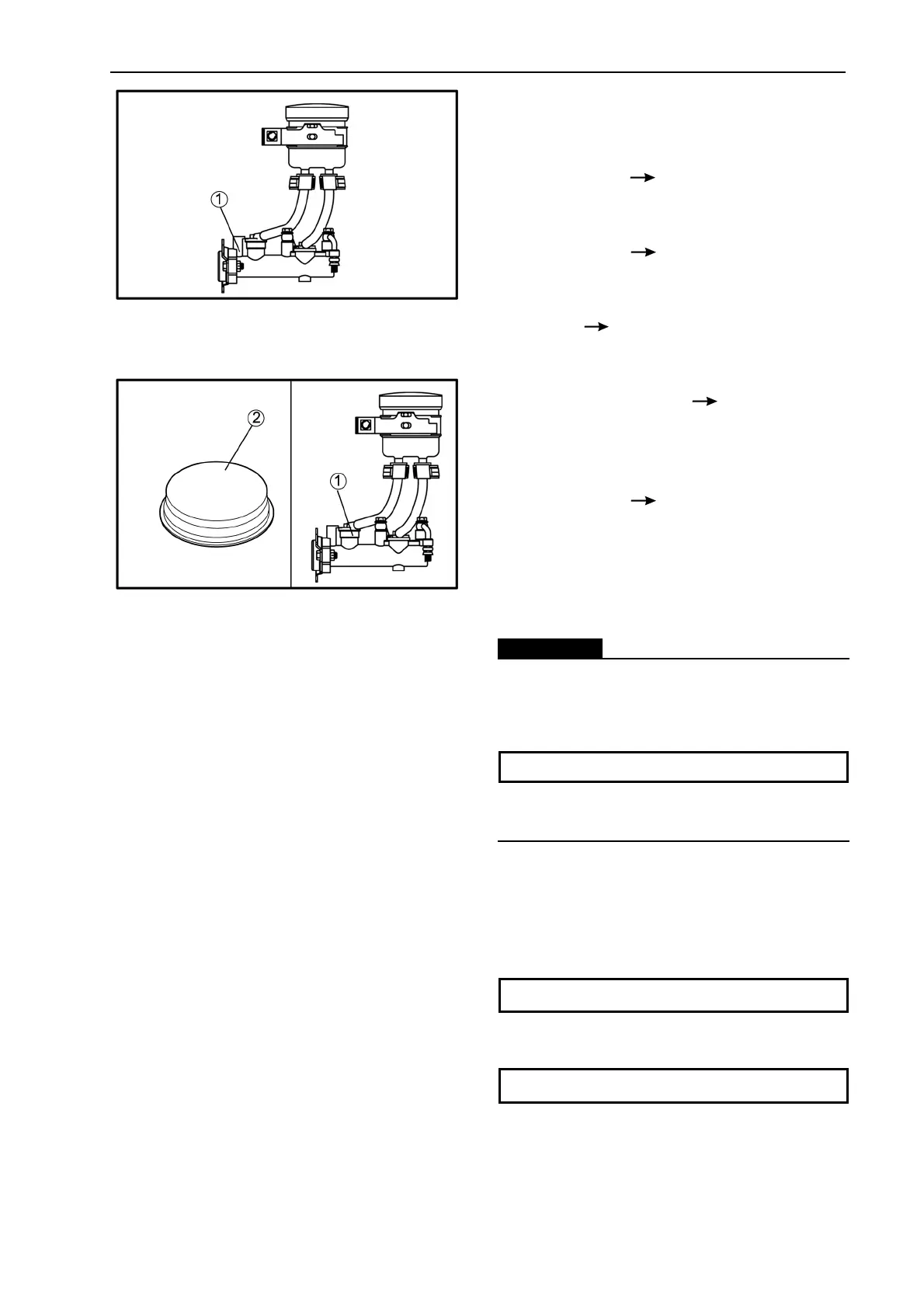

CHECKING THE MASTER CYLINDER
1. Check:
• brake master cylinder ①
Wear/scratches
Replace the brake master
cylinder assembly.
• brake master cylinder body
Cracks/damage
Replace.
• brake fluid delivery passage
(brake master cylinder body)
Blockage
Blow out with compressed air.
2. Check:
• brake master cylinder kit
Scratches/wear/damage
Replace as a set.
3. Check:
• brake fluid reservoir ①
• brake fluid reservoir diaphragm ②
Cracks/damage
Replace.
ASSEMBLING THE BRAKE MASTER
CYLINDER
1WARNING ：
• All internal brake components should be
cleaned and lubricated with new brake fluid
only before installation.
Must use DOT4 Brake Fluid
• Whenever a master cylinder is disassembled
replace the piston seals and dust seals.
INSTALLING THE BRAKE MASTER
CYLINDER
1. Install:
• brake master cylinder
16Nm (1.6 m · kg,11 ft · lb)
2. Install:
• brake pipe
19Nm (1.9 m · kg,13 ft · lb)
• copper washers
• brake hose
