MAINTENANCE AND ADJUSTMENT OF THE UTV
- 104-

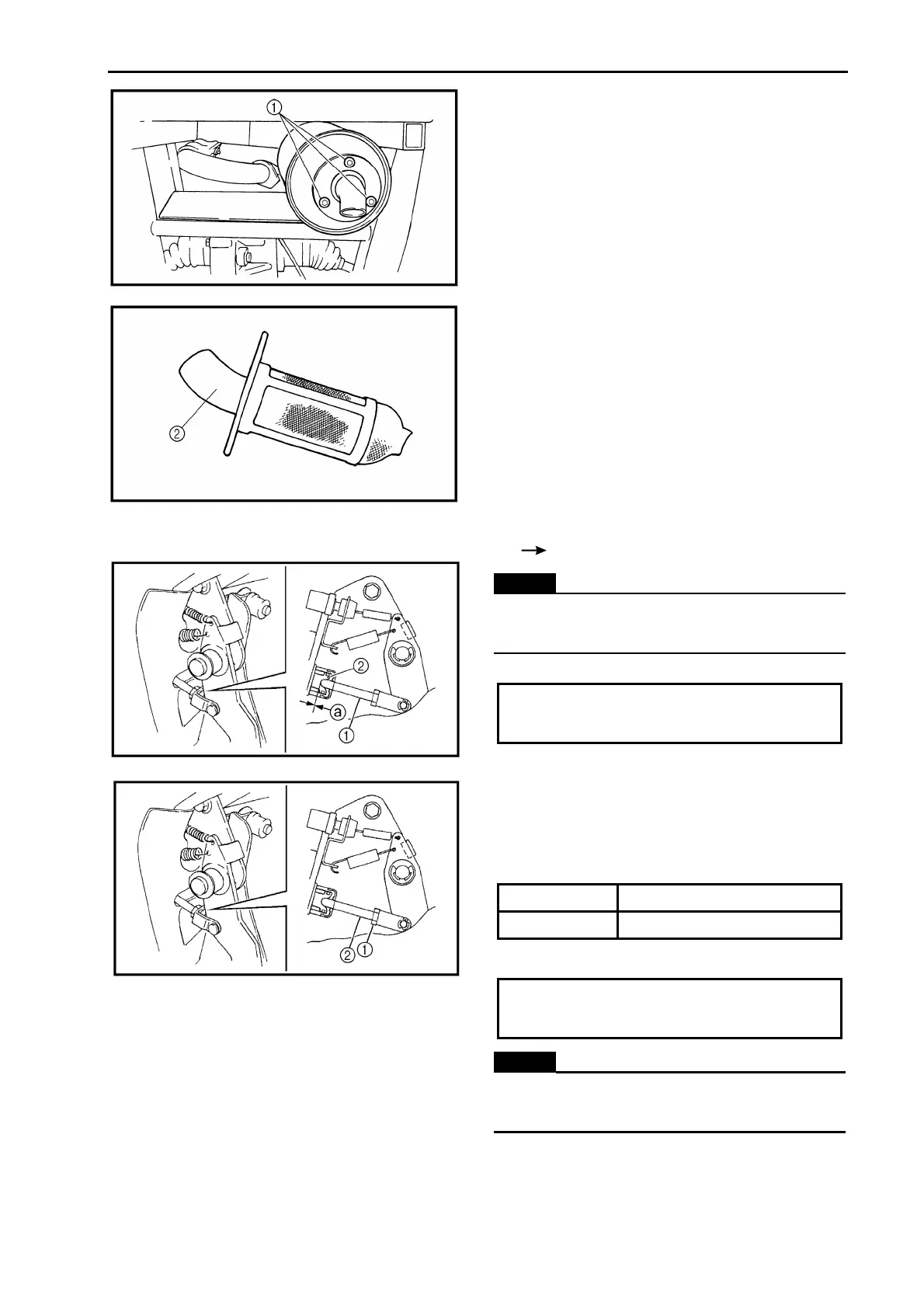

3. Remove:
·Remove the bolts .①
·Remove the tailpipe ② by pulling it out of th
e
muffler.
4. Install：
·Insert the tailpipe into the muffler and alig
n
②
the bolt holes.
·Insert the bolt ① and tighten it.
·Start the engine and rev it up approximatel
y
twenty times while momentarily creatin
g
exhaust system back pressure by blocking th
e
end of the muffler with a shop towel.
·Stop the engine and allow the exhaust pipe to
cool.
ADJUSTING THE BRAKE PEDAL
1. Check:
·brake pedal free play a Out of specification
adjust.
NOTE:
The end of the brake rod should lightly ①
contact the brake master cylinder ②
Brake pedal free play
0 mm (0.0 in)
2. Adjust：
·brake pedal free play
a. Loosen the locknut ①
b. Turn brake rod ② in or out until the correct
free play is obtained.
Turning in Free play is increased.
Turning out Free play is decreased.
c. Tighten the locknut to specification.
Locknut
17 Nm (1.7 m · kg, 12 ft · lb)
NOTE:
Make sure that there is no brake drag on the
front or rear wheels.
