Hisun HS700UTV-4 - Adjusting the Front Shock Absorbers; Adjusting the Front and Rear Shock Absorbers(Option 1)

MAINTENANCE AND ADJUSTMENT OF THE UTV
- 115-

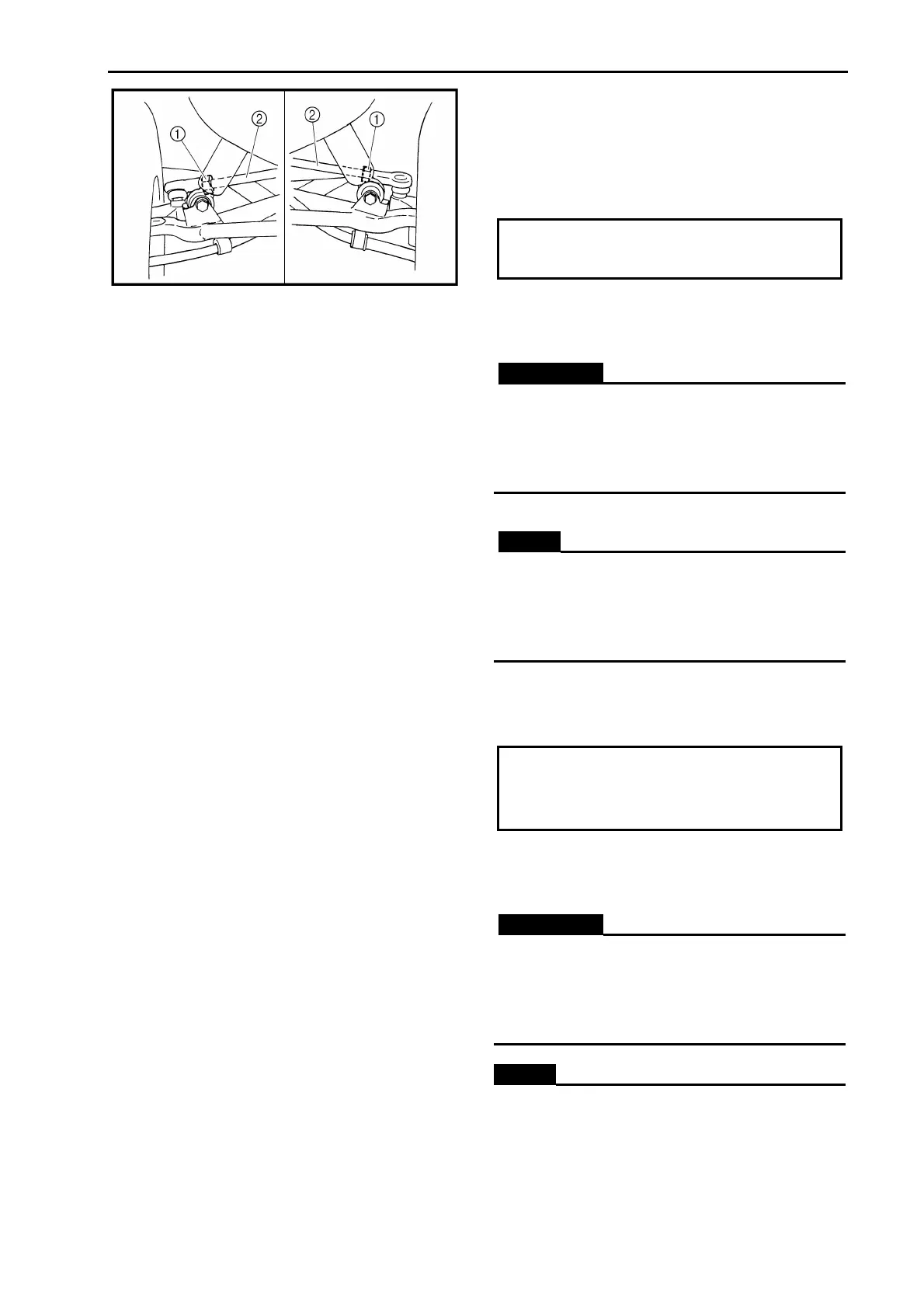

c. The same number of turns should be given to
both the right and left tie-rods until the ②
specified toe-in is obtained. This is to keep the
length of the rods the same.
d. Tighten the rod end locknut on each tie-rod.
Locknut (rod end)
40 Nm (4.0 m · kg, 29 ft · lb)
ADJUSTING THE FRONT SHOCK
ABSORBERS
WARNING :
Always adjust both shock absorber spring
preload to the same setting. Uneven
adjustment can cause poor handling and loss
of stability.
NOTE:
The spring preload of the shock absorbers
can be adjusted to suit the operator’s
preference, weight, and the operating
conditions.
1. Adjust:
• spring preload Turn the adjuster to ①
increase or decrease the spring preload.
Standard position: 2
Minimum (Soft) position: 1
Maximum (Hard) position: 5
ADJUSTING THE FRONT AND REAR SHOCK
ABSORBERS (Option 1)
WARNING :
Always adjust both shock absorber sprin
g
preload to the same setting. Uneven
adjustment can cause poor handling and loss
of stability.
NOTE:
The spring preload of the shock absorbers
can be adjusted to suit the operator’s
