ENGINE

- 191 -

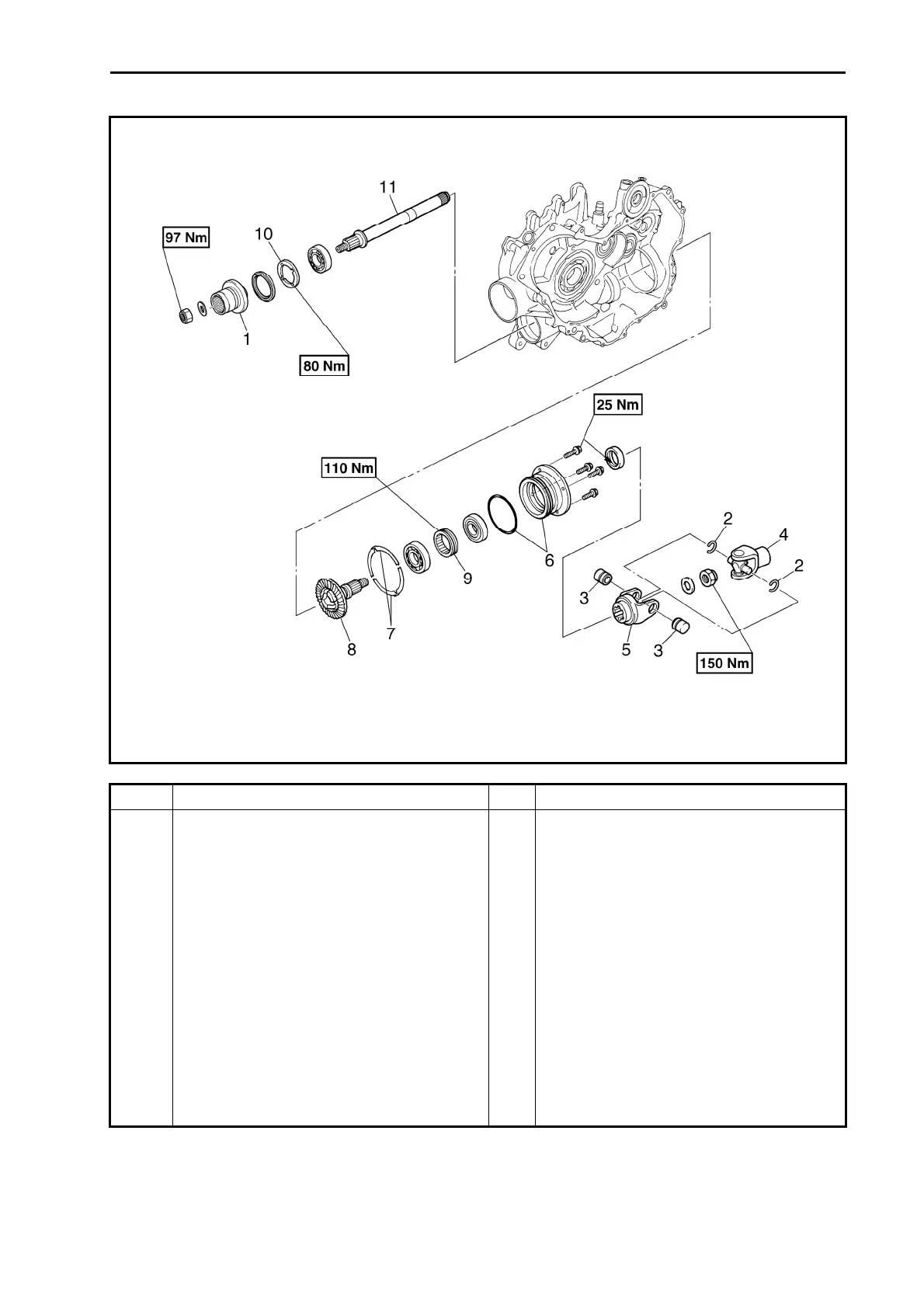

MIDDLE DRIVE SHAFT

No. Part Name Qty Remarks

Removing the middle drive shaft Remove the parts in the order listed.

Crankcase separation

1 Drive shaft coupling 1

2 Circlip 2

3 Bearing 2

4 Universal joint 1

5 Universal joint yoke 1

6 Bearing housing/O-ring 1/1

7 Shim 1

8 Middle driven pinion gear 1

For installation, reverse the removal

procedure.
