Hisun HS700UTV-4 - Front and Rear Brake Discs

To Next Page

To Previous Page

CHASSIS

- 216-

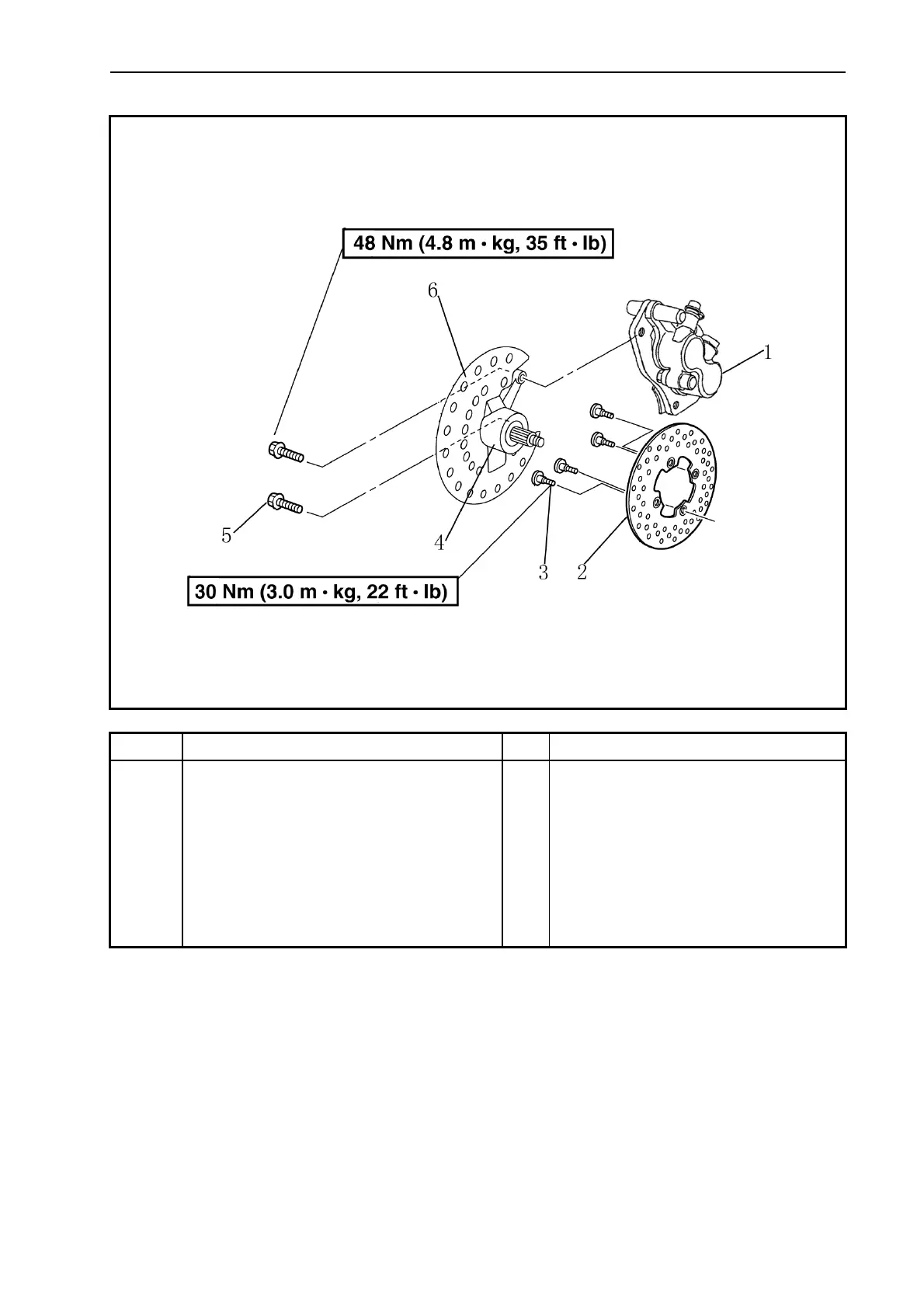

FRONT AND REAR BRAKE DISCS

No. Part Name

Qty Remarks

Removing the brake discs

1 Brake caliper assembly 1

2 Brake disc 1

3 Bolt 4

4 Turn join 4

5 Bolt 4

6 Brake disc guard 1
