CHECKING THE FRONT AND REAR BRAKE
DISC
1. Check:
• brake disc
Galling/damage
Replace.
2. Measure:
• brake disc deflection
Out of specification
Check the wheel
runout.
If wheel runout is within the limits, replace the
brake disc.
Brake disc maximum deflection
0.10 mm (0.004 in)

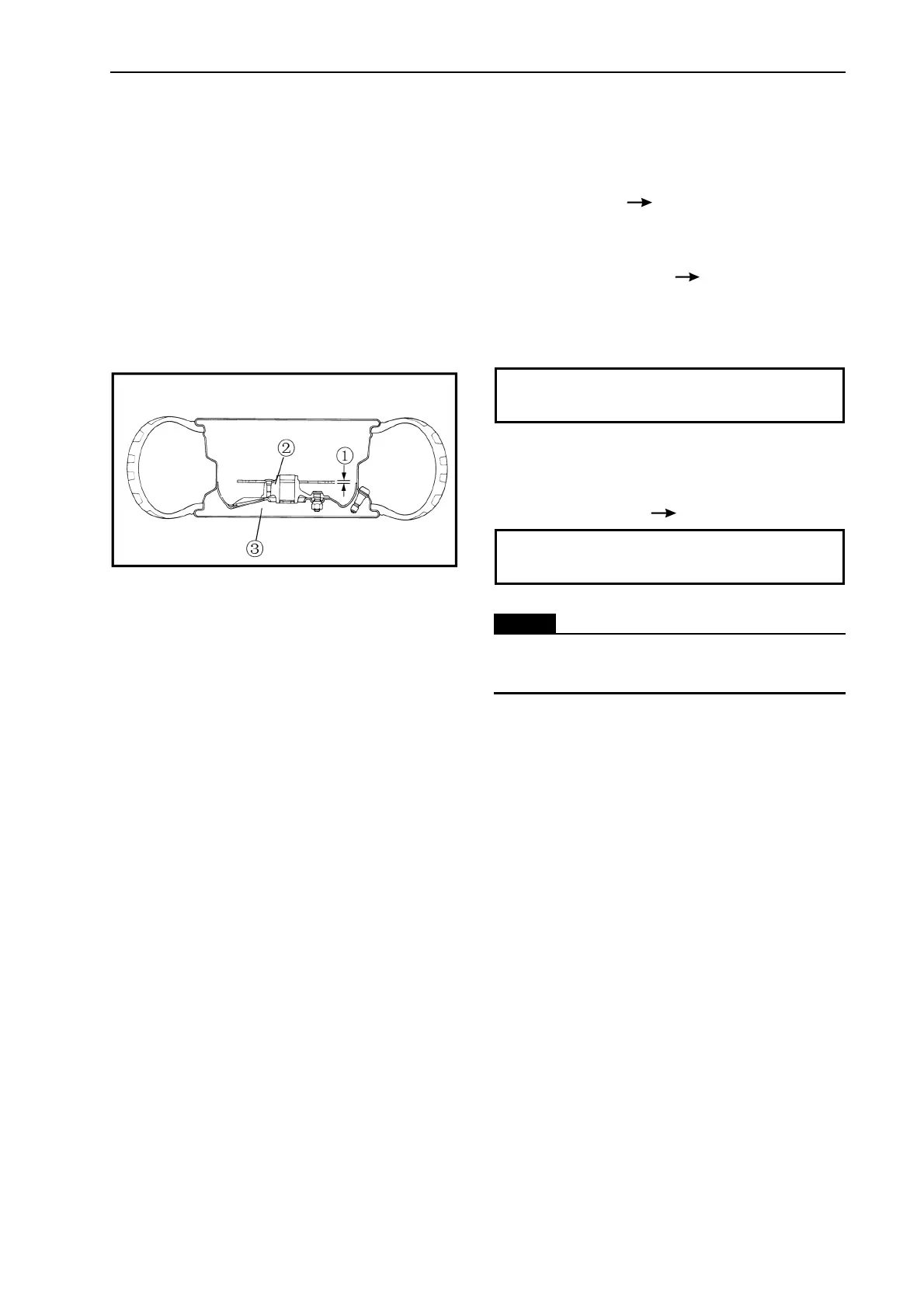

• brake disc thickness ①
• wheel hub ②
• wheel tyre ③
Out of specification
Replace.
Brake disc minimum thickness
3.0 mm (0.12 in)
1NOTE:
Apply the locking agent to the 30Nm bolt with
screw down.
