MAINTENANCE AND ADJUSTMENT OF THE UTV
- 86-
ENGINE
Adjusting the valve clearance
NOTE:
·The valve clearance must be adjusted when
the engine is cool to the touch.
·Adjust the valve clearance when the piston
is at the Top Dead Center TDC) on the
compression stroke.

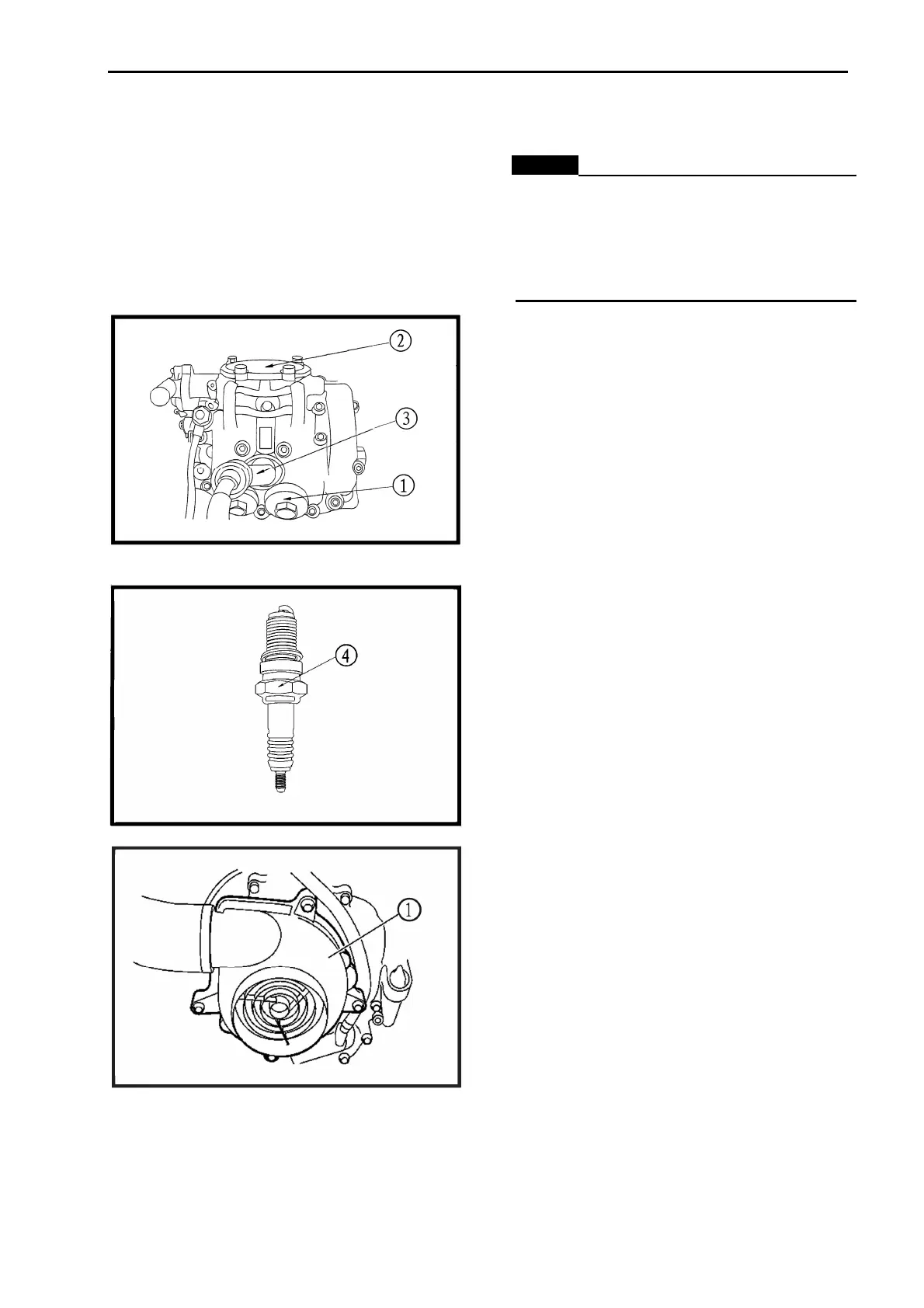

1. Remove following parts：
① Valve cover(intake)
② Valve cover(exhaust)
③ spark plug cap
④ spark plug
2. Remove the cooling fan：
Fan cover ①
