CHASSIS
- 281-
Rear Suspension and arm
CHECKING AND SERVICE OF REAR
SUSPENSION
1. It is similar to the front suspension ,Check i
there exists any distortion or crack on the
install axis of the shock absorber in which case
it must be replaced.
2. Inspect the rocker bushing and the middle
rubber separate is integrant.( According to the
front Suspension)
3. The cotter pin on the head of the install axis
which in the rear shock absorber whether is
credible.
1NOTE:
After disassemble the rear shock absorber,
check if there exists any distortion or crack
on the frame connection hole and the rea
shock absorber, if so, inform the special
serviceman to inspect and service first o
install the rear shock absorber on the frame
after instead.(Attention, the bolts must be the
special self-lock nut, the fastening torque
must be 45-55Nm)

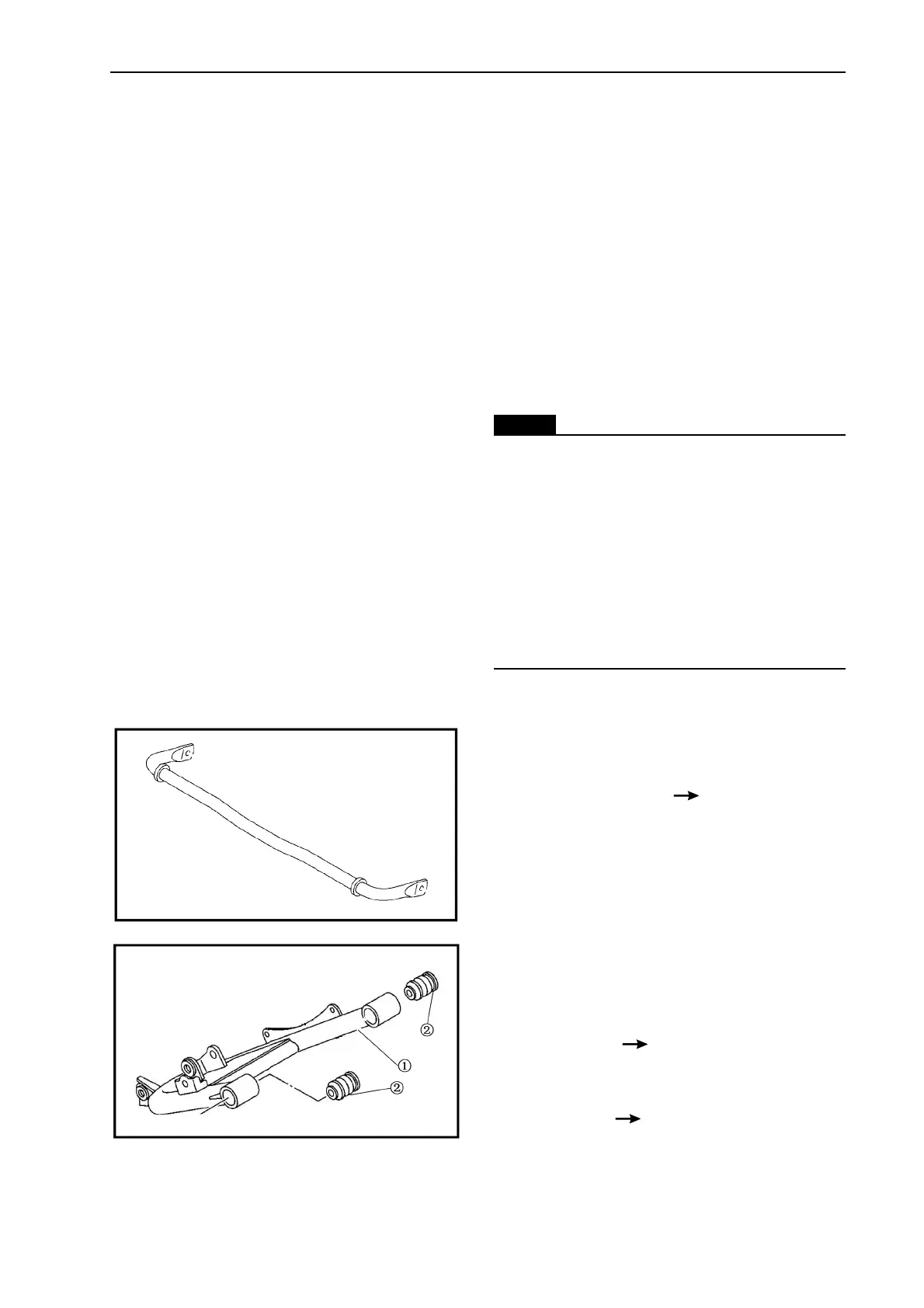

CHECKING THE STABILIZER
1. Check:
• stabilizer
Bends/cracks/damage
Replace.
CHECKING THE REAR ARMS
1. Check:
• rear arms ①
Bends/damage
Replace.
2. Check:
• Tube, rear rocker ②
Wear/damage
Replace.
