CHASSIS
- 282-

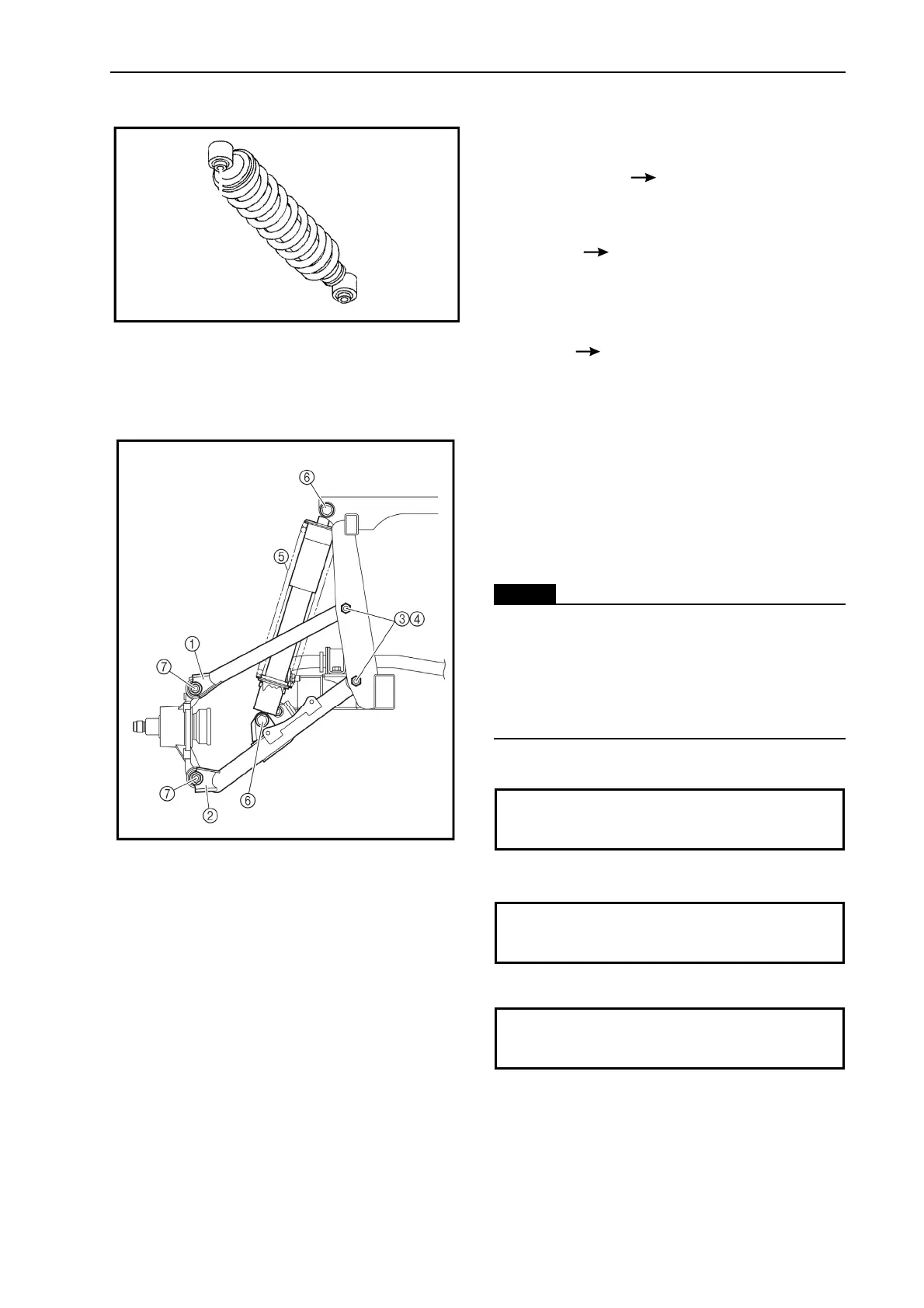

CHECKING THE REAR SHOCK ABSORBER
1. Check:
• shock absorber rod
Bends/damage
Replace the shock
absorber assembly.
• shock absorber assembly
Oil leaks
Replace the shock absorber
assembly.
• spring
Move the spring up and down.
Fatigue
Replace the shock absorber
assembly.
INSTALLING THE REAR ARMS AND REAR
SHOCK ABSORBER
1. Install:
• rear arms
• rear shock absorber
a. Install the rear upper arm ① and rear lowe
arm ②.
1NOTE:
•
Lubricate the bolts
③
with lithium
-soap-based
grease.
• Be sure to position the bolts ③ so that the
bolt head faces inward.
• Temporarily tighten the nuts ④.
b. Install the rear shock absorber ⑤.
Nut ⑥
45 Nm (4.5 m · kg, 32 ft · lb)
c. Install the rear knuckle.
Nut ⑦
45 Nm (4.5 m · kg, 32 ft · lb)
d. Tighten the nuts ④.
Nut ④
45 Nm (4.5 m · kg,32 ft · lb)
AIRBAG SHOCK ABSORBER
Refer to the previous 116 to 118 pages.
