CHASSIS

- 221-

No. Part Name Qty Remarks

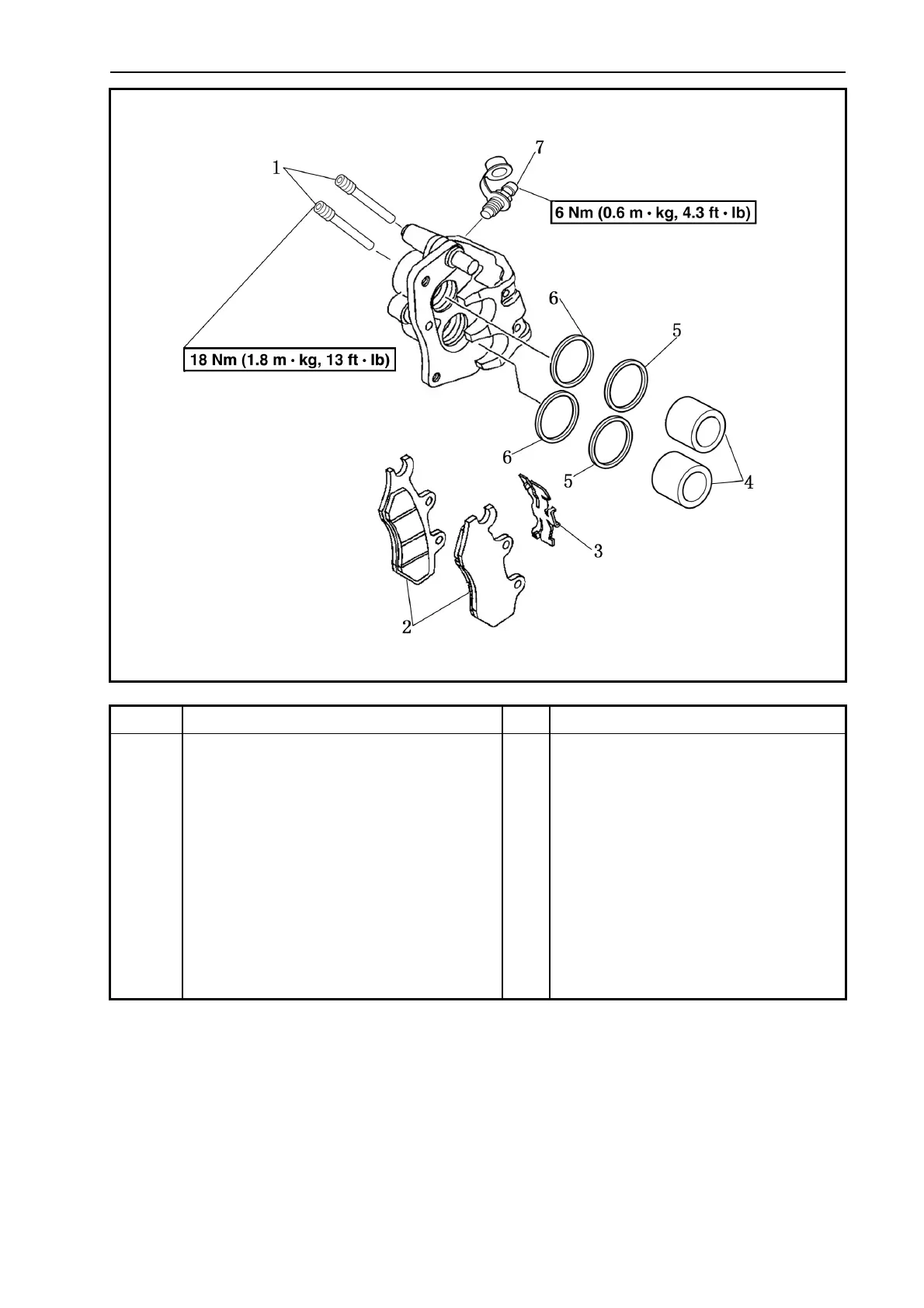

Disassembling the brake caliper Remove the parts in the order listed.

1 Brake pad holding bolt 2

2 Brake pad 2

3 Pad spring 1

4 Brake caliper piston 1

5 Dust seal 2

6 Caliper piston seal 2

7 Bleed screw 2 For assembly, reverse the disassembly

1 procedure.
