CHASSIS
- 219-

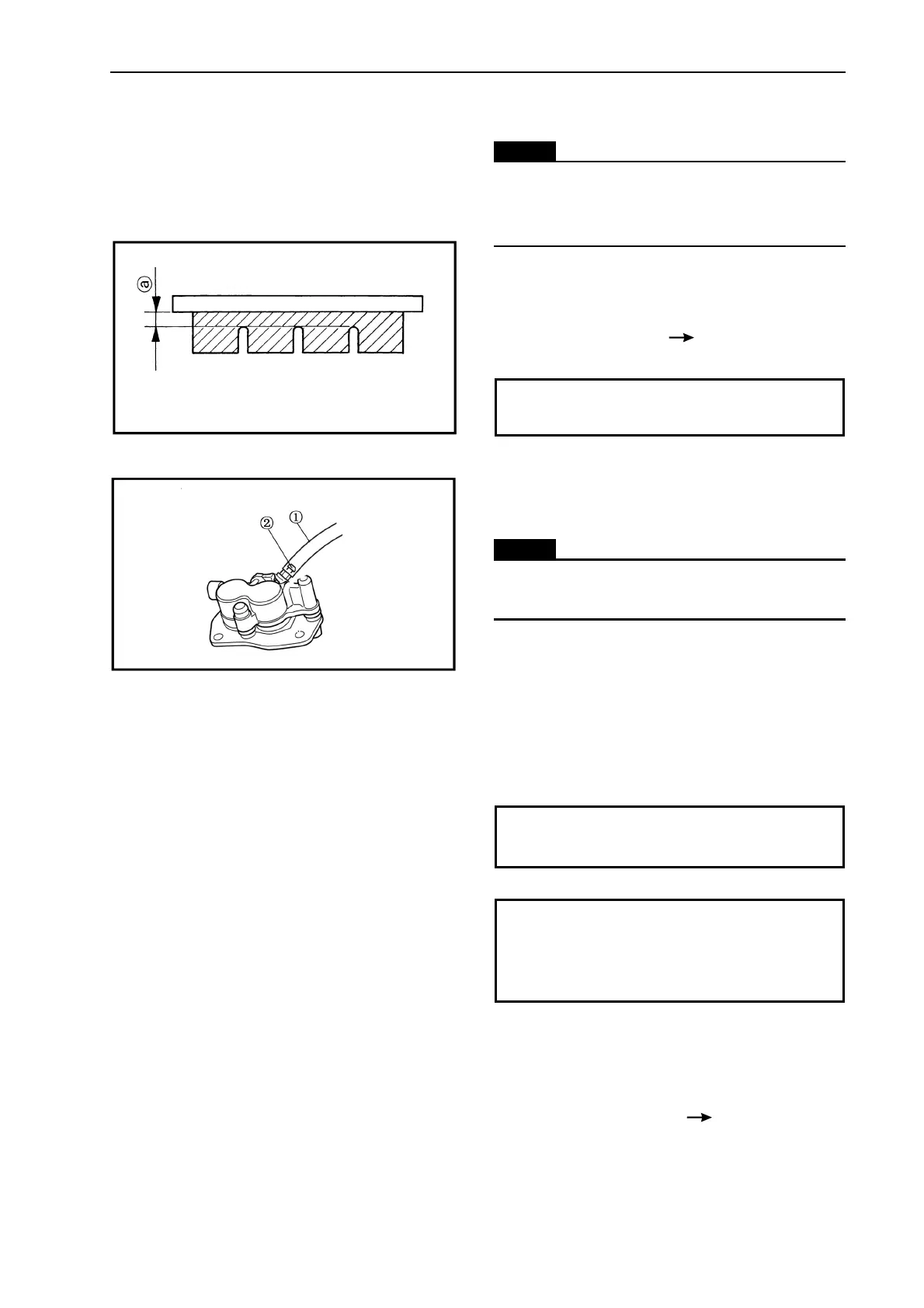

REPLACING THE FRONT AND REAR
BRAKE PADS
1NOTE:
It is not necessary to disassemble the brake
caliper and brake hose to replace the brake
pads.
1. Measure:
• brake pad wear limit ○
a
Out of specification
Replace the brake
pads as a set.
Brake pad wear limit
1.5 mm (0.06 in)
2. Install:
• brake pads
• brake pad spring
1NOTE:
Always install new brake pads and brake pad
spring as a set.
a. Connect a suitable hose ① tightly to the
brake caliper bleed nozzle ②. Put the other
end of this hose into an open container.
b. Loosen the brake caliper bleed screw and,
using a finger, push the caliper piston into the
brake caliper.
c. Tighten the brake caliper bleed screw.
Brake caliper bleed screw
6 Nm (0.6 m · kg, 4.3 ft · lb)
d. Install the retaining bolts and brake caliper.
Brake pad holding bolt
18 Nm (1.8 m · kg, 13 ft · lb)
Brake caliper mounting bolt
48 Nm (4.8 m · kg, 35 ft · lb)
3. Check:
• brake fluid level
4. Check:
• brake pedal operation
Soft or spongy feeling
Bleed the brake
system.
