ENGINE

- 156 -

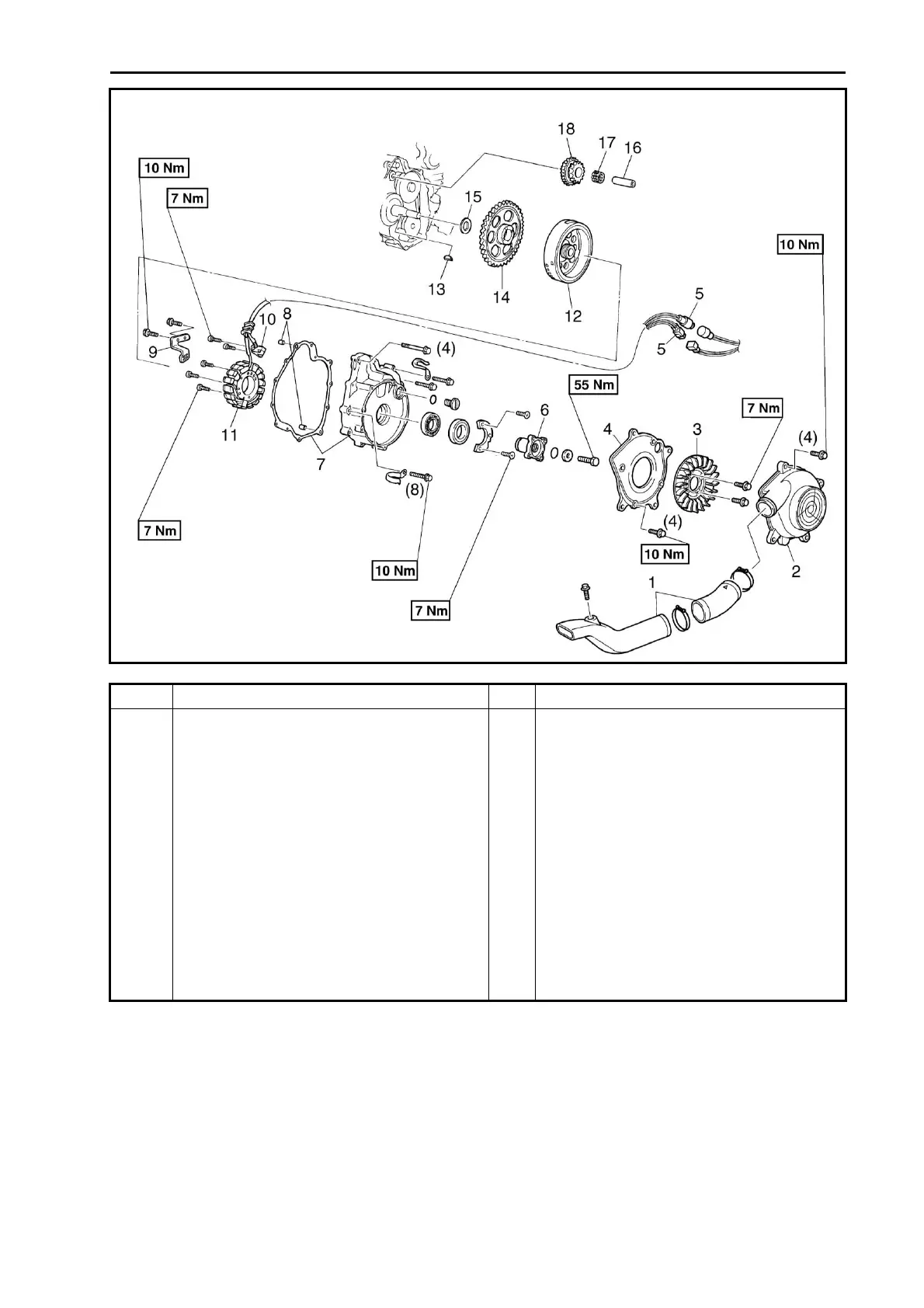

No. Part Name Qty Remarks

10 Pickup coil 1

11 Stator assembly 1

12 A.C. magneto rotor 1

13 Woodruff key 1

14 Starter wheel gear 1

15 Washer 1

16 Starter idle gear shaft 1

17 Bearing 1

18 Starter idle gear 1

For installation, reverse the removal

procedure.
