ENGINE
- 169 -
1NOTE:
• Tightening the bolts ① will push the
secondary sliding sheave away, causing the
gap between the secondary fixed and
sliding sheaves to widen.

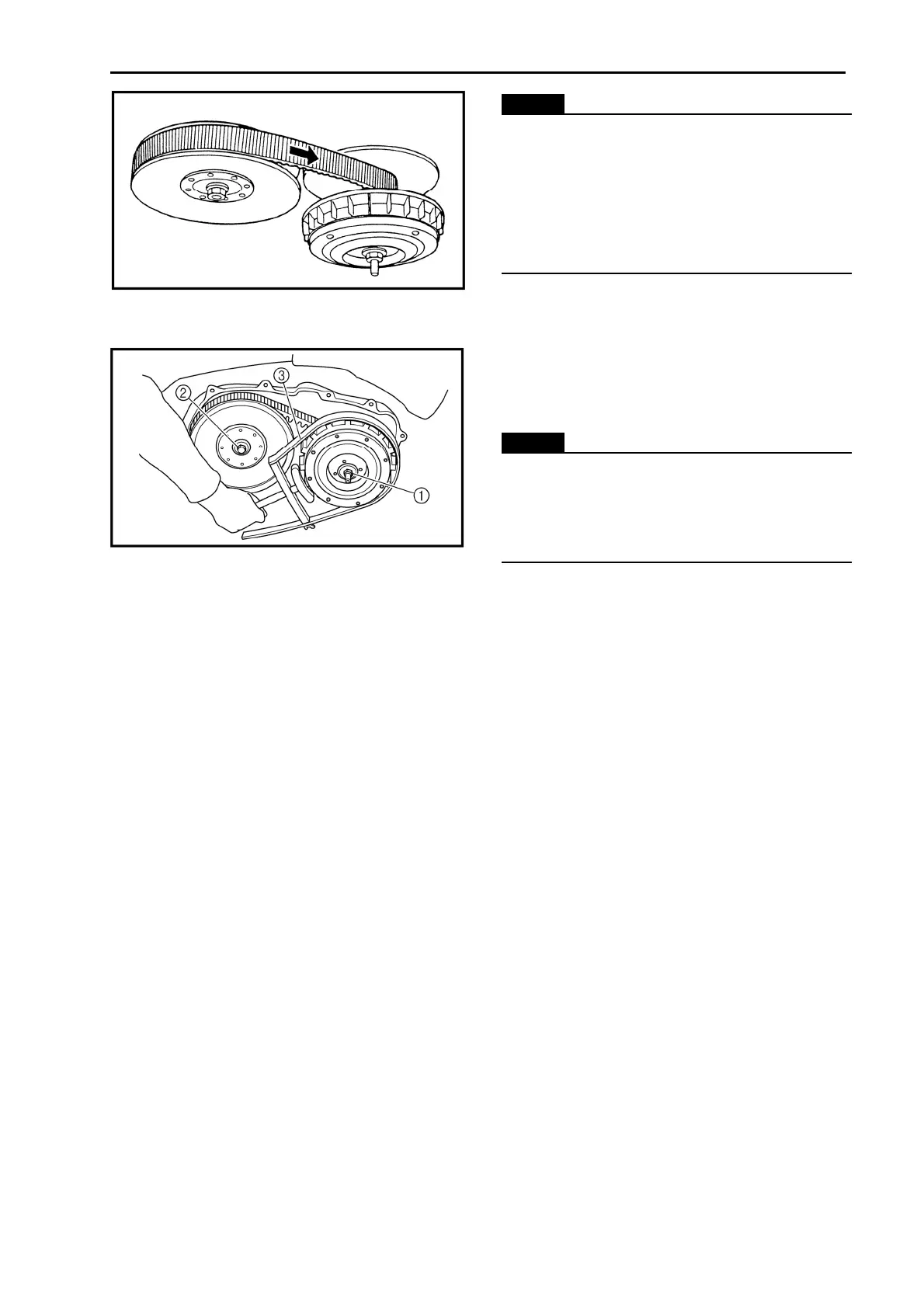

• Install the V-belt so that its arrow faces the
direction show in the illustration.
(2)Tighten:
• primary sheave nut ① (120Nm)
• secondary sheave nut ② (100Nm)
1NOTE:
• Use the sheave holder ③ to hold the
primary sheave.
• First, tighten the primary sheave nut ①,
then tighten the secondary sheave nut ②.
