ENGINE
- 194 -
3、INSTALL

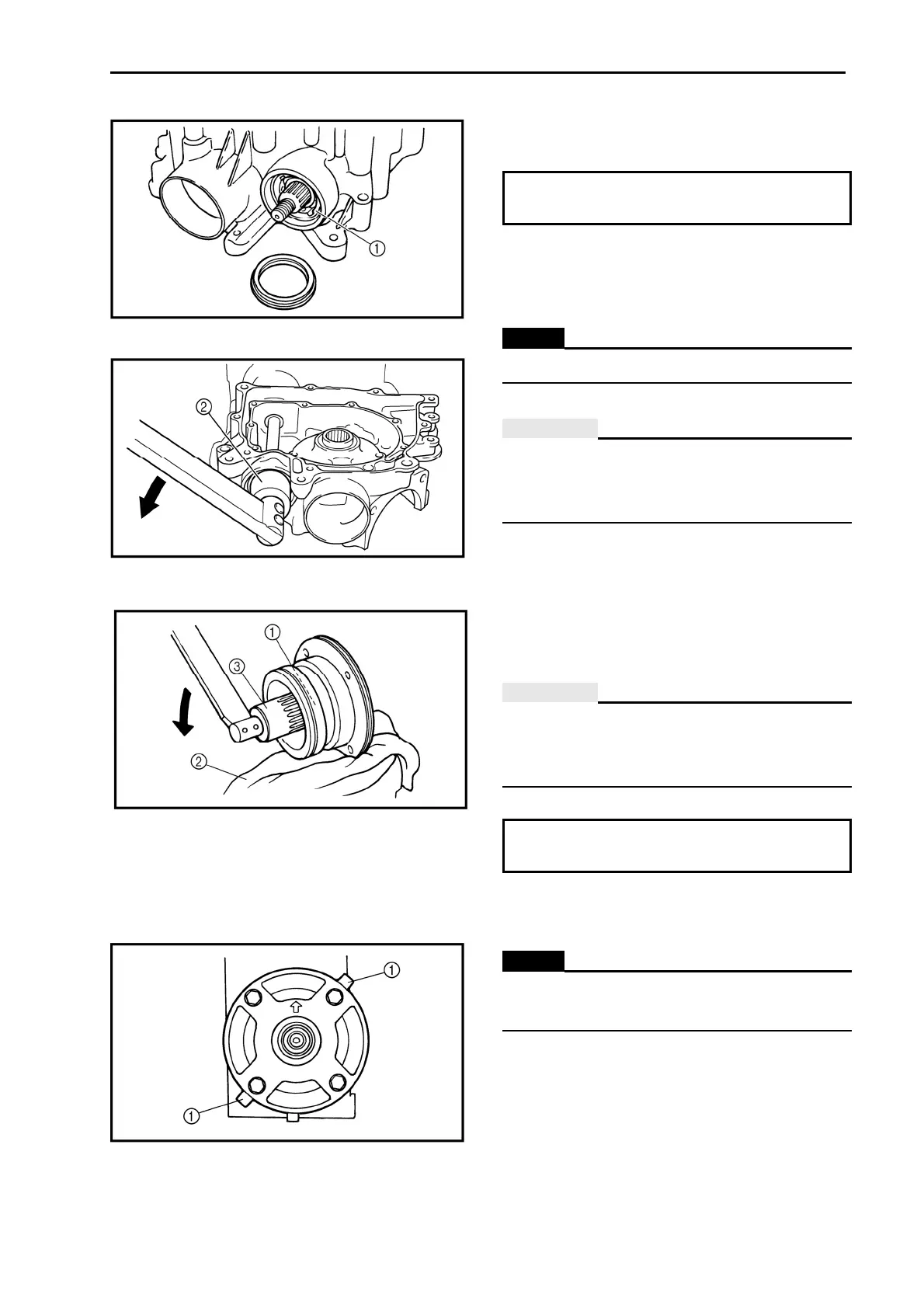

1). Installing the middle driven shaft
• bearing retainer ①
Bearing retainer
80 Nm
1NOTE:
Attach the ring nut wrench . ②
CAUTION:
The middle driven shaft bearing retainer has
left-handed threads. To tighten the retainer,
turn it counterclockwise.
• bearing retainer ①
a. Place a rag ② in the vise.
b. Secure the bearing housing edge in the vise.
c. Attach the bearing retainer wrench ③.
d. Tighten the bearing retainer.
CAUTION:
The middle driven shaft bearing retainer has
left-handed threads. To tighten the retainer,
turn it counterclockwise.
Bearing retainer
110Nm
• shims ①
• bearing housing
1NOTE:
Install the shims so that the tabs are
positioned as shown in the illustration.
