CHASSIS
- 208-
• Flange nut ④
Inspect fastens nut of the steering wheel
whether does have flaw and fissure , if it is,
must replace.
Check the internal spline between the
steering wheel and steering column whether
have damaged, if the attrition is serious, must
replace the steering wheel.
1NOTE:
The tolerance clearance between the internal
spline on the steering wheel and outer spline
on the steering column is smaller than
0.1mm.
WARNING
：
If find some problems in the check, it should
be service immediately to ensure the normal
work of the steering system.

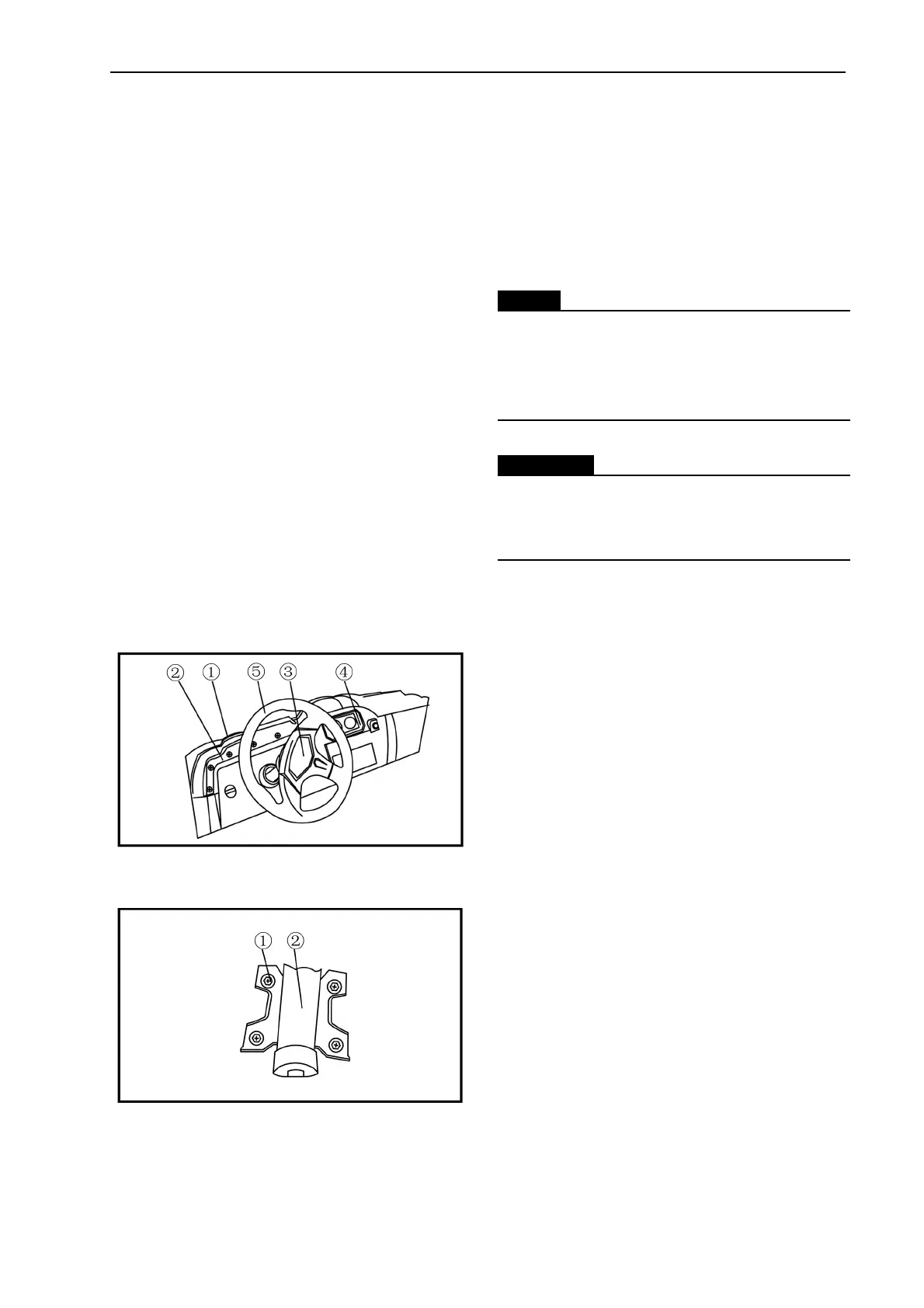

DIASSEMBLING THE STEERING COLUMN
PARTS
Remove:
• engine covers ①
• connection covers part ②
• steering wheel cover ③
• display board ④
• steering wheel ⑤
a. Takes down the parts of the front panel
(engine covers) and the connection covers
part and the display board and the steering
wheel center covers
b. Take down the steering wheel
• flange bolt ①
• steering column ②
c. Loose the bolt which is on the steering drive
axle, the top of spline, draws out the cross
gimbal.
d. Loose the fastening four piece M8×16 bolt ①
on the steering column, take down the steering
column from th② e frame.
