CHASSIS

- 226-

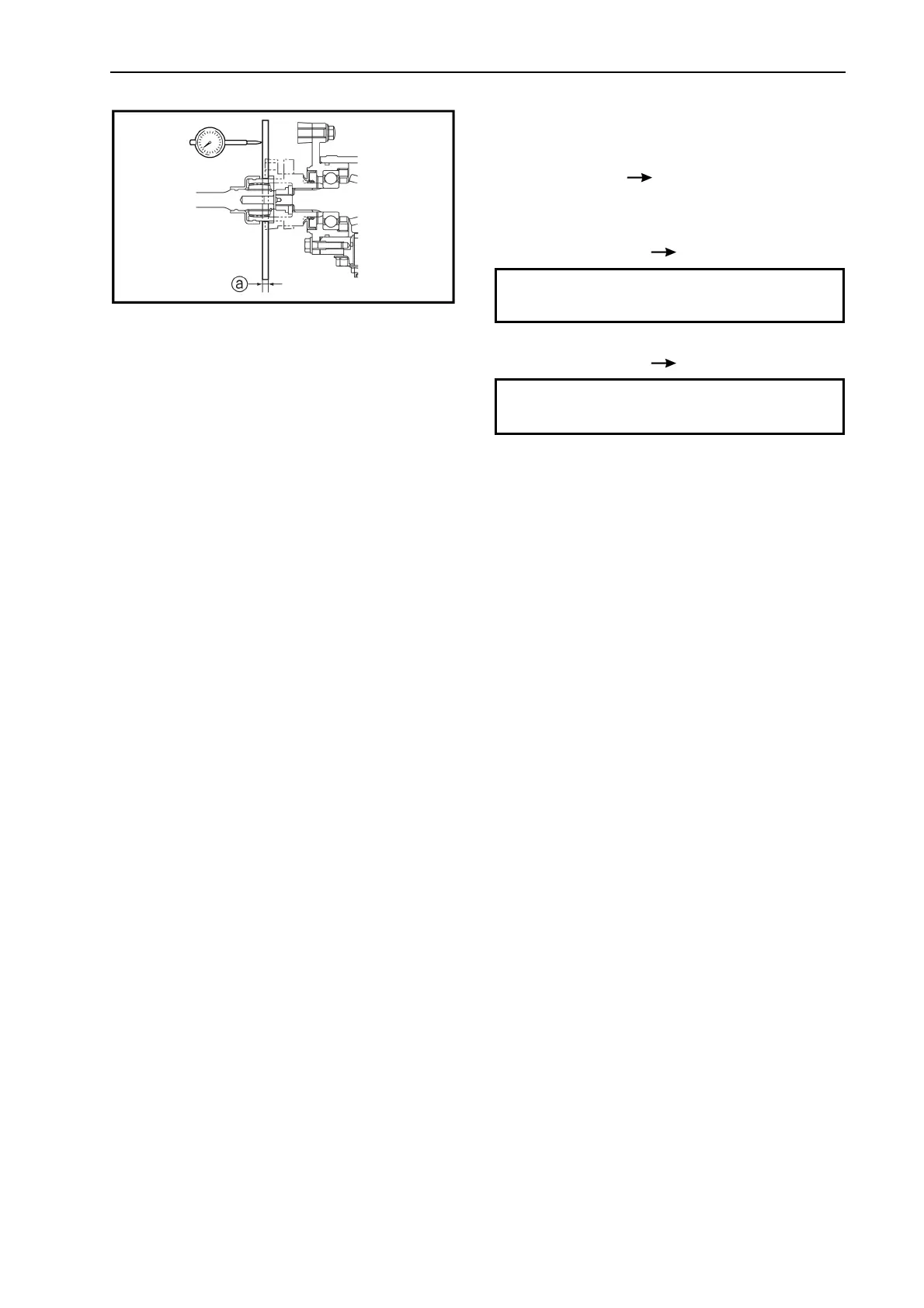

CHECKING THE PARKING BRAKE DISC

1. Check:

• brake disc

Galling/damage

Replace.

2. Measure:

• brake disc deflection

Out of specification

Replace.

Brake disc maximum deflection

0.10 mm (0.004 in)

• brake disc thickness ○

Out of specification

Replace.

Brake disc minimum thickness

4.5 mm (0.18 in)
