CHASSIS
- 230-

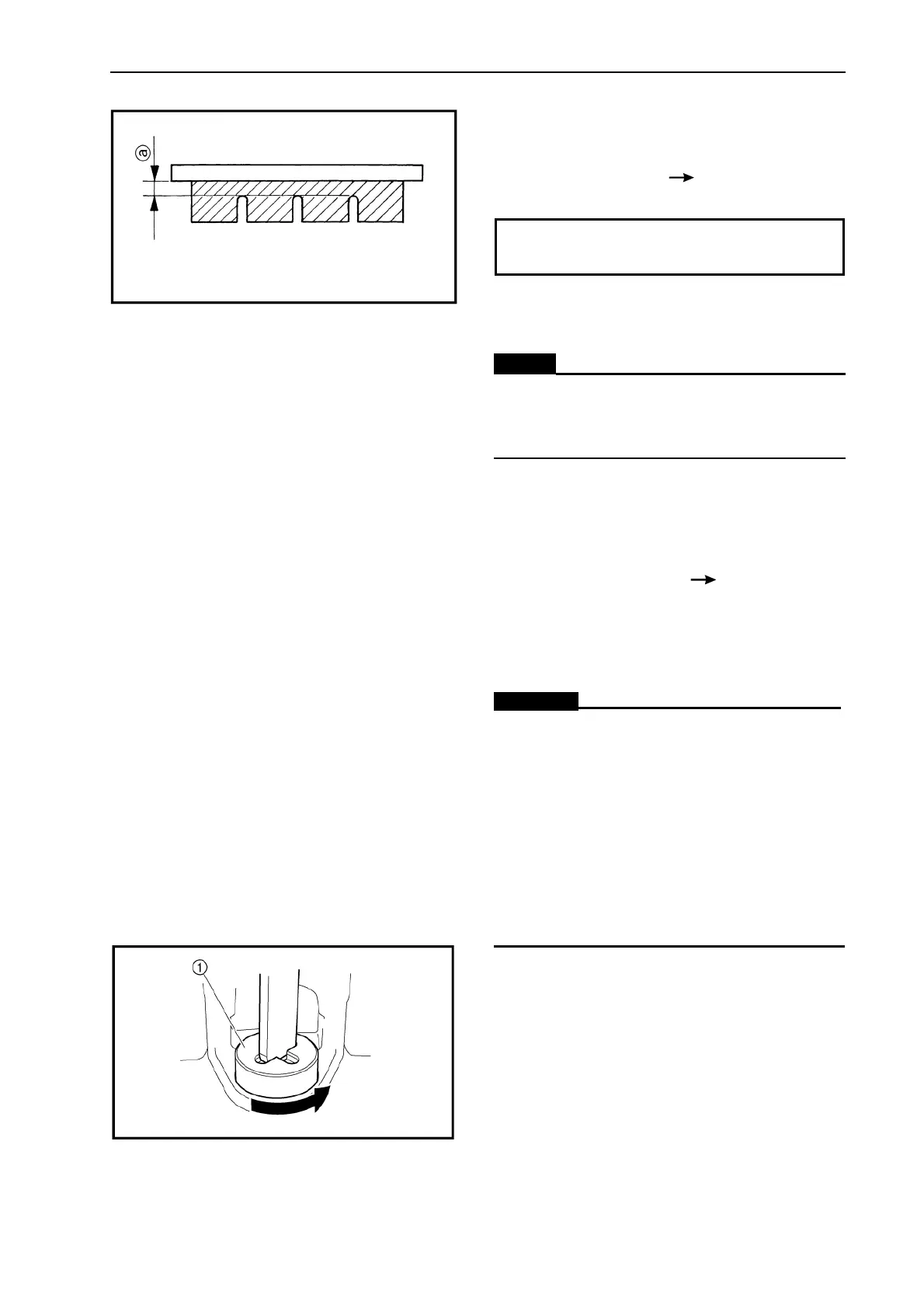

REPLACING THE PARKING BRAKE PADS
1. Measure:
• brake pad wear limit ○
a
Out of specification
Replace the brake
pads as a set.
Brake pad wear limit
1.5 mm (0.06 in)
2. Install:
• brake pads
• brake pad spring
1NOTE:
Always install new brake pads, new brake
pad shims, new insulators, and a new brake
pad spring as a set.
3. Check:
• brake fluid level
4. Check:
• brake pedal operation
Soft or spongy feeling
Bleed the brake
system.
DISASSEMBLING THE PARKING BRAKE
CALIPER
WARNING:
• Brake caliper is one of the most important
security components. Disassembly and
maintenance must have a rich experience
in technology and complete tool.
•Wrong disassembly and reassembly may
cause serious injury and even death.
Replace damaged brake caliper.
•If only replace the brake caliper of one side,
please check carefully whether the braking
force of right and left are balance and equal.
1. Remove:
• brake caliper piston ①
• dust seal ②
• caliper piston seal ③
a. Turn the brake caliper piston counterclockwise
to remove it.
To Next Page
