CHASSIS
- 232-

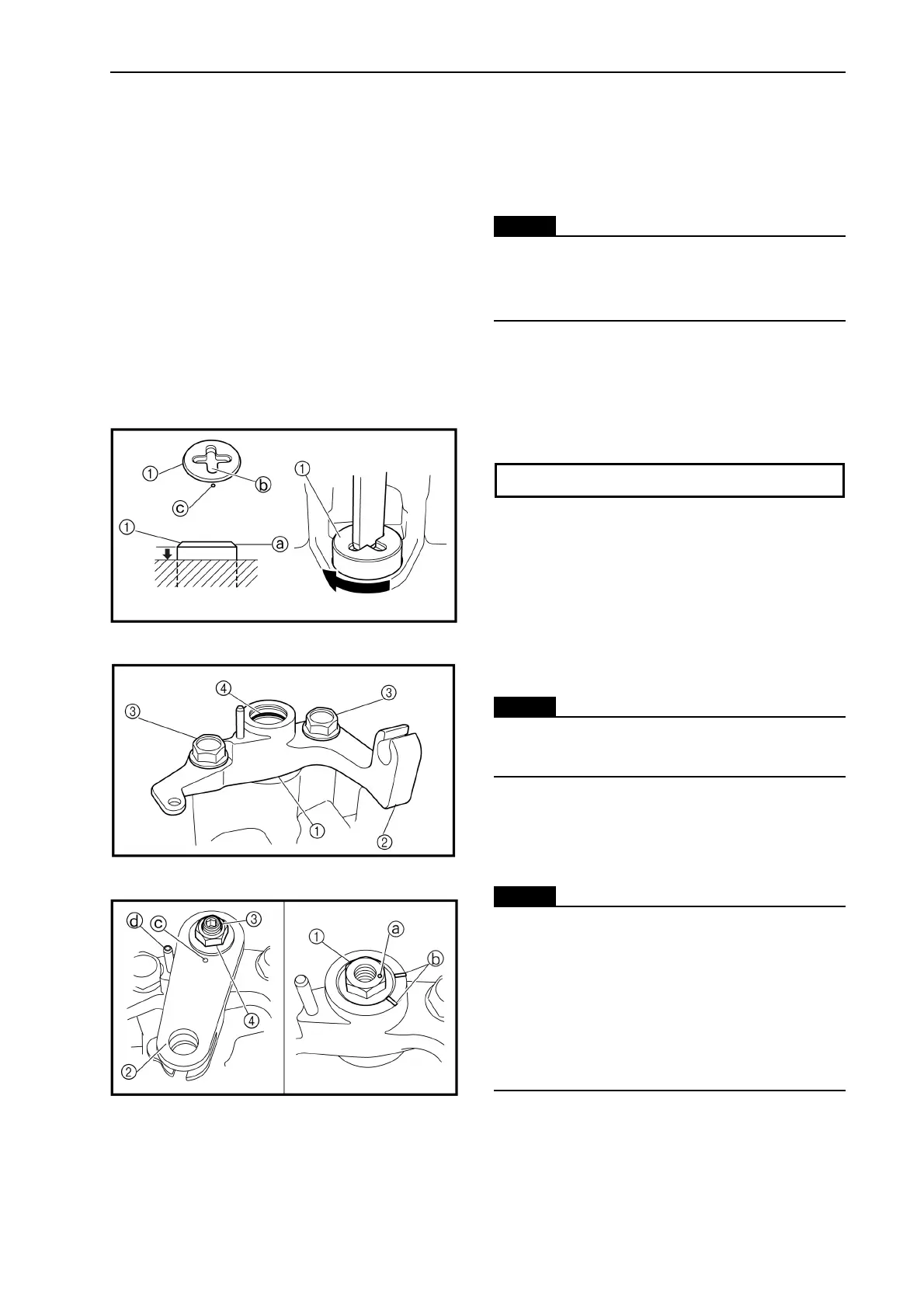

2. Install:
• brake caliper piston
Turn the brake caliper piston clockwise until
section a of the brake caliper piston is level
with the surface of the brake caliper body.
1NOTE:
Align an end ○
b
of the groove in the brake
caliper piston with the punch mark ○
c
on the
brake caliper body.
3. Install:
• gasket ①
• parking brake case ②
• parking brake case bolts ③
22Nm (2.2 m · kg,16 ft · lb)
• O-ring ④
4. Install:
• parking brake arm shaft ①
• parking brake arm ②
• set bolt ③
• parking brake arm nut ④
1NOTE:
Apply lithium-soap-based grease to the
parking brake arm shaft and set bolt.
a. Screw in the parking brake arm shaft
counterclockwise completely so that the punch
mark ⓐ on the parking brake arm shaft is
between the alignment marks ⓑ.
1NOTE:
The hole for the parking brake arm shaft has
multiple threads. If the punch mark ⓐ on the
parking brake arm shaft is not between the
alignment marks ⓑ when the parking brake
arm shaft is screwed in completely, remove
the parking brake arm shaft and screw it in
from a different starting position.
b. Turn the parking brake arm shaft approx-
imately 60° clockwise.
