ELECTRICAL COMPONENTS
- 309 -
Primary coil resistance
0.18 ~ 0.28 Ω at 20 °C (68 °F)

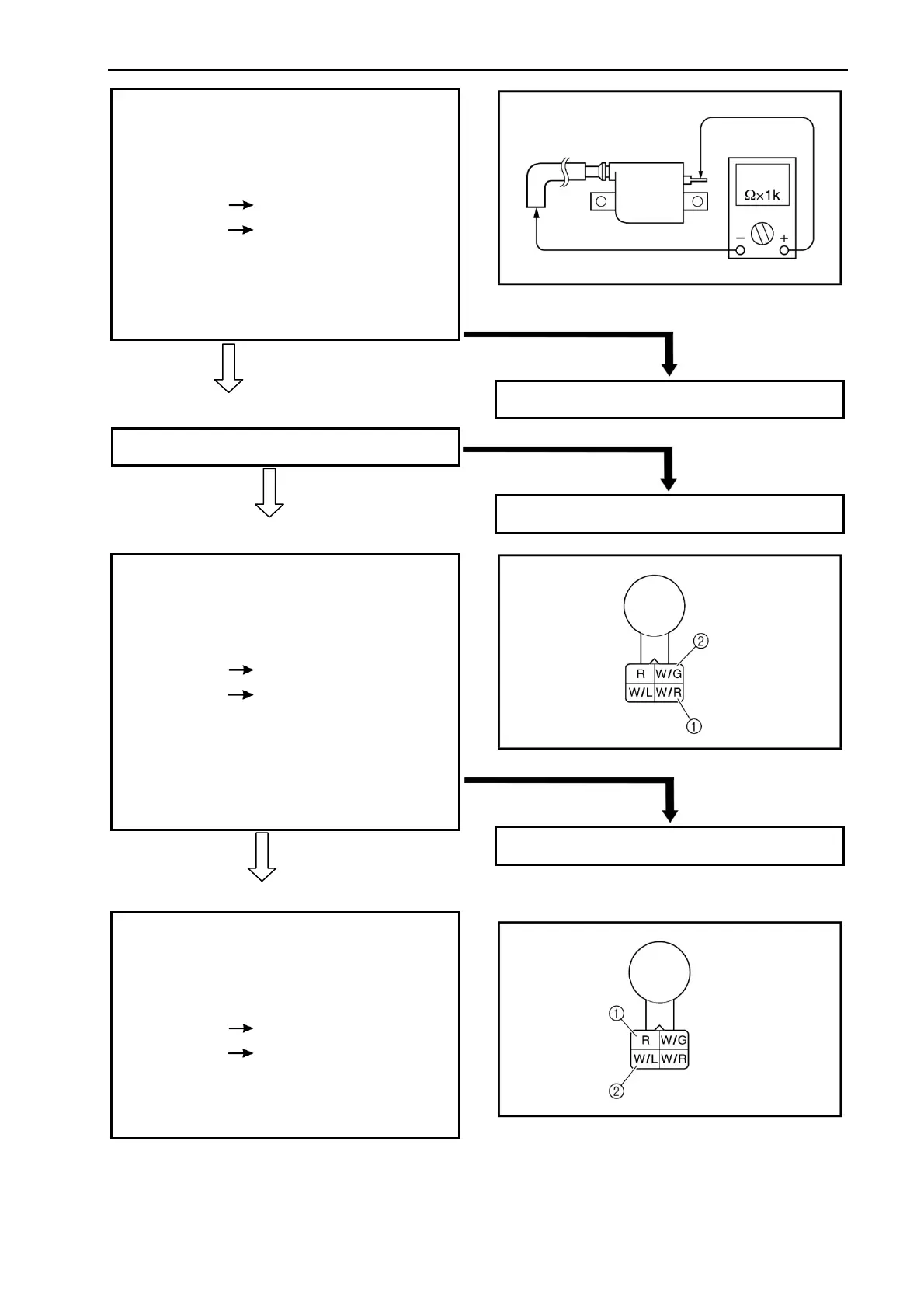

• Connect the pocket tester (Ω × 1k) to the
ignition coil.
Tester (+) lead
Orange lead terminal
Tester (–) lead
Spark plug lead
• Check that the secondary coil has the
specified resistance.
Secondary coil resistance
6.32 ~ 9.48 kΩ at 20 °C (68 °F)
BOTH MEET SPECIFICATION
7. Main switch
Refer to “CHECKING THE SWITCH”
CORRECT
8. Pickup coil resistance
• Disconnect the A.C. magneto coupler from the
wire harness.
• Connect the pocket tester (Ω × 100) to the
pickup coil terminal.
Tester (+) lead White/Red terminal ①
Tester (–) lead
White/Green terminal ②
• Check the pickup coil for the specified
resistance.
Pickup coil resistance
459 ~ 561 Ω at 20 °C (68 °F)
(White/Red – White/Green)
MEETS SPECIFICATION
9.
Rotor rotation direction detection coil resistance
• Disconnect the A.C. magneto coupler from the
wire harness.
• Connect the pocket tester (Ω × 1) to the rotor
rotation direction detection coil terminal.
Tester (+) lead
Red terminal ①
Tester (–) lead
White/Blue terminal ②
• Check the rotor rotation direction detection coil
for the specified resistance.
Rotor rotation direction detection coil
OUT OF SPECIFICATION
Replace the ignition coil.
INCORRECT
Replace the main switch.
OUT OF SPECIFICATION
Replace the pickup coil/stator assembly.
To Next Page
