ELECTRICAL COMPONENTS
- 313 -

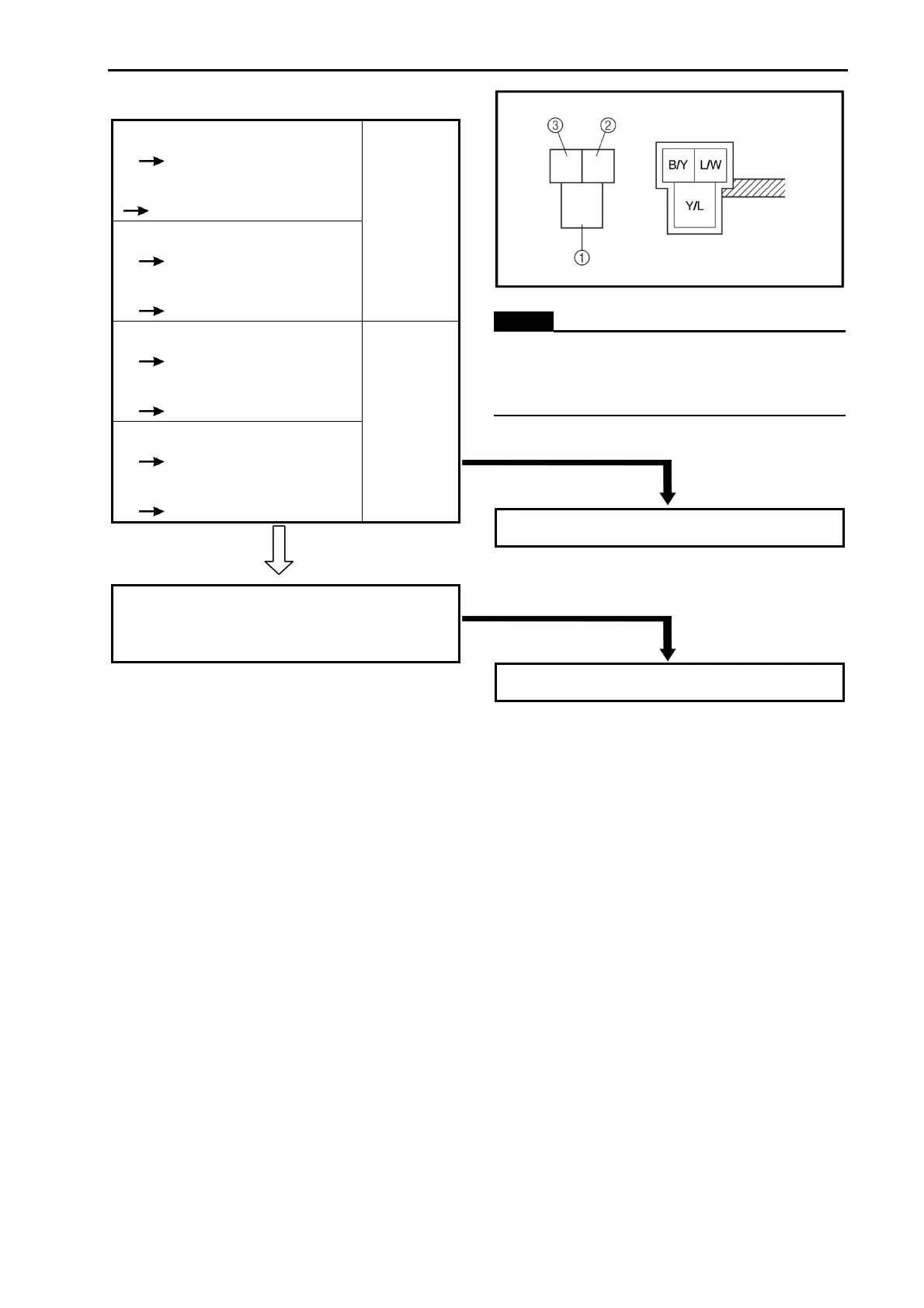

Tester (+) lead
Yellow/Blue terminal ①
Tester(–)lead
Black/Yellow terminal ②
Tester(+) lead
Yellow/Blue terminal ①
Tester (–) lead
Blue/White terminal ③
Continuity
Tester (+)lead
B lack/Yellow terminal ②
Tester (–) lead
Yellow/Blue terminal ①
Tester(+) lead
Blue/White terminal ③
Tester(–)lead
Yellow/Blue terminal ①
NO
Continuity
CORRECT
9. Wiring connection
• Check the connections of the entire starting
system. Refer to “CIRCUIT DIAGRAM”.
1NOTE:
When you switch the tester’s positive and
negative probes, the readings in the left chart
will be reversed.
INCORRECT
Replace the diode 1.
POOR CONNECTION
Properly connect the starting system.
