ELECTRICAL COMPONENTS
- 329 -

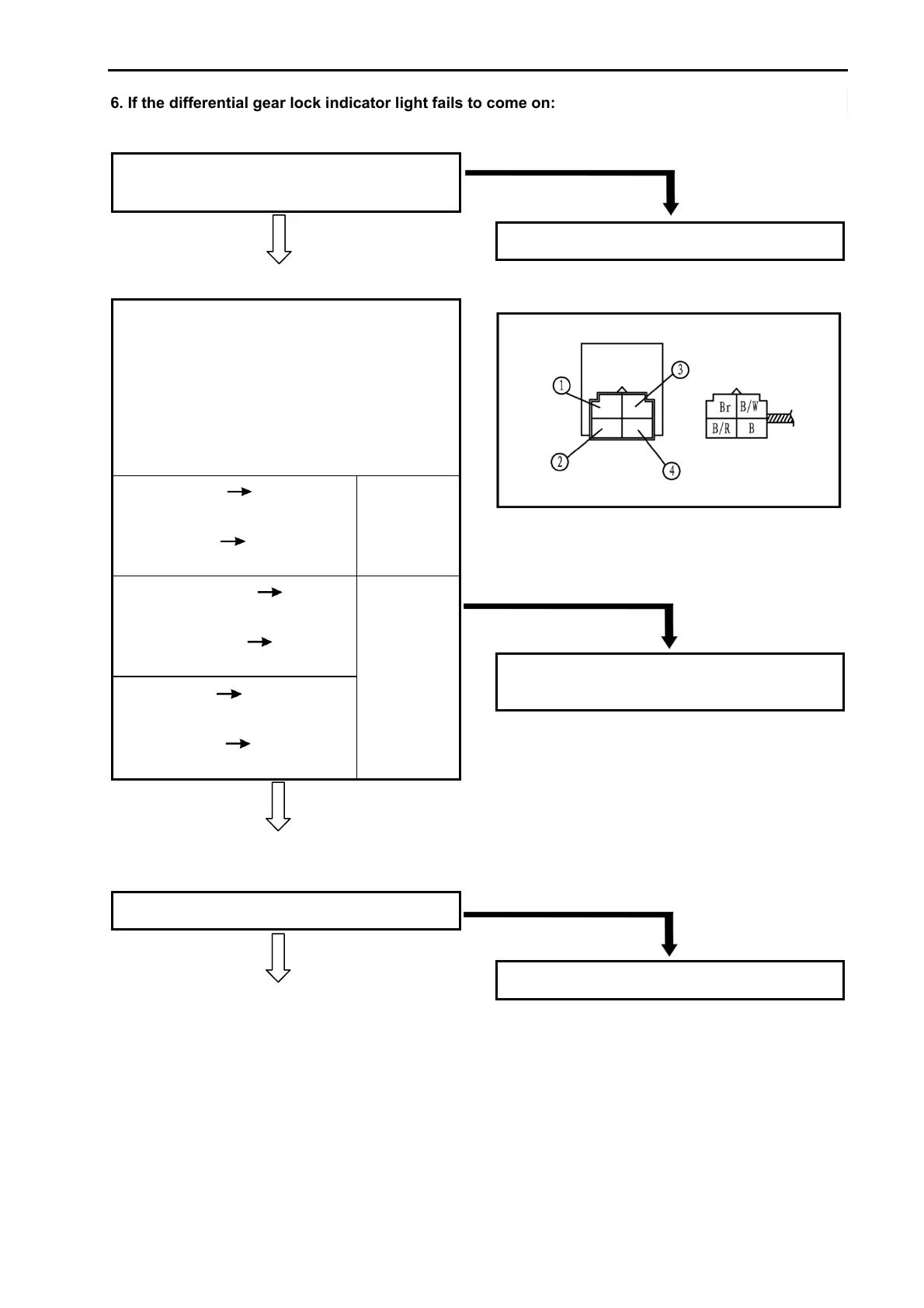

6. If the differential gear lock indicator light fails to come on:
(1). Bulb and bulb socket
• Check the bulb and bulb socket for continuity.
CONTINUITY
(2). Differential gear lock indicator light relay
• Remove the differential gear lock indicator light
relay from the wire harness.
• Connect the pocket tester (Ω × 1) and the
battery (12 V) to the differential gear lock
indicator light relay terminals.
• Check the differential gear lock indicator light
relay for continuity as follows.
Tester
(+)
lead Black/White
terminal ①
Tester(–)lead
Black
Terminal ②
Continuity
Battery(+)terminal Brown
terminal ③
Battery (–)terminal Black/red
Terminal ④
Tester
(–)
lead Black/
White
terminal ①
Tester(+) lead
Black
terminal ②
No
continuity
CONTINUITY
(3). Four-wheel drive switch
Refer to “CHECKING THE SWITCH”.
CONTINUITY
NO CONTINUITY
Replace the bulb and/or bulb socket.
NO CONTINUITY
Replace the differential gear lock indicator light
relay.
NO CONTINUITY
Replace the gear motor.
To Next Page
