HITEC Aurora 9X - Page 19

9 CHANNEL 2.4GHz AIRCRAFT COMPUTER RADIO SYSTEM
Hitec 2.4GHz Maxima Series Receiver

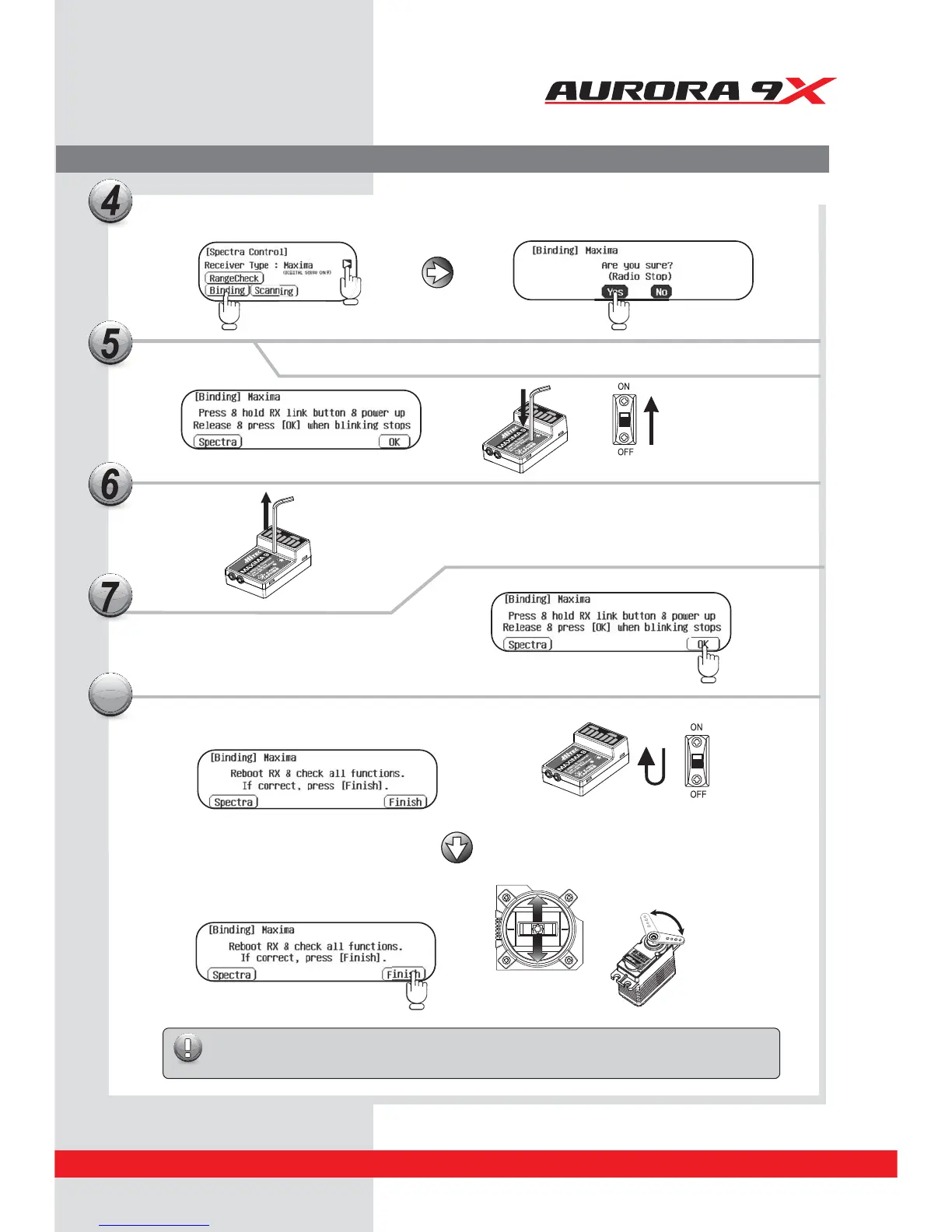

Press and hold the link button on the Receiver and turn on the power.
Release the link button.
Both RED and BLUE LEDs will be blinking rapidly to nd the transmitter's signal.
Turn the power to the receiver o, then back on. Check for a solid blue LED light.
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
BAT/9
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
BAT/9
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
BAT/9
Caution
If all functions work well press the (Finish) icon on the screen to nish binding.
If all functions “Do not” work well, Please go back to step “6” and repeat the binding again
Good work
Control Check
8
Touch the “arrow” to select the type of receiver you wish to bind to, then touch “Binding” icon and then touch “Yes” for Binding.
When the LED stops blinking, press OK. The blue LED will glow solid.
19
