E1 Series Servo Drive Thunder Software Operation Manual Perform Test Run
HIWIN MIKROSYSTEM CORP. 5-13

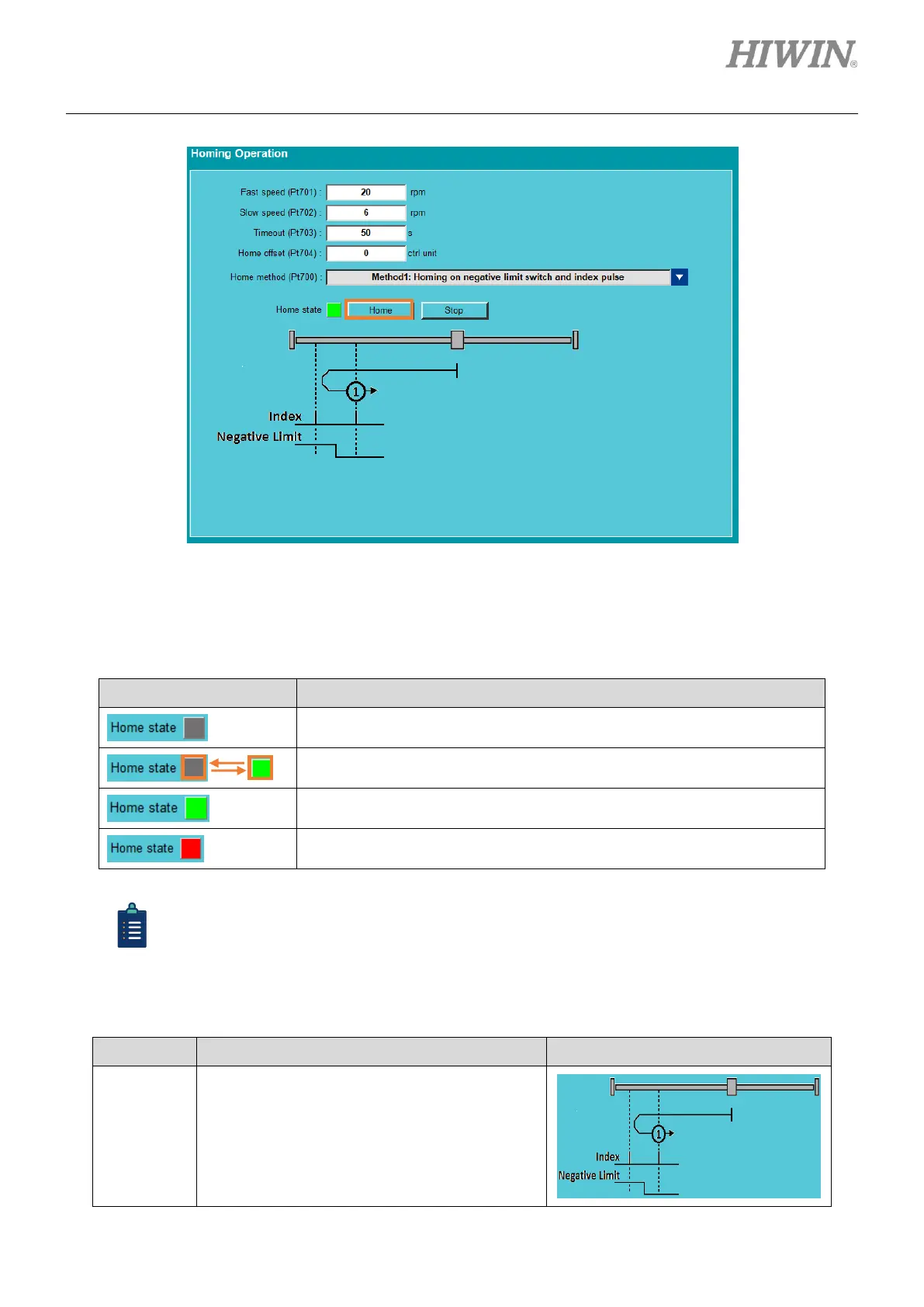

Figure 5.3.3
4. Wait until the homing procedure is done, and obverse the light display.
Table 5.3.2
When it displays gray light, homing is not activated.
When it displays green flashing light, the motor is moving.
When it displays green light, homing is done.
When it displays red light, homing fails.
To stop homing procedure during motor moving process, click Stop.
Homing with the index signal on the right of N-OT
signal from negative direction. Search for N-OT
signal in negative direction at the velocity for
finding near home sensor (rotary servo motor)
(Pt701). After N-OT signal is found, search for the
