Item
FIC-16FSW/FIC-16FSW-PoE
DFIC-24FSW/DFIC-24FSW-PoE
Number of connectors
16 × 100 Mbps RJ-45 connector
1
×
1000 Mbps RJ-45 connector
1
×
SFP connector
24 × 100 Mbps RJ-45 connector
2
×
1000 Mbps RJ-45 connector
2
×
SFP connector
Transmission distance
100 m (328.08 ft) over category-5 twisted pair cables (both crossover and
straight-through)
Operating mode 10/100 Mbps autosensing, full/half duplex
Interface LEDs
On the FIC-16FSW/FIC-16FSW-PoE/DFIC-24FSW/DFIC-24FSW-PoE panel, each port has one
green LED.

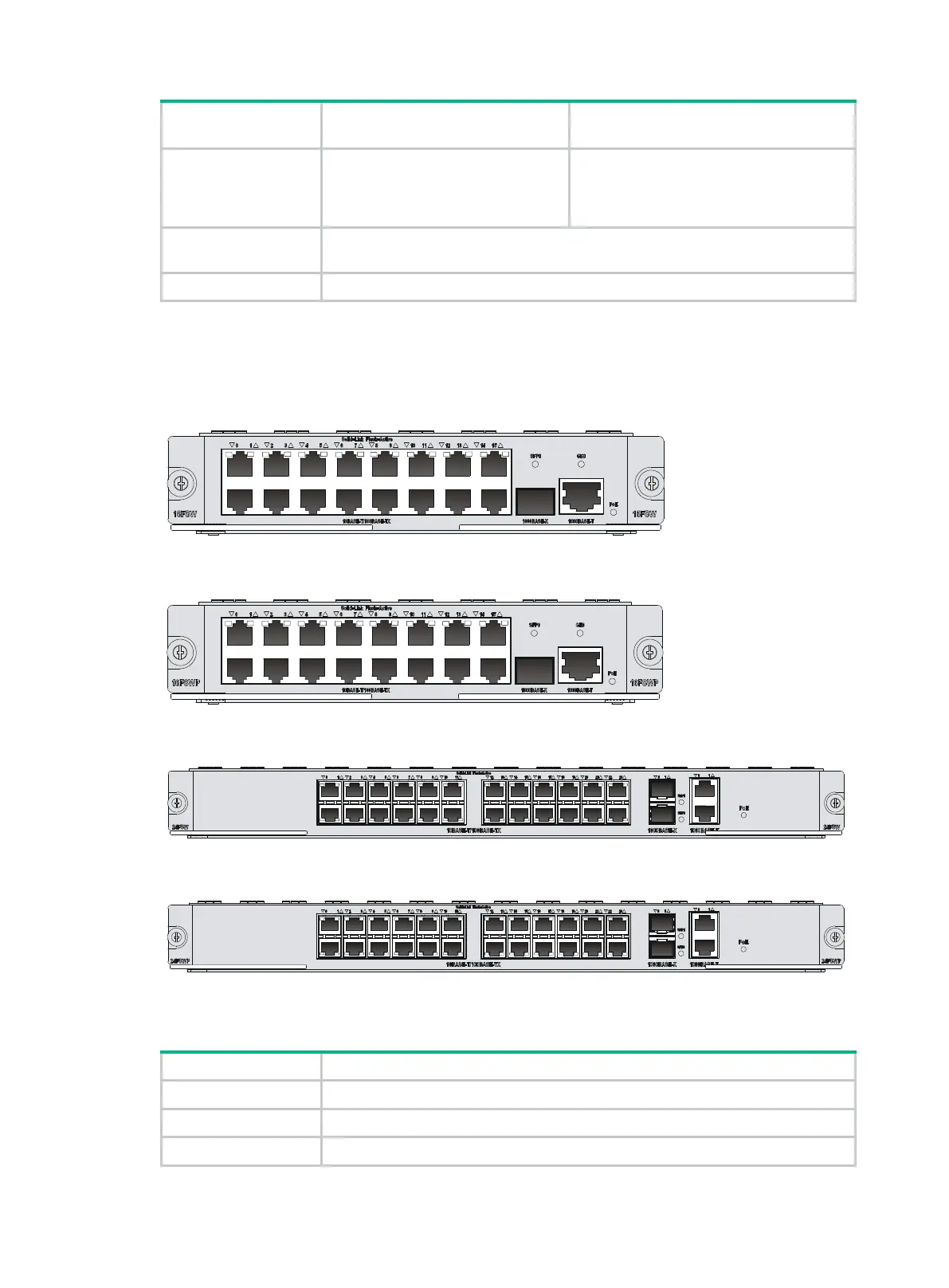

Figure 122 FIC-16FSW panel
Figure 123 FIC-16FSW-PoE panel
Figure 124 DFIC-24FSW panel
Figure 125 DFIC-24FSW-PoE panel
Table 168 LED description for the
FIC-16FSW/FIC-16FSW-PoE/DFIC-24FSW/DFIC-24FSW-PoE FE ports
Steady green A link is present, but no data is being transmitted and received.
Off No link is present.
Flashing green A link is present and data is being transmitted and received (ACT).
