HPE FlexNetwork MSR Series Guide

164

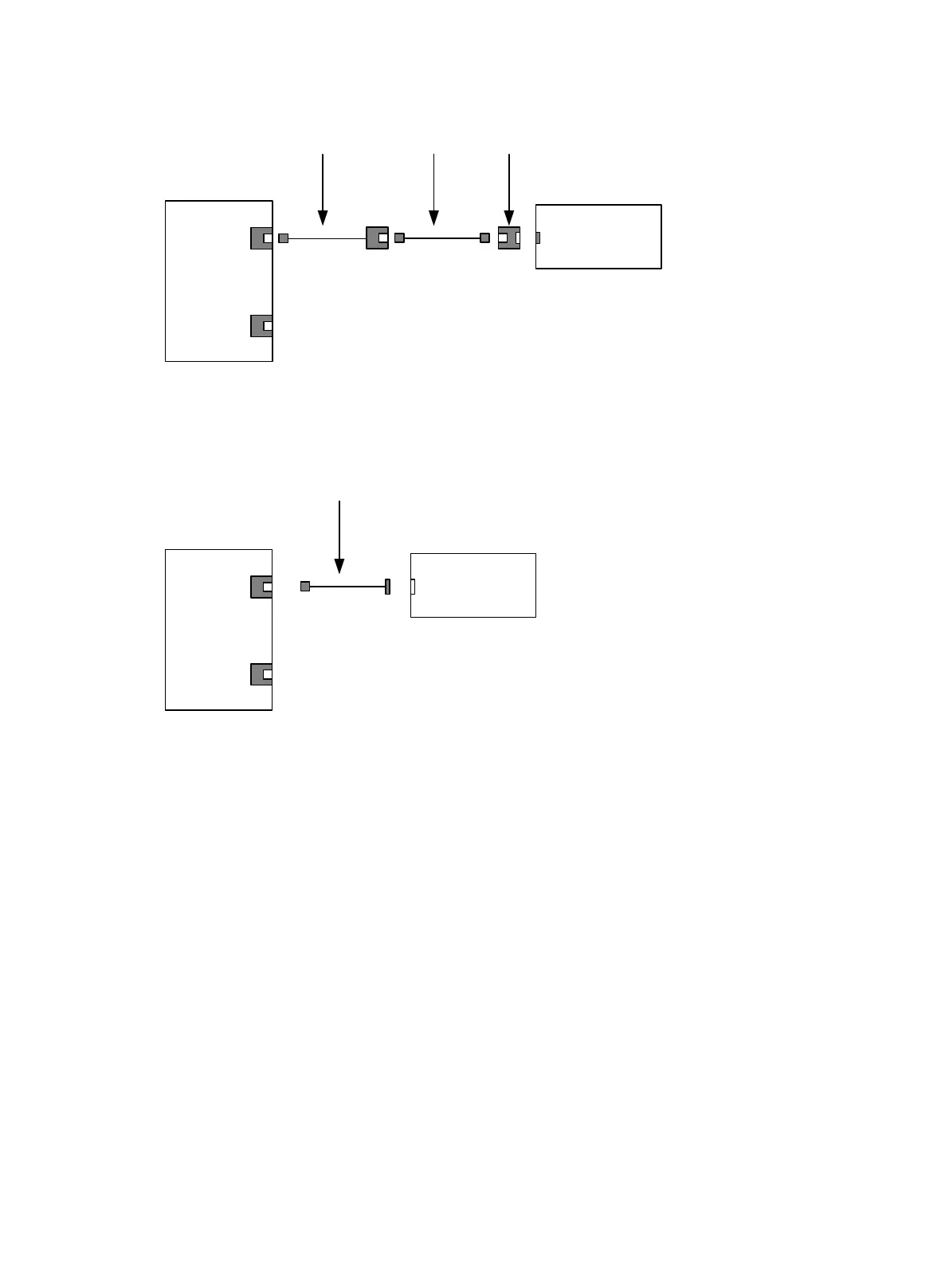

Figure 172 Connecting a bank dumb terminal device
• If the interface of the remote device is a D25/D9 interface, use the AUX cable to connect the
RJ45 interface on the MIM-8ASE/MIM-16ASE/FIC-8ASE/FIC-16ASE interface module. The
sequence is shown in the following figure:
Figure 173 Connecting a modem
Dumb terminal
adapter cable
Straight-
through cable
Dumb terminal adapter
8ASE
16ASE
……
Bank dumb terminal
device
8ASE
16ASE
……
Modem
AUX cable
