9 Routing
You can use the Routing pages to configure Layer 3 features and capabilities.
Routing IP Interface Summary
This page shows summary information about the routing configuration for all interfaces. To view addi-
tional routing configuration information for an interface, select the interface with the settings to view
and click Details.
To display the Routing IP Interface Summary page, click Routing > Configuration in the navigation
pane, and ensure that the Status tab is selected.

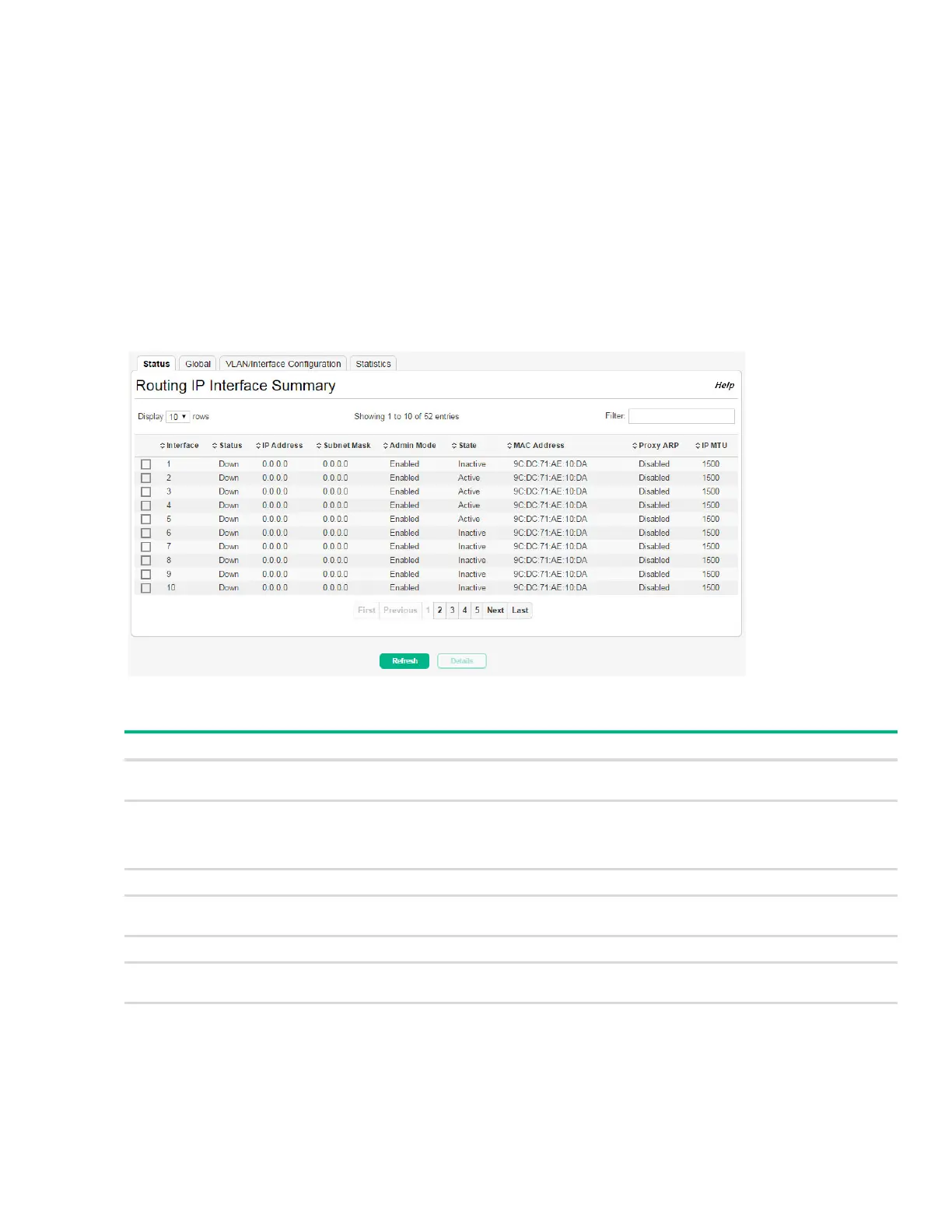

Figure 78. Routing IP Interface Summary Page
Table 58. Routing IP Interface Summary Fields
Field Description
Interface The interface associated with the rest of the data in the row. When viewing details about the
routing settings for an interface, this field identifies the interface being viewed.
Status Indicates whether the interface is capable of routing IP packets (Up) or cannot route packets
(Down). For the status to be Up, the routing mode and administrative mode for the interface
must be enabled. Additionally, the interface must have an IP address and be physically up
(active link).
IP Address The IP address of the interface.
Subnet Mask The IP subnet mask for the interface (also known as the network mask or netmask). It defines
the portion of the interface's IP address that is used to identify the attached network.
Admin Mode The administrative mode of the interface, which is either Enabled or Disabled.
State The state of the interface, which is either Active or Inactive. An interface is considered active
if the link is up, and the interface is in a forwarding state.
MAC Address The burned-in physical address of the interface. The format is six two-digit hexadecimal
numbers separated by colons, for example 00:06:29:32:81:40.
