Page 44 Port Mirroring
Port Mirroring Summary
The Port Mirroring Summary page displays summary information for all port mirroring sessions. To dis-
play the Port Mirroring Summary page, click Switching > Port Mirroring in the navigation pane and
click the Summary tab.

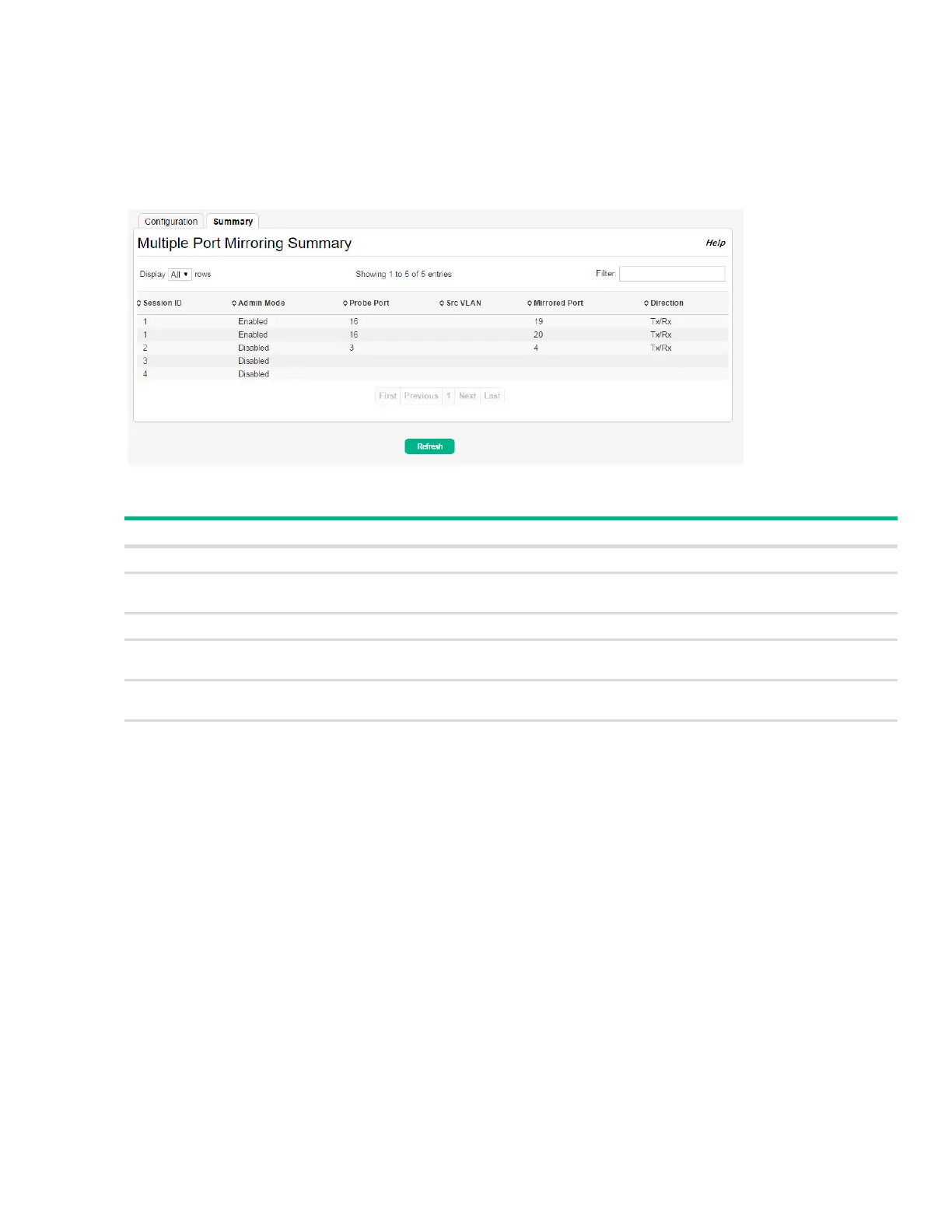

Figure 23. Port Mirroring Summary Page
Table 14. Port Mirroring Summary Fields
Field Description
Session ID The port mirroring session ID. The number of sessions allowed is platform specific.
Admin Mode The administrative mode for the selected port mirroring session. If the mode is disabled, the
configured source is not mirroring traffic to the destination.
Probe Port The interface that receives traffic from all configured source ports.
Src VLAN The VLAN configured to mirror traffic to the destination. You can configure one source VLAN
per session. The source VLAN can also be a remote VLAN.
Mirrored Port The ports configured to mirror traffic to the destination. You can configure multiple source
ports per session.
Direction The type of traffic on the source port (or source ports) or VLAN that is sent to the specified
destination. A source VLAN mirrors all received and transmitted packets to the destination.
Possible values for source ports are:
Tx and Rx – Both ingress and egress traffic.
Rx – Ingress traffic only.
Tx – Egress traffic only.
