Page 62 Loop Protection
Table 24. Loop Protection Status Fields
Loop Protection Configuration
Use the Loop Protection Configuration page to configure this feature on one or more interfaces. To dis-
play this page, click Switching > Loop Protection in the navigation pane and select the Configura-
tion tab.

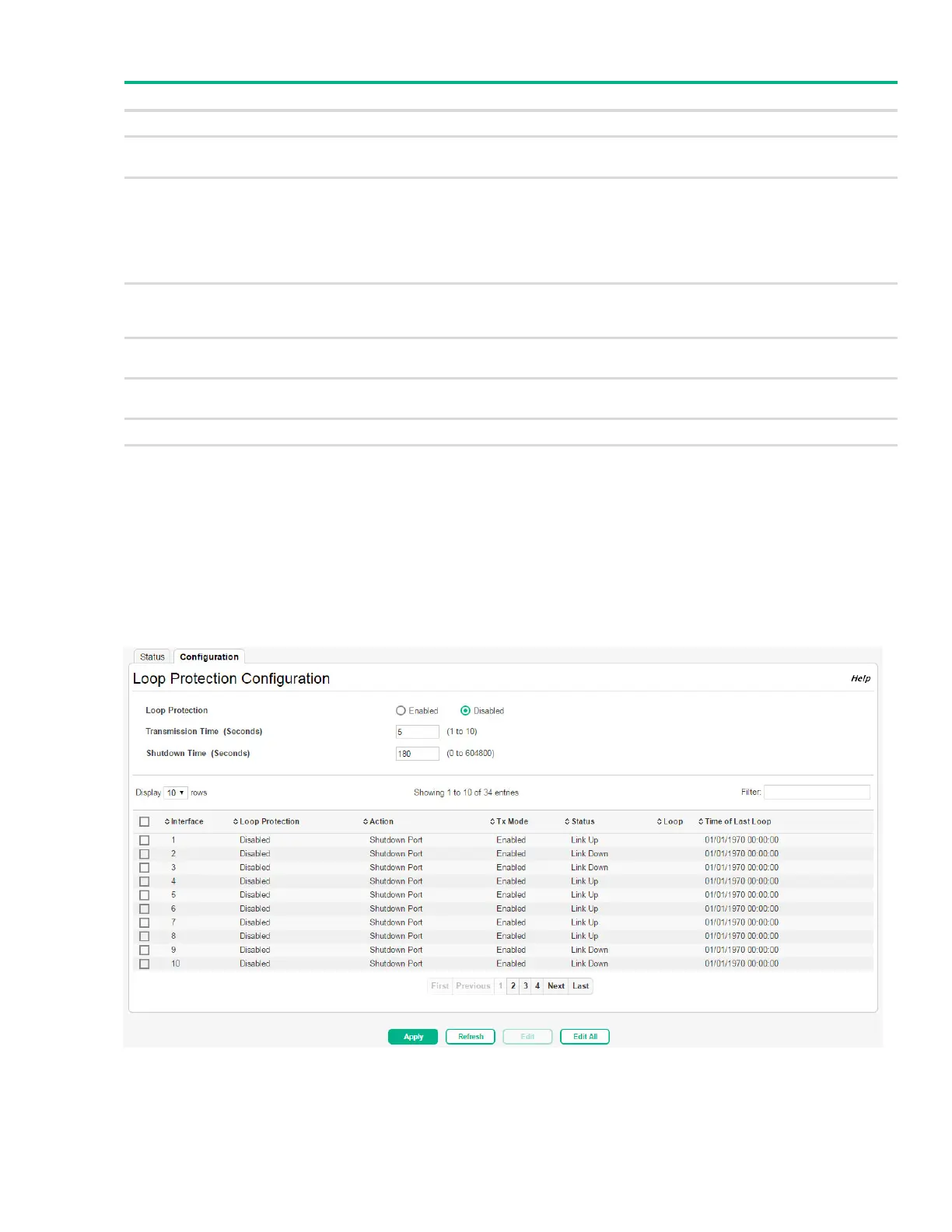

Figure 35. Loop Protection Configuration Page
Field Description
Interface The port or trunk ID.
Loop Protection Indicates whether the feature is administratively enabled or disabled on the port. Loop
Protection is disabled by default.
Configured Action Taken The action that is set to occur when a loop is detected on the port with loop protection
enabled:
Shutdown PortThe port will be shut down for the configured period. This is the default.
Shutdown Port and LogThe event will be logged and the port is shut down for the con-
figured period.
Log OnlyThe event will be logged and the port remains operational.
Tx Mode Indicates whether the interface is configured (Enabled) to send out loop protection protocol
data units (PDUs) to actively detect loops. When disabled, the interface does not send out
loop protection PDUs but can receive them from other ports. Tx Mode is enabled by default.
Loop Count The number of loops detected on this interface since the last system boot or since statistics
were cleared.
Status The current loop protection status of the port. Link Up indicates the interface is operating
normally. Link Down indicates that the port has been shut down due to the detection of a loop.
Loop Whether a loop is currently detected on the port.
Time of Last Loop The date and time of the last loop event detected.
