Page 148 Configuring Class of Service

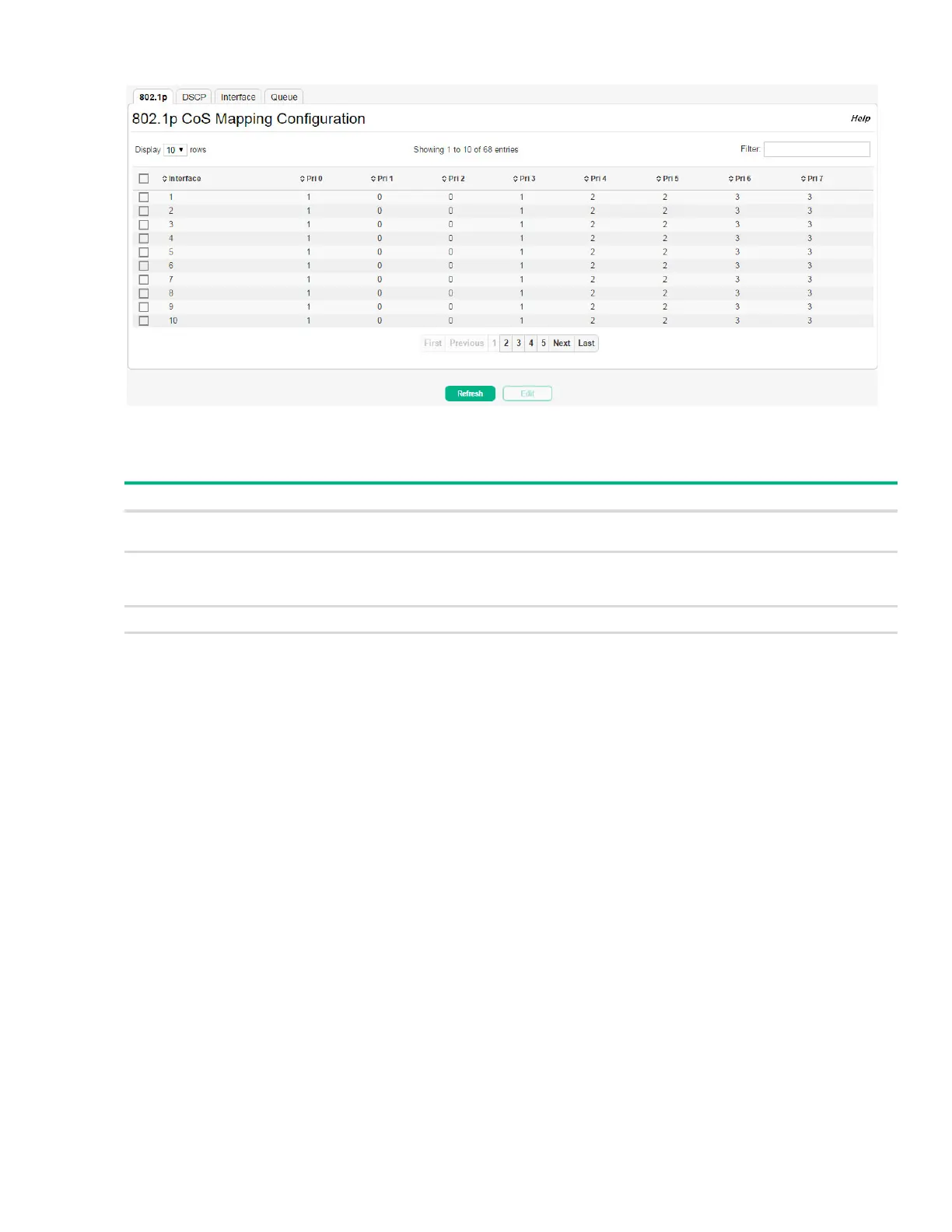

Figure 106. 802.1p CoS Mapping Configuration Page
Table 80. 802.1p CoS Mapping Configuration Fields
Configuring 802.1p CoS Mapping on an Interface
To configure the 802.1p mapping for one or more interfaces:
1. Select each interface to configure and click Edit. If you select multiple interfaces, the same settings
are applied to all selected interfaces.
The Edit 802.1p Priority Mapping page appears.
Field Description
Interface The interface associated with the rest of the data in the row. The Global entry represents the
common settings for all interfaces, unless specifically overridden individually.
Priority The heading row lists each 802.1p priority value (0–7), and the data in the table shows which
traffic class is mapped to the priority value. Incoming frames containing the designated
802.1p priority value are mapped to the corresponding traffic class in the device.
802.1p Priority The 802.1p priority value to be mapped.
Traffic Class The internal traffic class to which the corresponding 802.1p priority value is mapped. The
default value for each 802.1p priority level is displayed for reference.
