IPv4 Routing
The pages under the IPv4 Routing allow you to configure and display route tables.
IP Route Summary
The IP Route Summary page displays summary information about the entries in the IP routing table.
To display the IP Route Summary page, click Routing > IPv4 Routing in the navigation pane, and
ensure that the Status tab is selected.

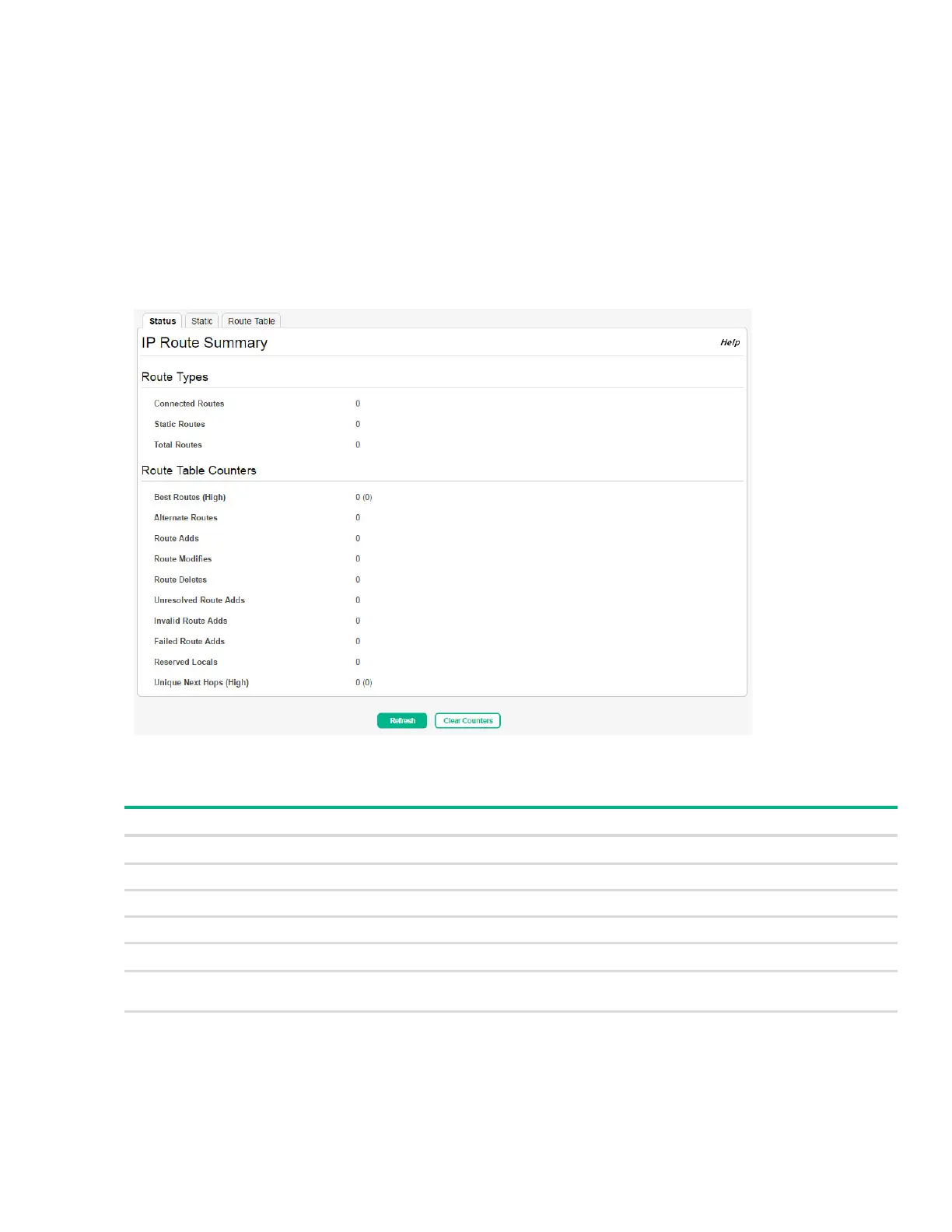

Figure 82. IP Route Summary Page
Table 63. IP Route Summary Fields
Field Description
Route Types
Connected Routes The total number of connected routes in the IP routing table.
Static Routes The total number of static routes in the IP routing table.
Total Routes The total number of routes in the routing table.
Route Table Counters
Best Routes (High) The number of best routes currently in the routing table. This number only counts the best
route to each destination.
Alternate Routes The number of alternate routes currently in the routing table. An alternate route is a route that
was not selected as the best route to its destination.
