HTA HT2000H - Septum of the System Integrity Tool Replacement

HT2000H_en_n.doc Page 150 of 167

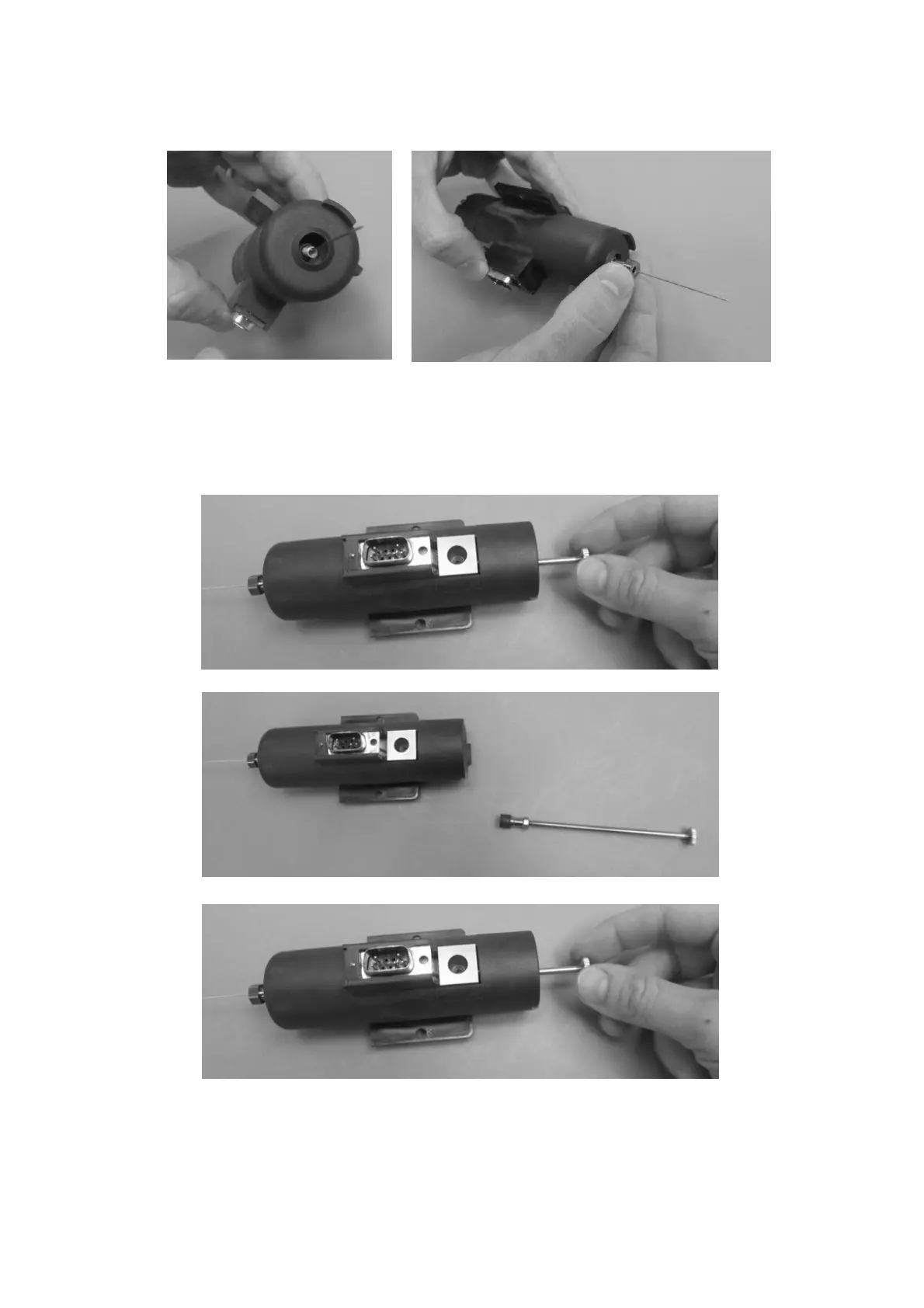

Figure 120: HT syringe needle installation
3. To replace the plunger simply lift it up (figure below – a), remove it from the Syringe
Warmer High Temperature Assembly for HT2000HT(figure below – b), and replace it (figure
below – c).
Figure 121: HT syringe plunger replacement
9.1.6 Septum of the System integrity tool replacement
c
c
b
b
a
a
c
b
