3.6.2 Swagelok Adapter installation
1 Use a Hexagon key (2mm) to unscrew the Rapid fitting terminal (indicated with the letter A
in the figure below):

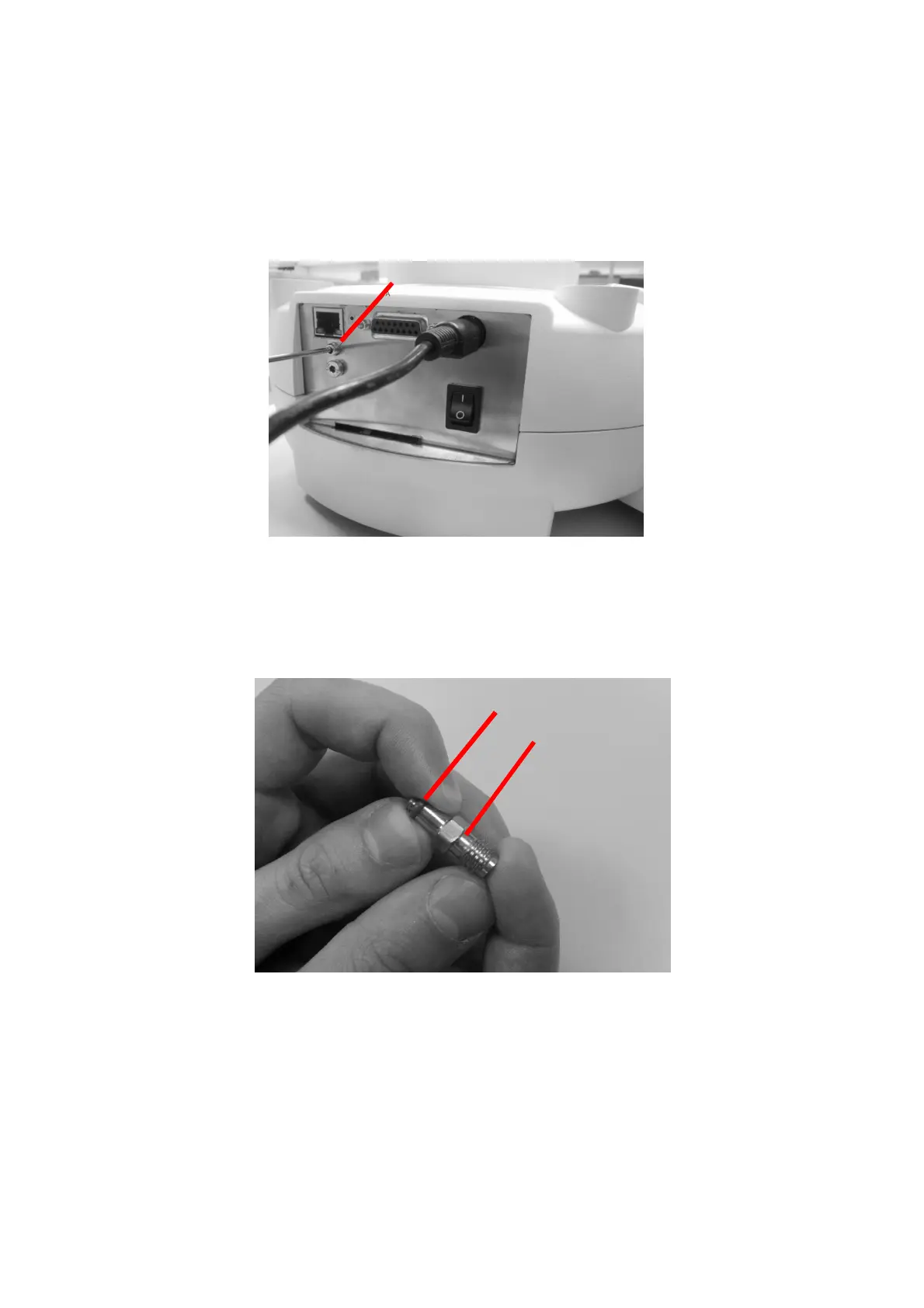

Figure 77: Swagelok adapter installation_1
2 Put the O.R. (indicated with the letter B in the figure below) on the new fitting (indicated with
the letter C in the figure below):
Figure 78: Swagelok adapter installation_2
3 Use an open-end wrench (8mm) to screw the fitting and the washer on the female adapter
(indicated with the letter D in the figure below):
