HT2000H_en_n.doc Page 32 of 167

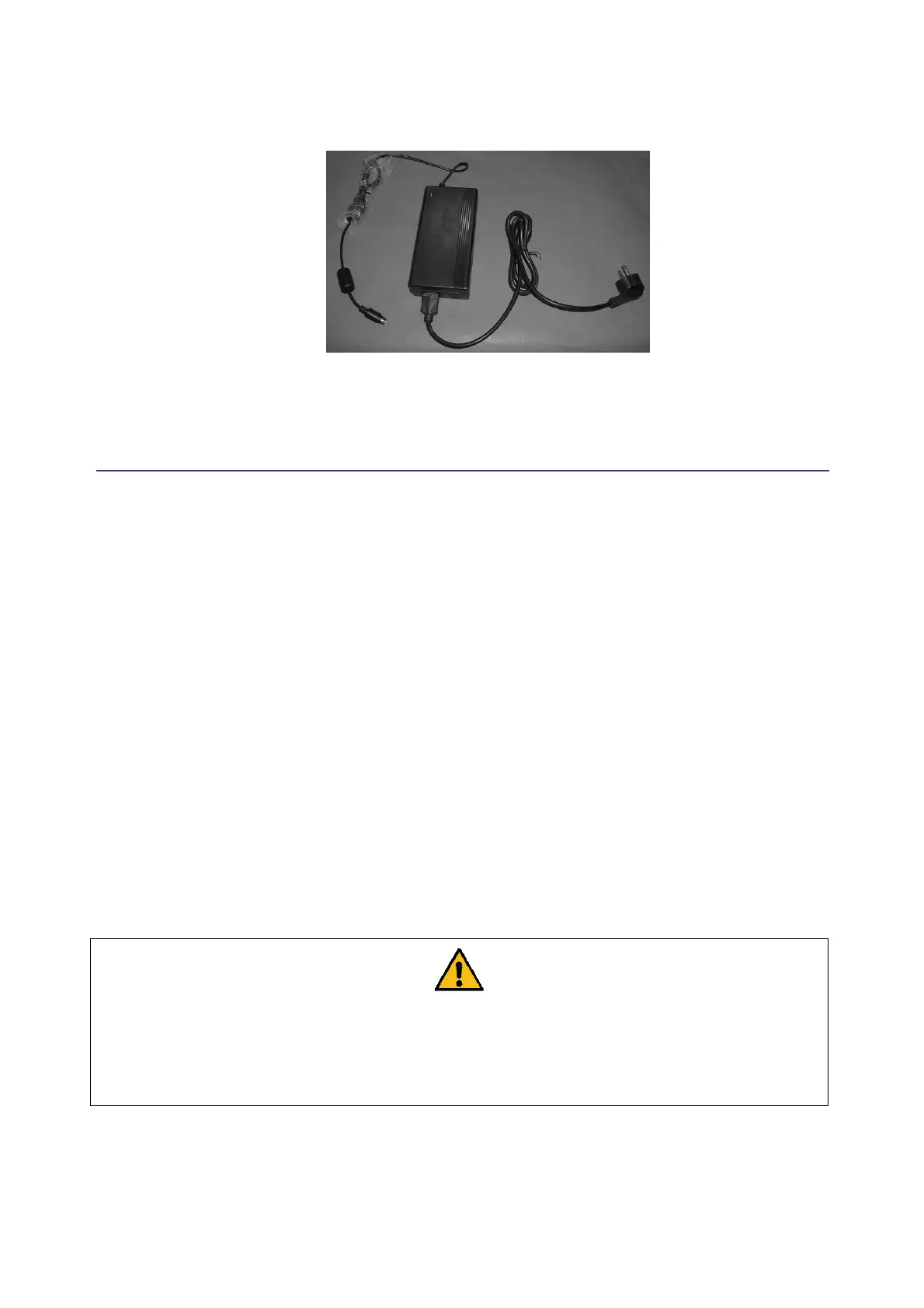

Figure 23: External power supply
This external power supply has to be connected to socket number 2 in Figure 22.
2.2 Moving parts
These are the moving parts of the autosampler:
•
The turret can rotate 320°.
•
The needle location can move vertically by a maximum of 303mm.
•
The plunger can move by a maximum of 65mm inside the syringe.
•
The moving sample tray can be opened/closed (220mm of movement) (in the HT2100H
version it is fixed).
•
The oven cover for HT2000H/HT2000HT (identified as cover) can rotate 35°(open/close
position);
•
The elevator for HT2100H can move vertically by a maximum of about 24mm
(open/close position).
•
The shaker (orbital shaker for HT2000H/HT2000HT and sussultatory shaker for
HT2100H) allows vial(s) agitation with a programmable speed.
•
The fan (not present in the HT2100H version) is used to assist temperature stabilization
and the cooling down of the oven.
The movements are made with DC motors, with position control made by encoders.
Warning
Do not try to open or close the sample tray manually, unless it is strictly necessary. In this
case, follow the instructions of paragraph 8.16.1 “Tray opening by hand”.
power
supply
