3.3.2 Safety Lock setting
When shipped the autosampler has the safety lock on, as shown in Figure 59; to work correctly it
should be set as shown in Figure 58.

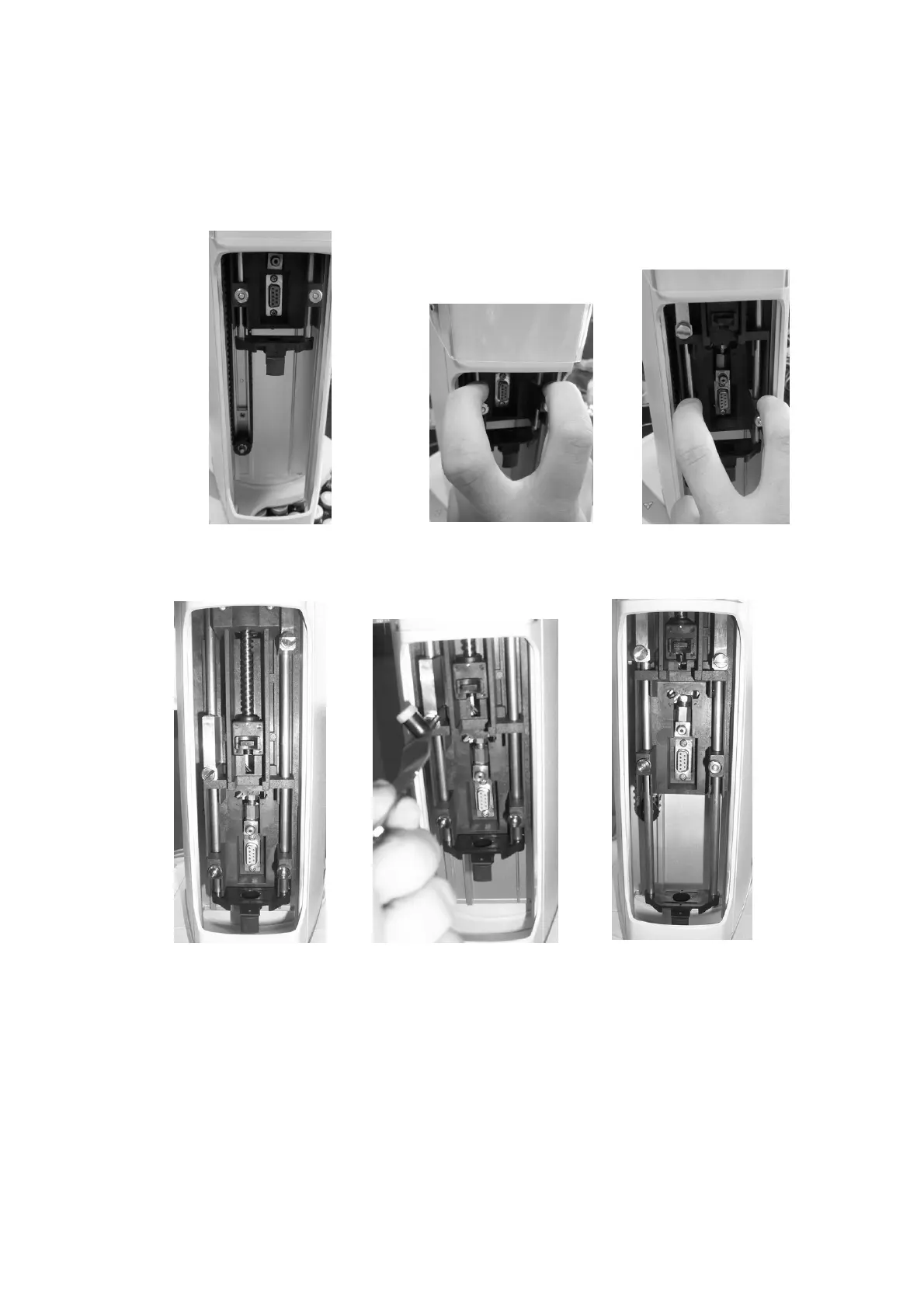

Figure 54: Shipping position Figure 55: Moving_1 Figure 56: Moving_2
Figure 57: Moving_3 Figure 58: Moving_4 Figure 59: Operating position
1. Needle Guide regulator (right block)
2. Safety lock (left block)
3. Vial locator
2
1
3
2
3
1
2
3
2
