HTA HT2000H - Mounting Plate and Safety Lock Setup

HT2000H_en_n.doc Page 52 of 167
3.3.1.1 Unlock the autosampler from the mounting kit
1. Open the mounting plate locker, pulling it out using the syringe pointer shown in Figure 24.
The opening procedure is shown in the figure below.

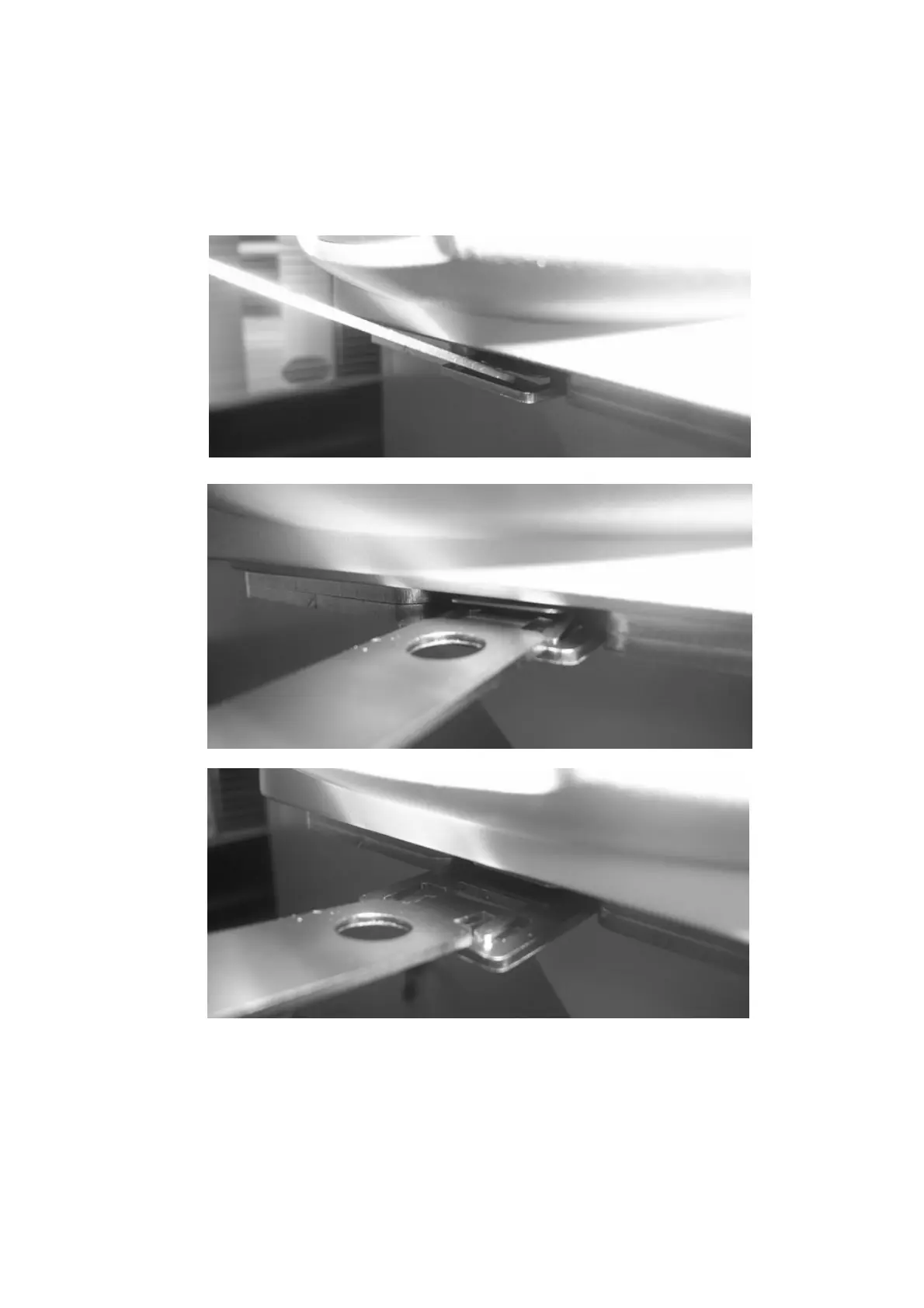

Figure 53: Mounting plate locker opening
2. Lift and remove the autosampler.
3. Close the mounting plate locker, by pushing it in. The plate returns as shown in Figure 49.
