The syringe warmer assembly and the vial locator are shown in detail in the figures below:

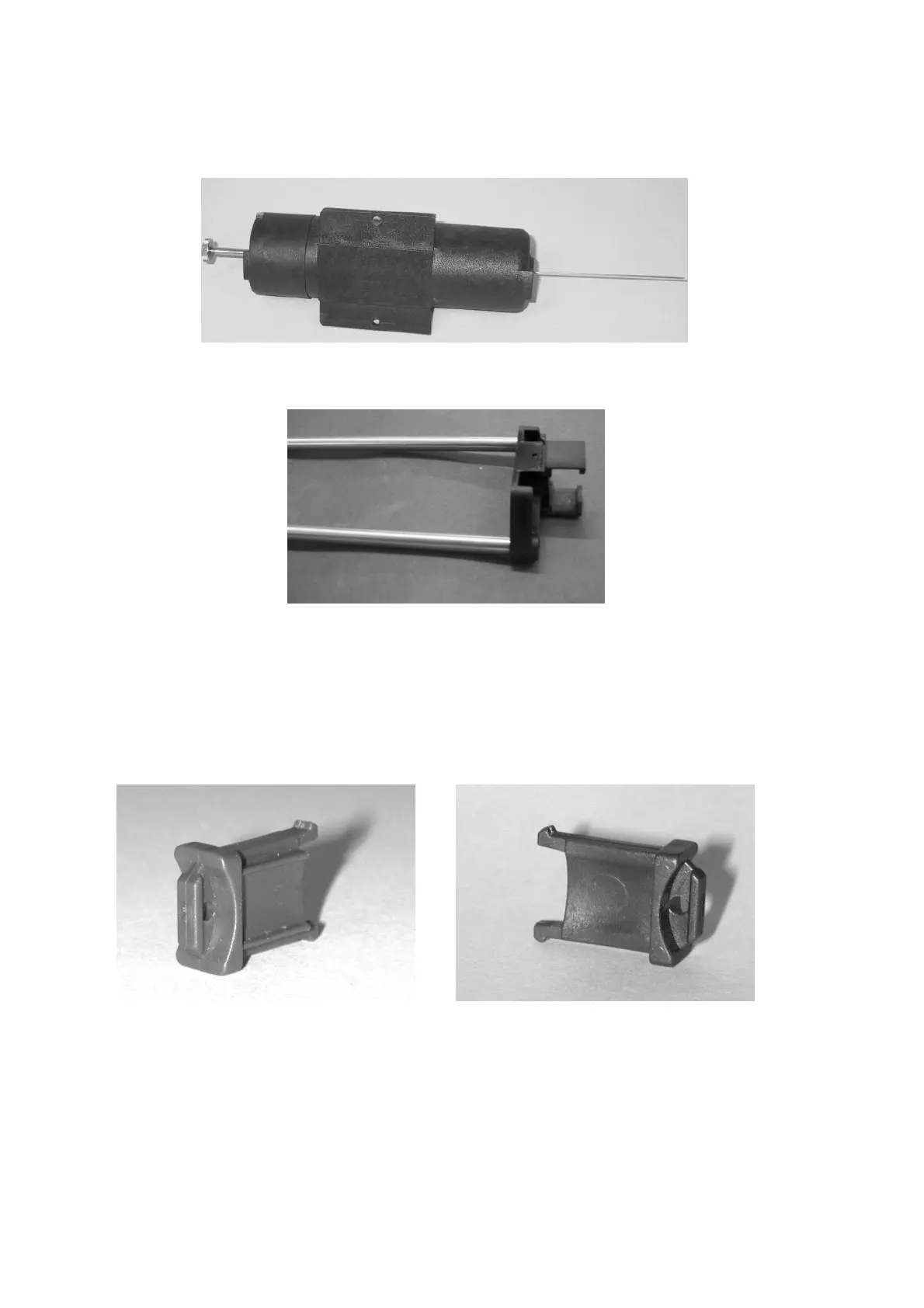

Figure 18: Syringe warmer assembly
Figure 19: Vial locator
The Plunger Locker has two different faces in order to locate different kinds of syringe pistons. These
faces are indicated as “S side” and “B side”. When “S side” is required, please have “S side” facing
down; when “B side” is required, please have “B side” facing down.
For the HT2000H and HT2100H, side B must be faced downward.
Figure 20: “S” side of the plunger locker Figure 21: “B” side of the syringe locker
2.1.4 Connection panel
On the rear of the autosampler there is the connection panel:
