HT2000H_en_n.doc Page 70 of 167

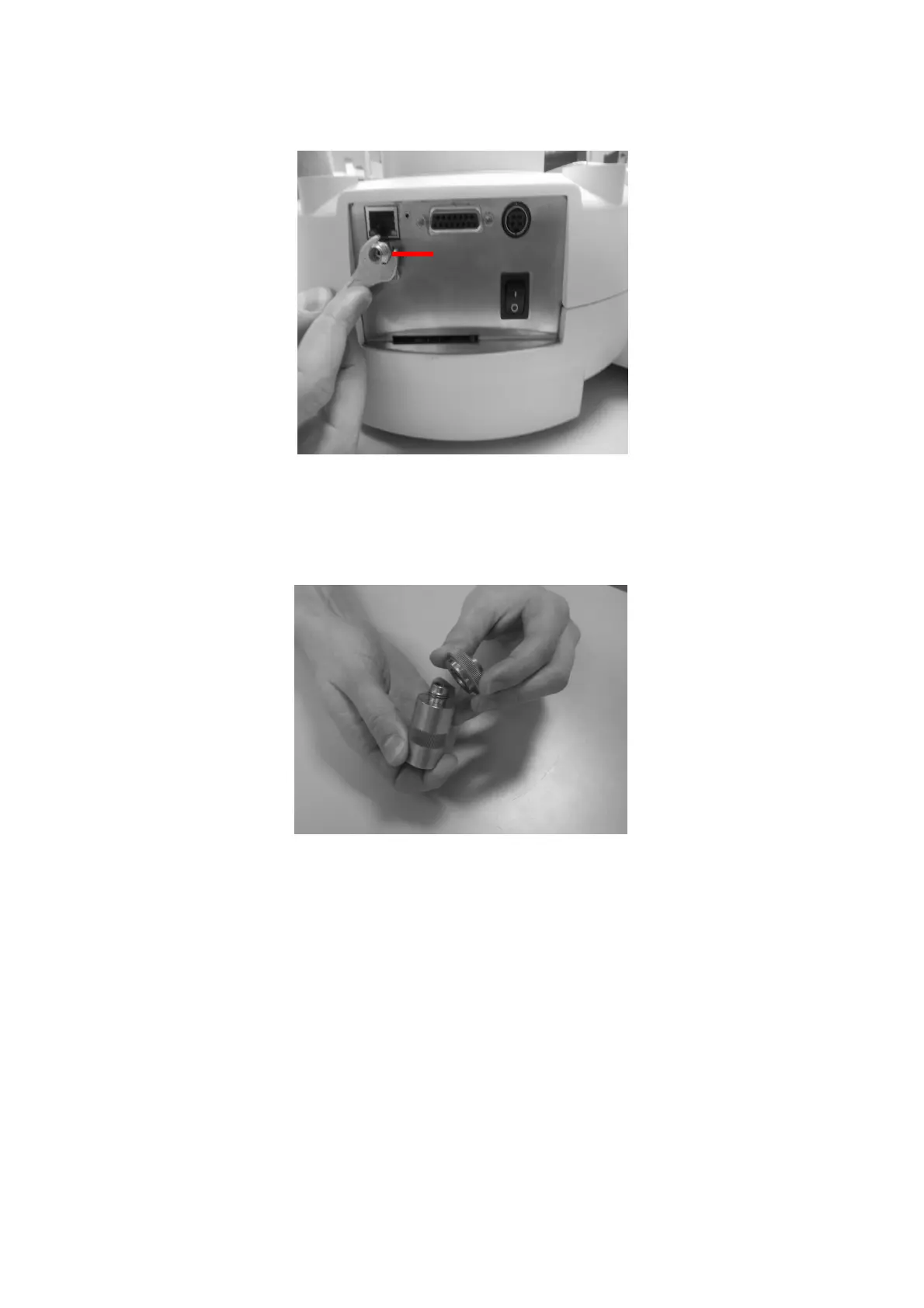

Figure 79: Swagelok adapter installation_3
3.6.3 System integrity tool installation
1 Remove the upper part of the Syringe integrity tool (as indicated in the figure below):
Figure 80: System integrity tool installation_1
2 Insert the septum (indicated with the letter A in the figure below) in the lower part of the
Syringe integrity tool:
