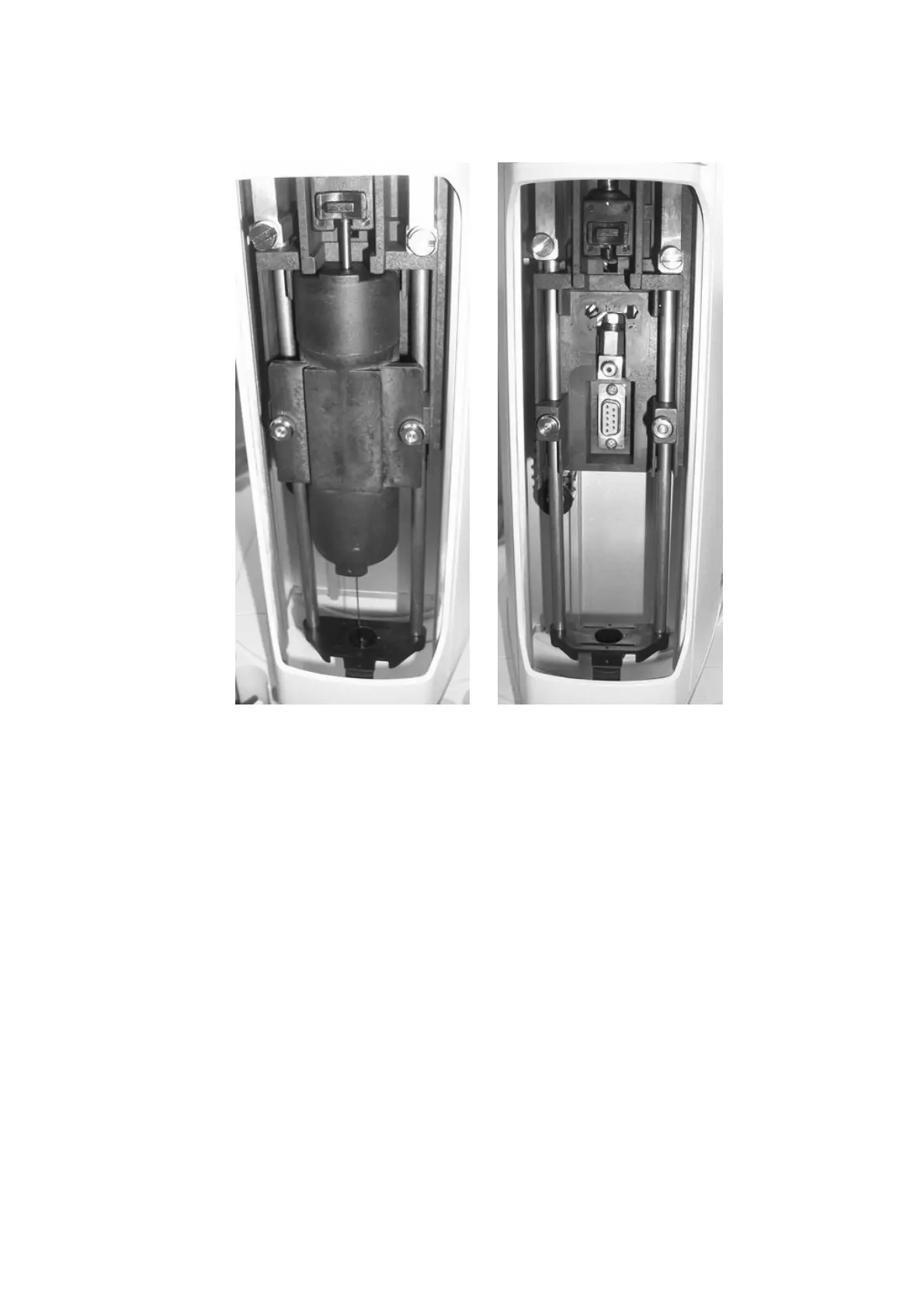

Figure 17: Syringe location
The syringe location contains the following parts:
1. Syringe warmer assembly: installed (left), not installed (right)
2. Plunger holder with plunger locker
3. Retaining nuts
4. Needle height regulator (right block)
5. Syringe connection socket
6. Flushing gas inlet
7. Vial locator
8. Safety lock (left block)
