HT2000H_en_n.doc Page 154 of 167

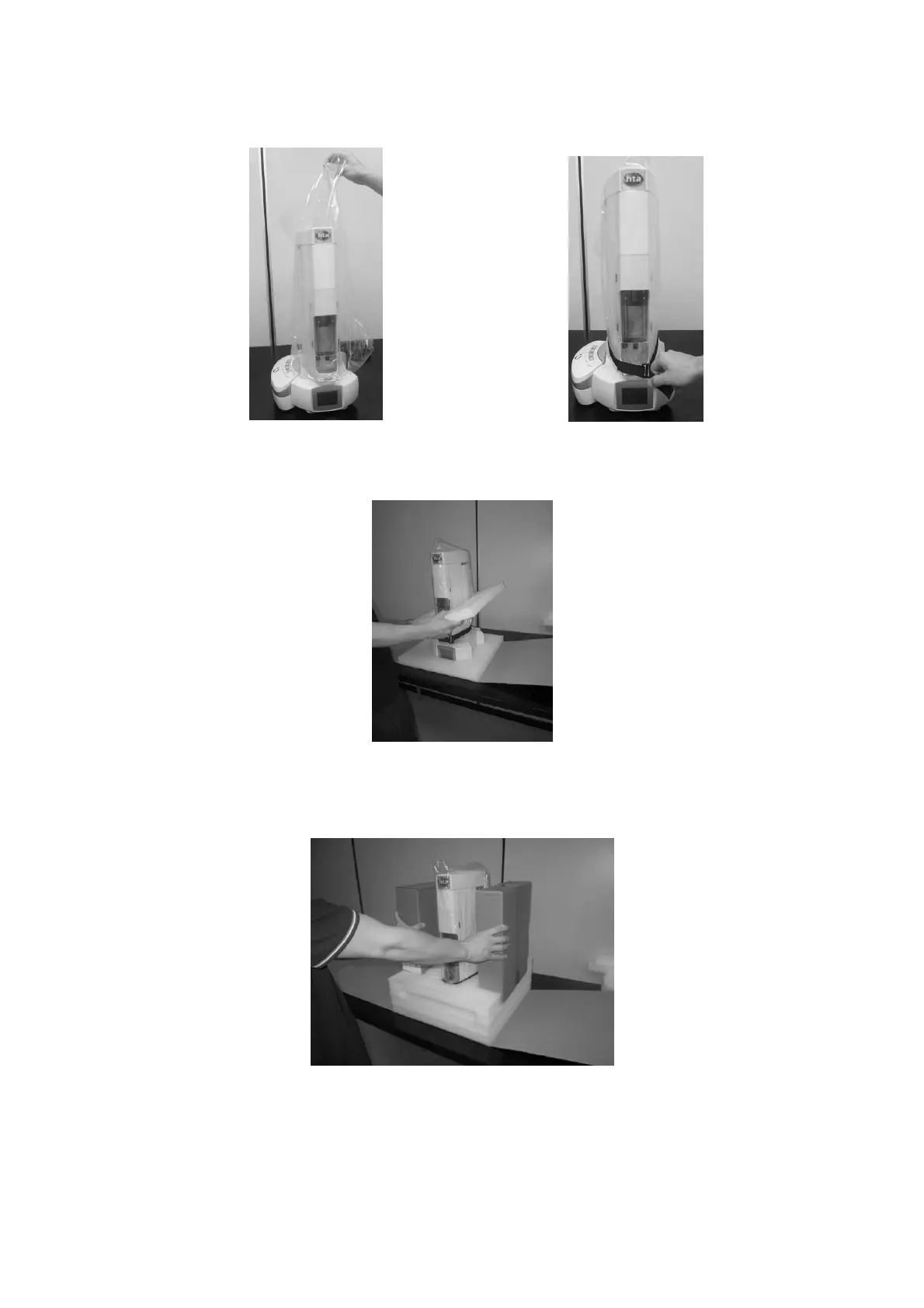

Figure
123
: Apply the polythene bag
Figure 124: Apply the protection belt
5. Apply the lower protective cushions.
Figure 125: Position the lower cushions
6. Position the sealed accessory boxes on the autosampler sides.
Figure 126: Position the accessory boxes
7. Position the upper protective cushions.
