HTA HT2000H - Page 79

HT2000H_en_n.doc Page 83 of 167

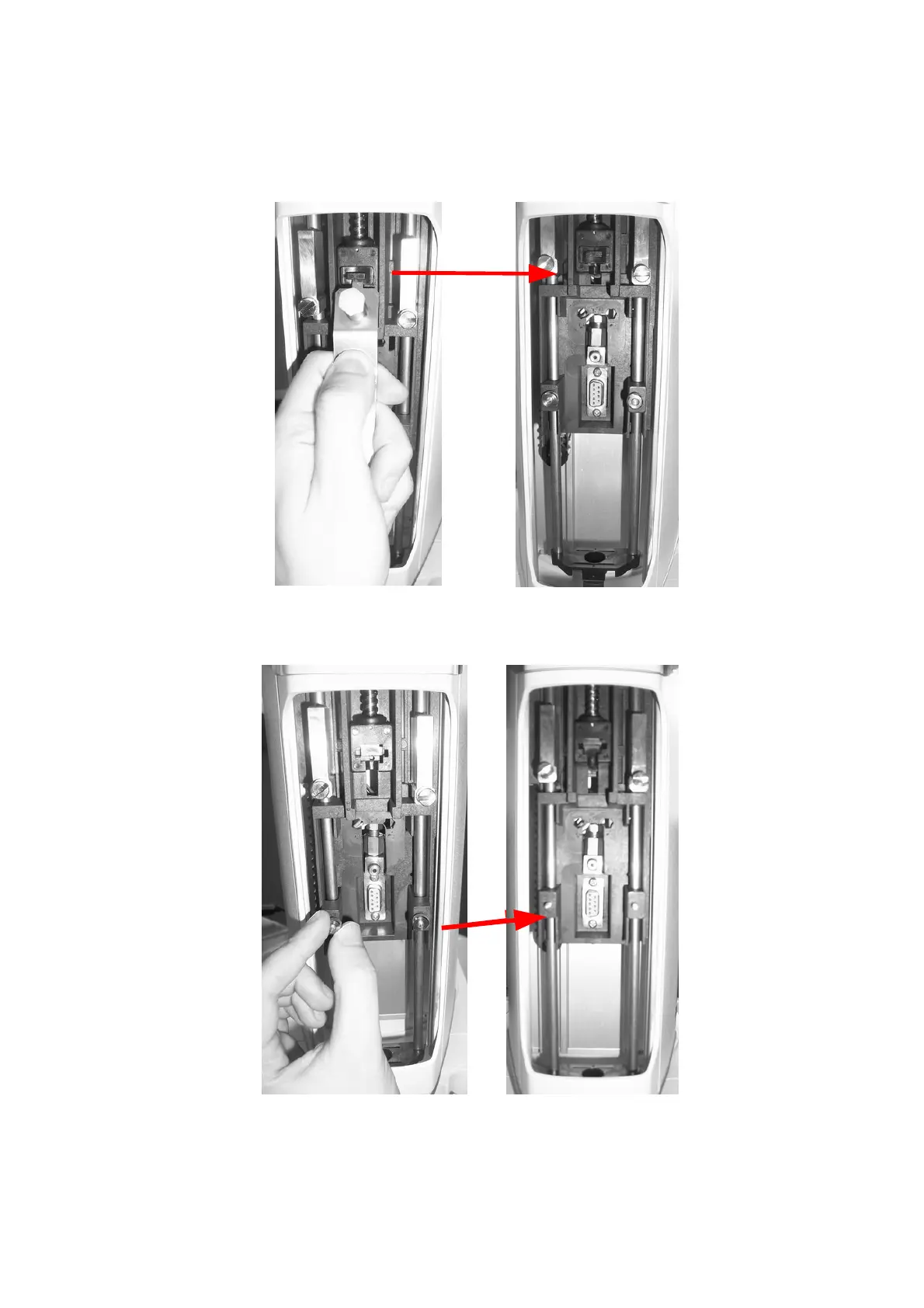

b) Remove the plunger locker by pulling it out using the syringe pointer shown in Figure
24.
Figure 91: Plunger locker removing
c) Remove the retaining nuts as shown in the figure below.
Figure 92: Retaining nuts removing
