HT2000H_en_n.doc Page 85 of 167
f) Mount the syringe warmer assembly with the new syringe installed in the syringe
location. Take care to insert the needle inside the vial locator and then plug the syringe
warmer assembly into the D-shape connector (number 5 in Figure 17). Insert the
plunger in the plunger holder (number 2 in Figure 17).

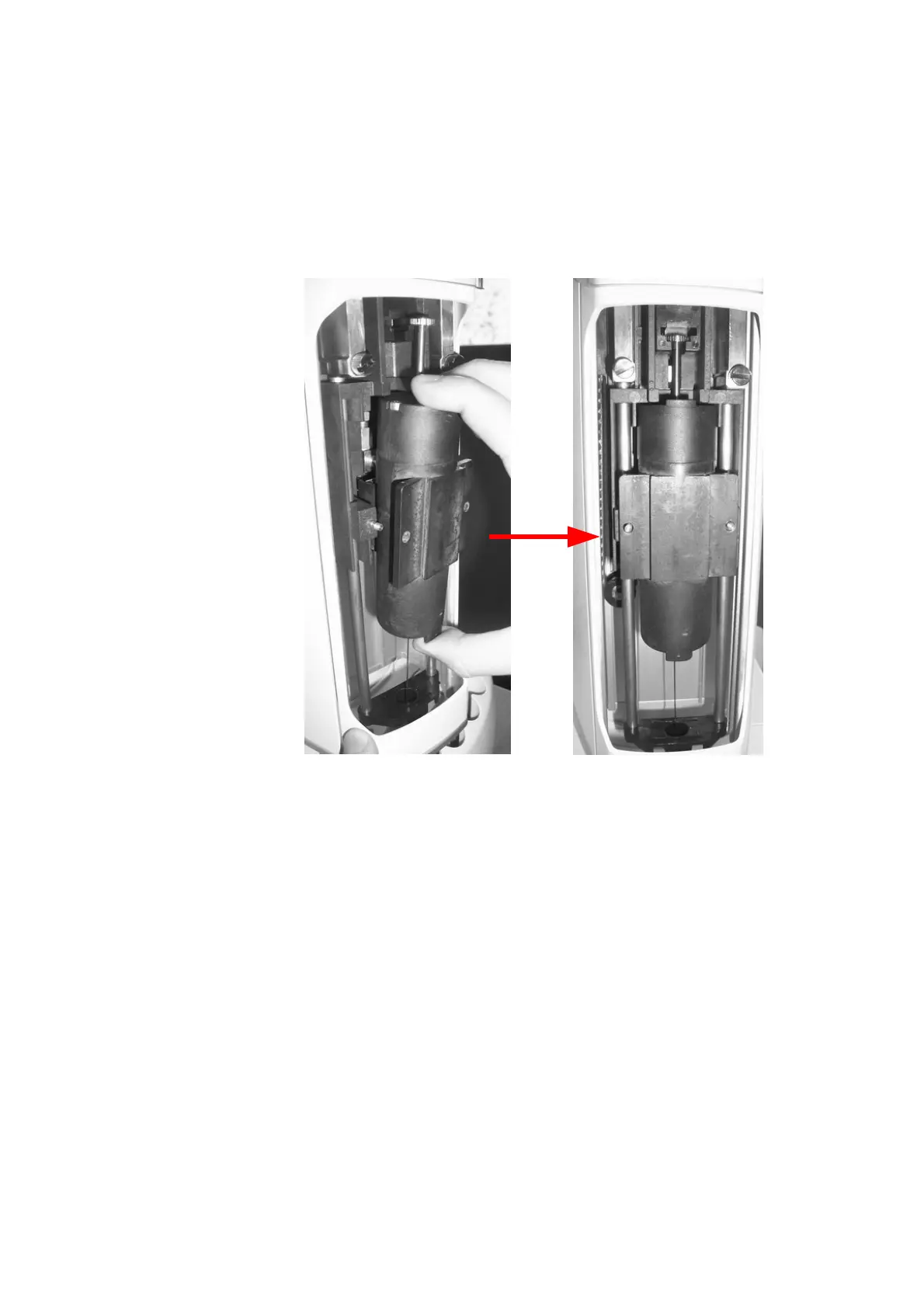

Figure 94: Syringe warmer assembly positioning
