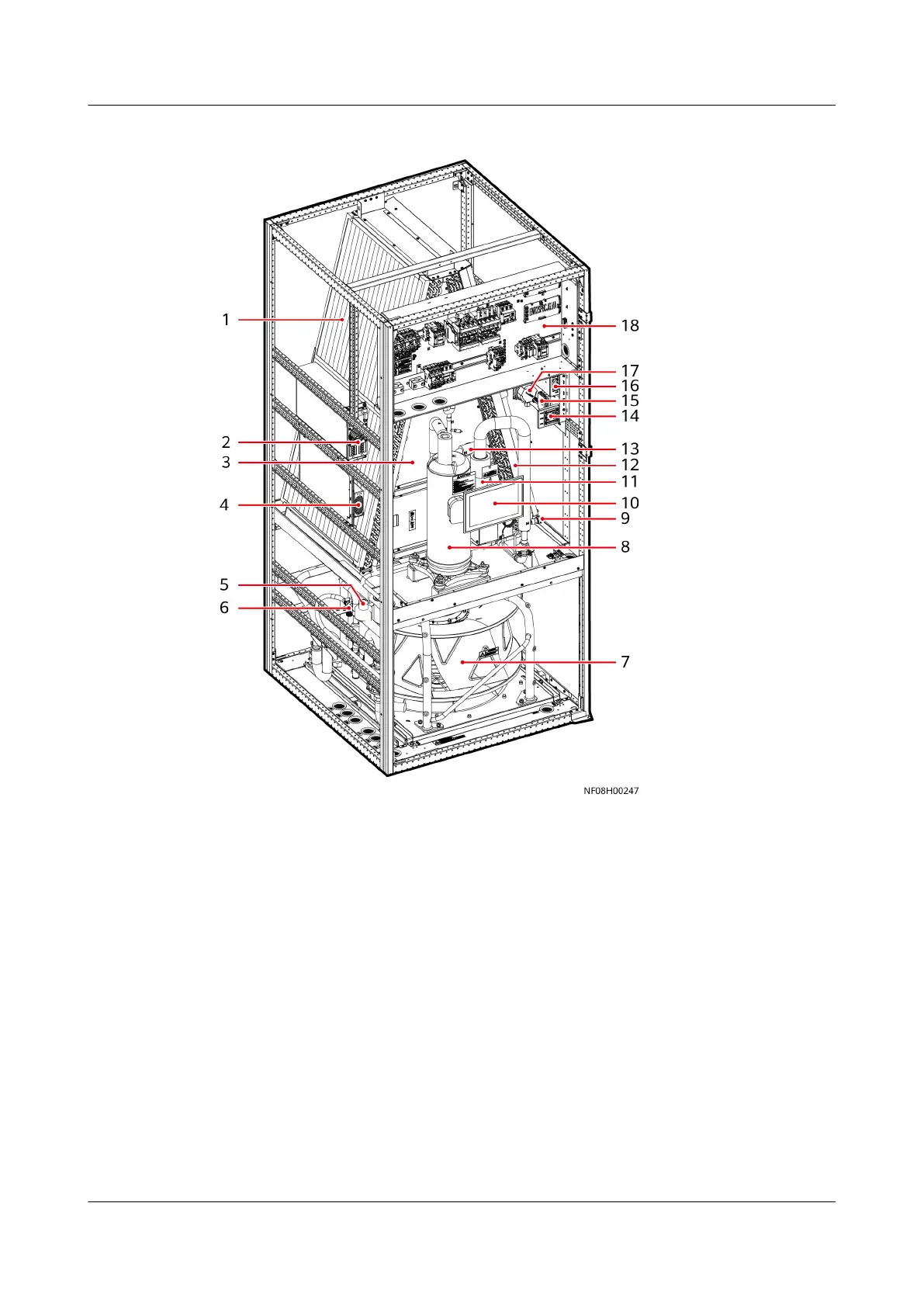

Figure 2-12 NetCol8000-A055D components
(1) Air lter (2) Integrated
variable-frequency
drive
(3) Evaporator (4) Indoor fan drive
(5) EEV (6) Water inlet
solenoid valve
(optional)
(7) Fan (8) Compressor
(9) Suction pressure
sensor
(10) Display module (11) Oil separator (12) Wet lm
humidier (optional)
(13) Discharge
pressure sensor
(14) User wiring
terminal
(15) T/H sensor (16) Main control
module
(17) Dierential
pressure switch
(18) Electric control
box
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 2 Product Description
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 22
