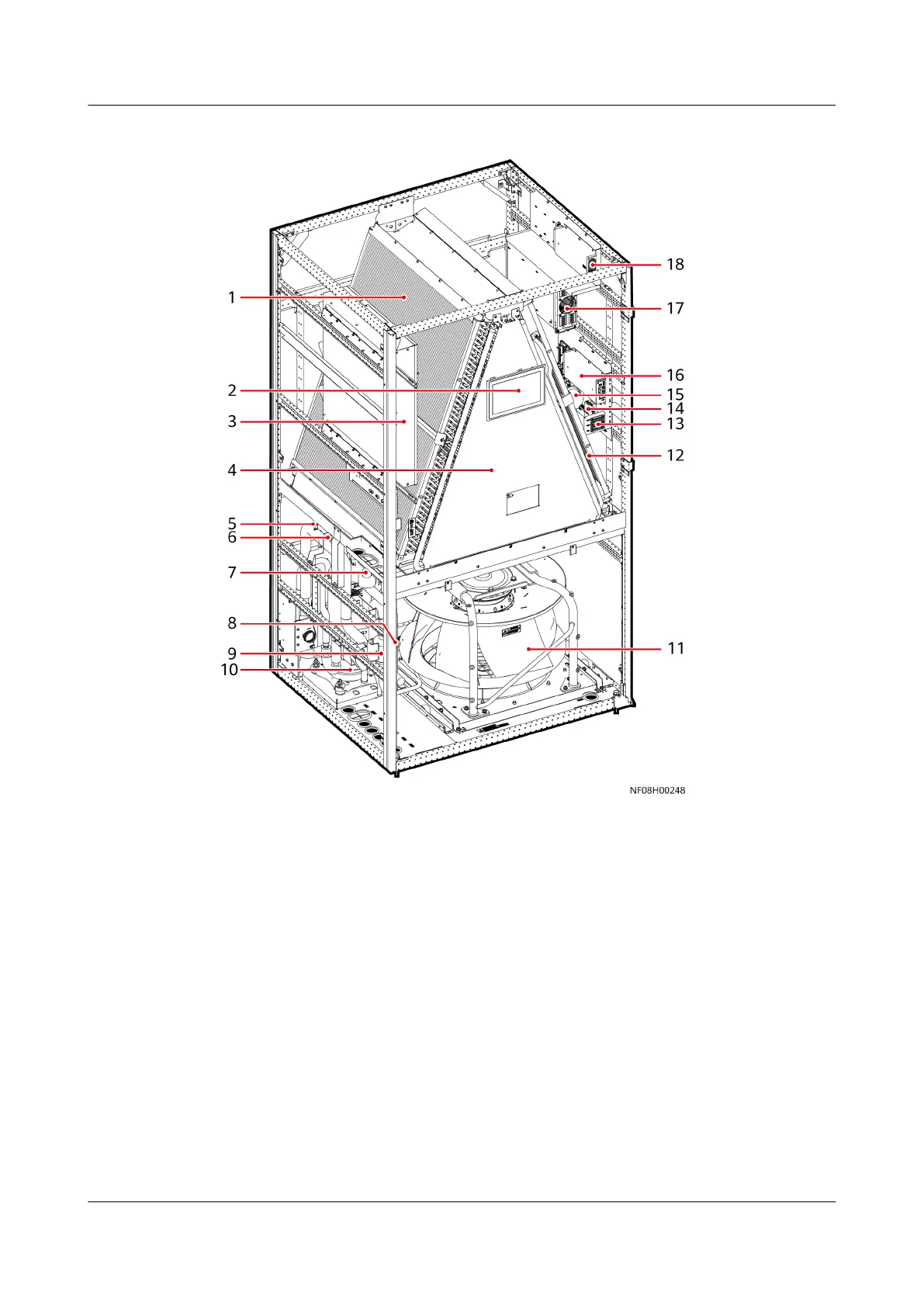

Figure 2-13 NetCol8000-A060D components
(1) Air lter (2) Display module (3) Electric control box (4) Evaporator
(5) High pressure
switch
(6) Discharge pressure
sensor
(7) EEV (8) Sight glass
(9) Filter dryer (10) Compressor (11) Fan (12) Wet lm
humidier (optional)
(13) User wiring
terminal
(14) T/H sensor (15) Dierential
pressure switch
(16) Main control
module
(17) Integrated
variable-frequency
drive
(18) Indoor fan drive
