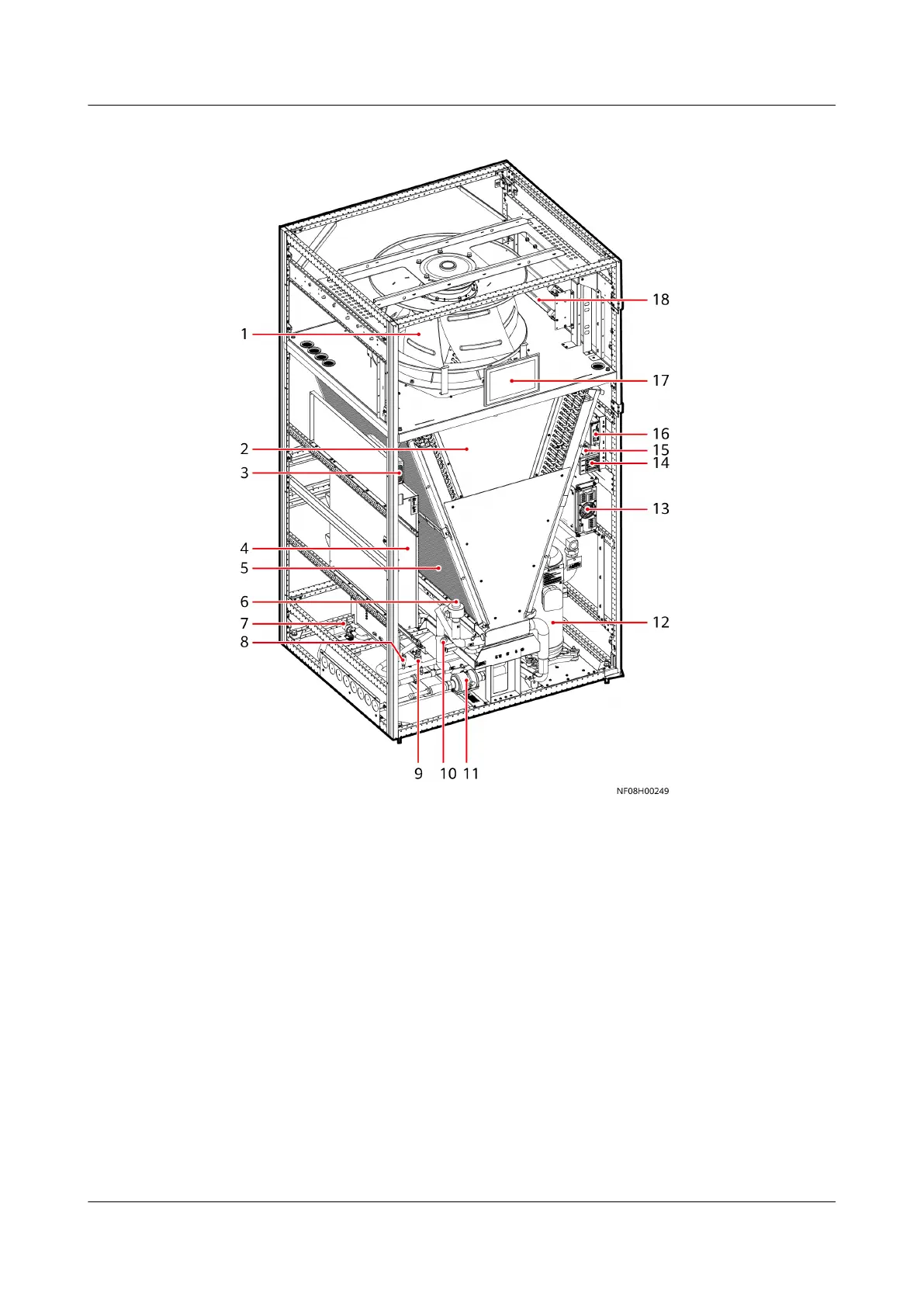

Figure 2-14 NetCol8000-A060U components
(1) Fan (2) Evaporator (3) Indoor fan drive (4) Electric control box
(5) Air lter (6) EEV (7) Water inlet
solenoid valve
(optional)
(8) High pressure
switch
(9) Discharge pressure
sensor
(10) Sight glass (11) Filter dryer (12) Compressor
(13) Integrated
variable-frequency
drive
(14) User wiring
terminal
(15) T/H sensor (16) Main control
module
(17) Display module (18) Electric heater
(optional)
