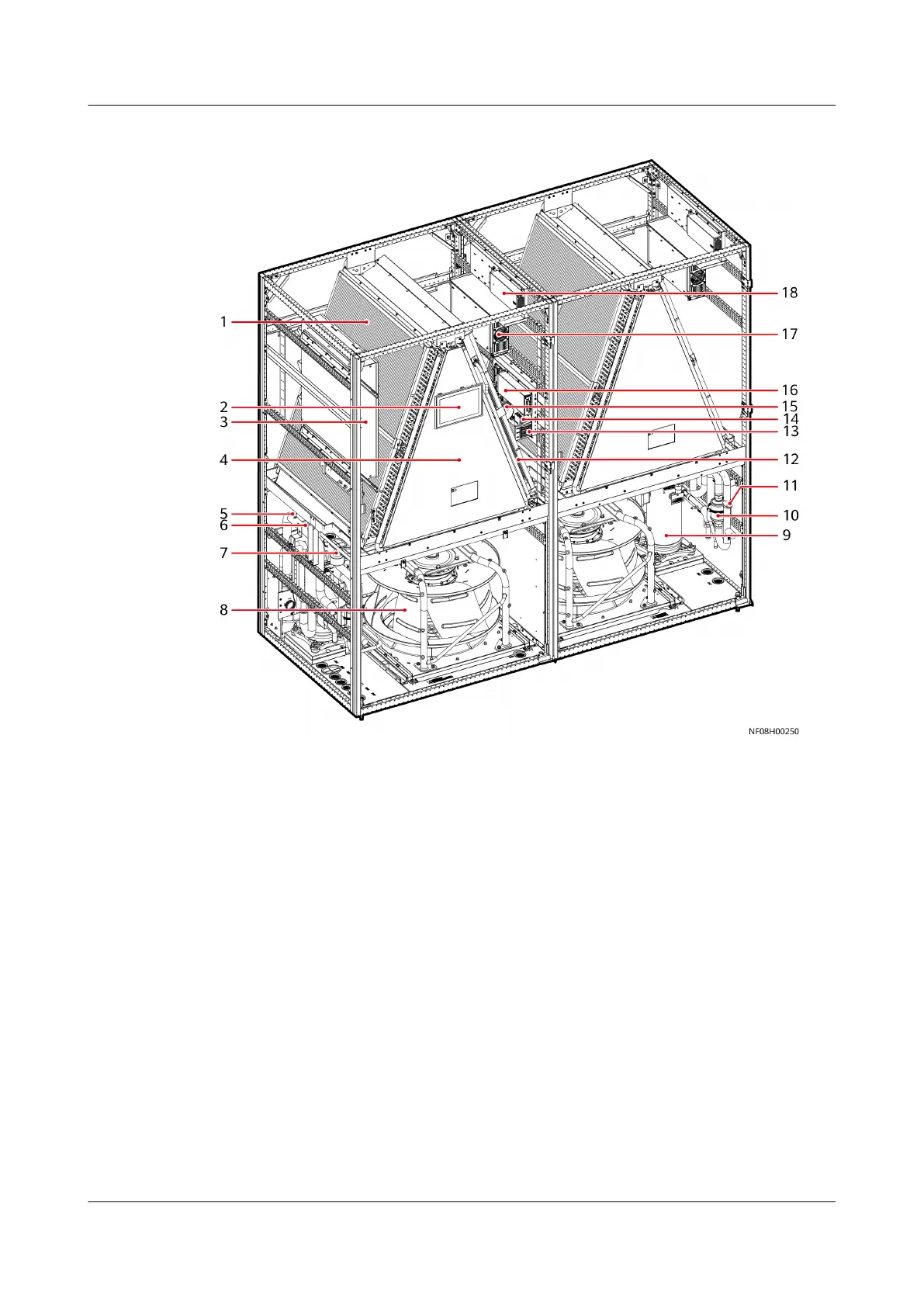

Figure 2-15 NetCol8000-A120D components
(1) Air lter (2) Display module (3) Electric control box (4) Evaporator
(5) High pressure
switch
(6) Discharge pressure
sensor
(7) EEV (8) Fan
(9) Compressor (10) Filter dryer (11) Sight glass (12) Wet lm
humidier (optional)
(13) User wiring
terminal
(14) T/H sensor (15) Dierential
pressure switch
(16) Main control
module
(17) Integrated
variable-frequency
drive
(18) Indoor fan drive
The smart cooling product consists of the compressor, EC fan, evaporator, EEV, oil
separator, sight glass, lter dryer, air lter, wet lm humidier (optional), electric
heater (optional), check valve,
dierential pressure switch, dierential pressure
sensor (optional), and T/H sensor.
● Compressor
– The NetCol8000-A uses a DC inverter compressor that features compact
size, light weight, a long service life, low noise, easy installation as well as
high reliability, stability, and energy
eciency.
