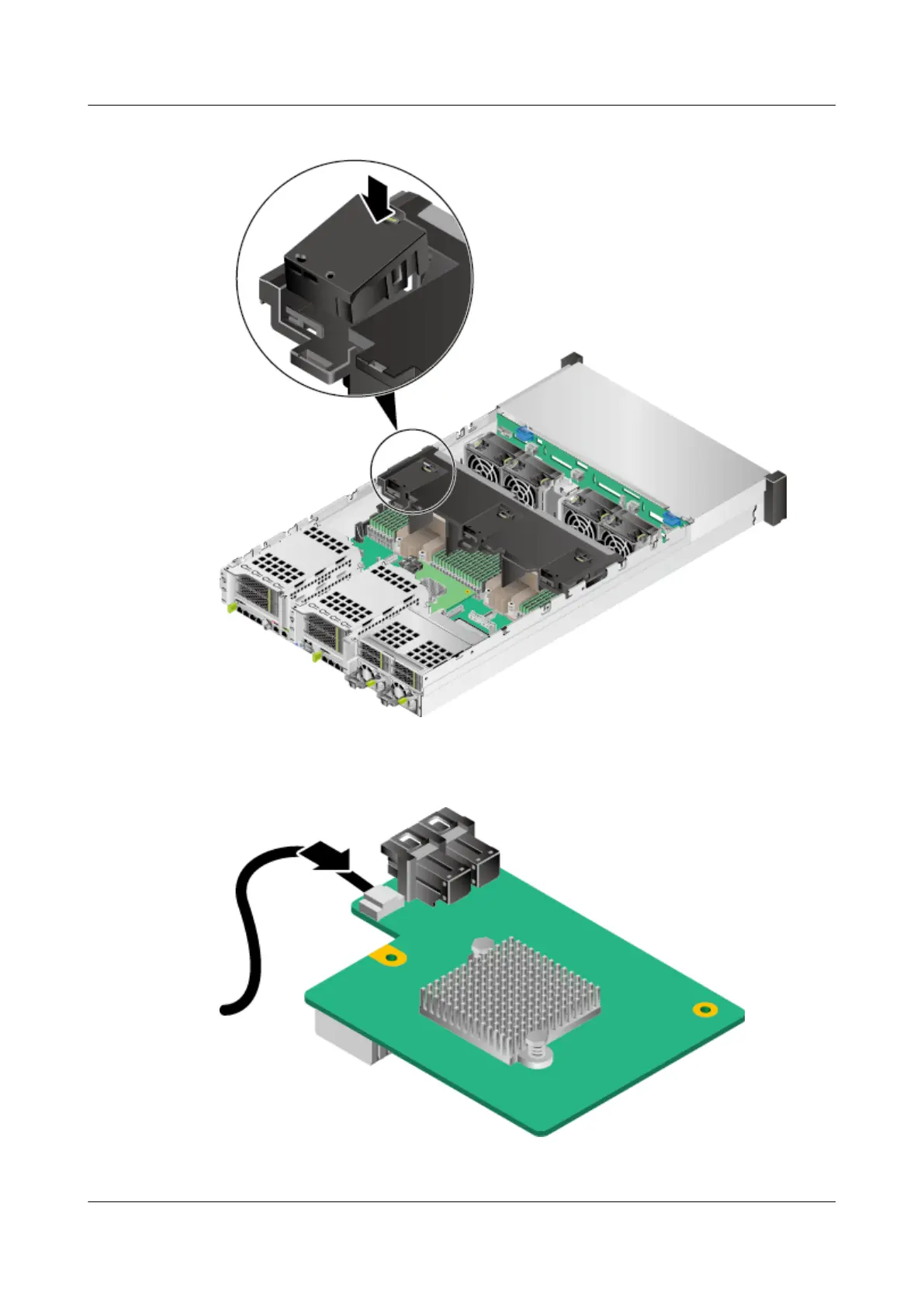

Figure 5-14 Installing a supercapacitor tray
Step 9 Connect the cable of the supercapacitor to the RAID controller card. See Figure 5-15.
Figure 5-15 Connecting the supercapacitor cable
Step 10 Install the chassis cover. For details, see 3.7 Installing the Chassis Cover.
TaiShan 2280 V2 Server
User Guide
5 Optional Part Installation
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 95
