Huawei TaiShan 2280 V2 User Manual

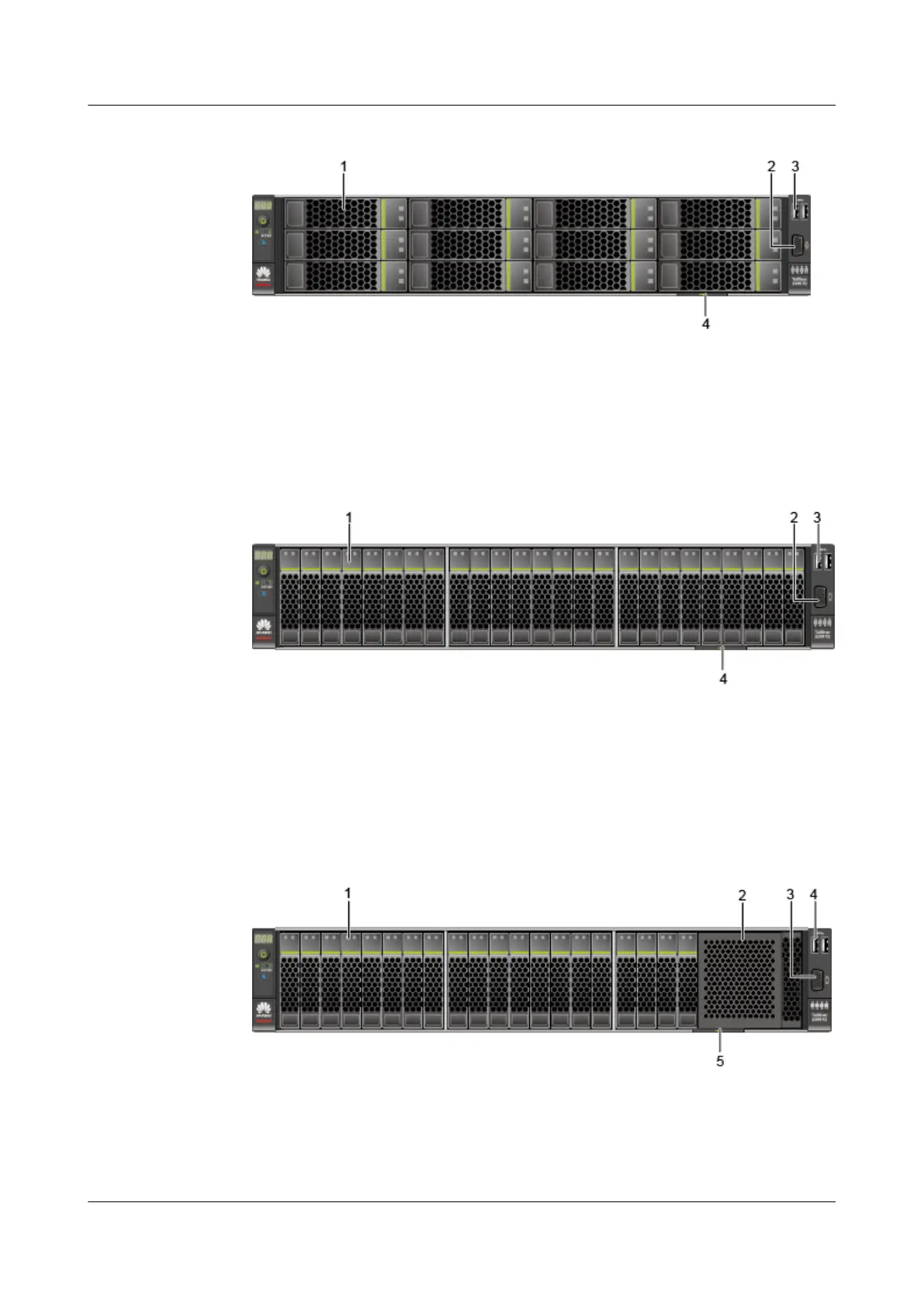

Figure 2-1 Components on the front panel of a server with 12 x 3.5-inch drives
1 Drive 2 VGA port
3 USB 3.0 port 4 Label plate with an SN label
l Figure 2-2 shows the components on the front panel of a server with 25 x 2.5-inch
drives.
Figure 2-2 Components on the front panel of a server with 25 x 2.5-inch drives
1 Drive 2 VGA port
3 USB 3.0 port 4 Label plate with an SN label
l Figure 2-3 shows the components on the front panel of a server with 8 x 2.5-inch SAS/
SATA drives and 12 x 2.5-inch NVMe SSDs.
Figure 2-3 Components on the front panel of a server with 8 x 2.5-inch SAS/SATA
drives and 12 x 2.5-inch NVMe SSDs
1 Drive 2 Filler panel
3 VGA port 4 USB 3.0 port
5 Label plate with an SN label - -
TaiShan 2280 V2 Server
User Guide
2 Components
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 3
