Huawei TaiShan 2280 V2 User Manual

Front Drive Backplane SAS Signal Cabling for a Server with a Screw-in RAID
Controller Card

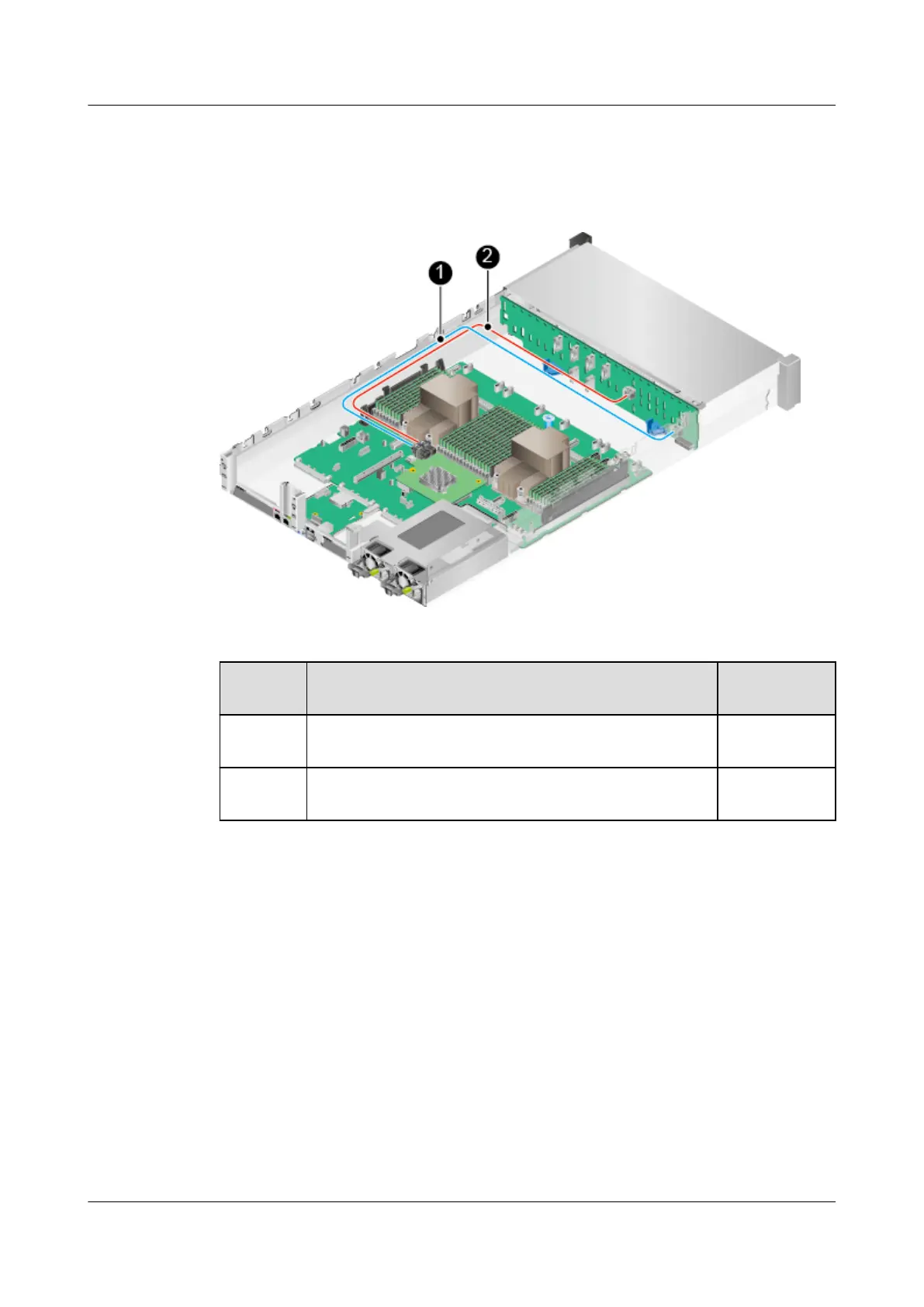

Figure 7-16 Front drive backplane SAS signal cabling
Table 7-16 Front drive backplane SAS signal cabling
No.
Description Huawei Part
Number
1 SAS cable for connecting PORT A (J15) of the front drive
backplane to PORT A of the RAID controller card
04051916-015
2 SAS cable for connecting PORT B (J16) of the front drive
backplane to PORT B of the RAID controller card
04051916-015
TaiShan 2280 V2 Server
User Guide
7 Internal Cabling
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 125
