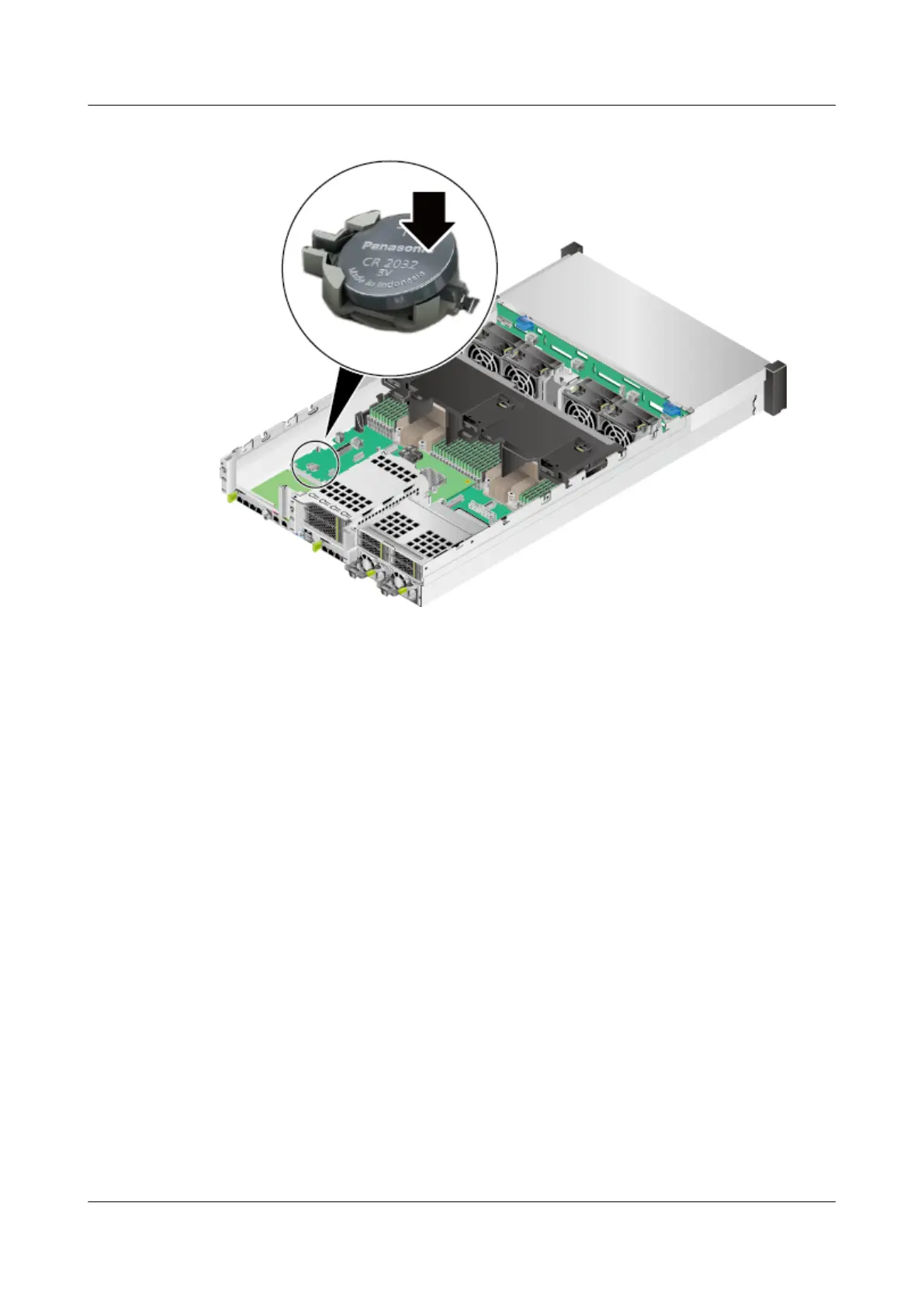

Figure 10-4 Installing the battery
Step 9 Install the drive module or the riser module above the battery. For details about how to install
the drive module, see 5.11.1-2 x 3.5-inch Rear Drive Assembly. For details about how to
install the riser module, see 3.13-Installing a Riser Card Tray.
Step 10 Install the chassis cover. For details, see 3.7 Installing the Chassis Cover.
Step 11 Install the server. For details, see 4.4 Installing the Server on Guide Rails.
Step 12 Connect the power cables. For details, see 3.5 Connecting Cables to a PSU.
Step 13 Power on the server. For details, see 3.1 Powering On the Server.
----End
TaiShan 2280 V2 Server
User Guide
10 Battery
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 136
